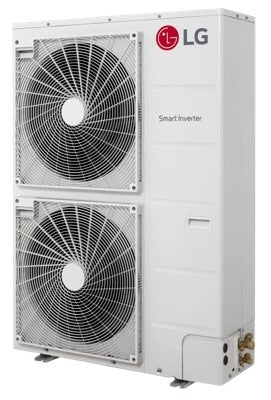

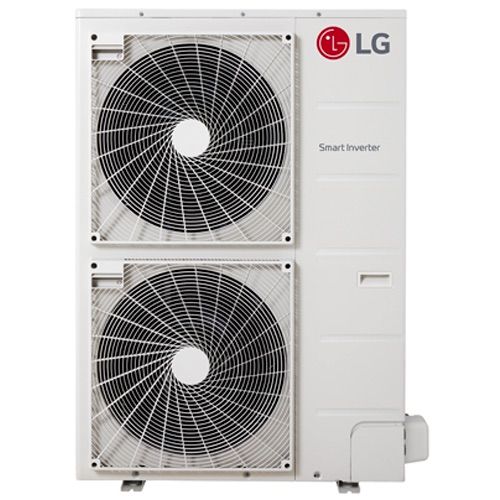

LG KUSXB601A Multi F MAX Outdoor Condenser 60k BTU R-32

Product Description

The LG KUSXB601A Multi F MAX series outdoor condenser is designed for efficient heating and cooling in mini split systems. With advanced inverter technology, it supports up to eight separate control zones, ensuring optimal climate control for diverse environments.

• Utilizes inverter technology for precise refrigerant flow regulation.
• Compatible with multiple indoor units for flexibility.
• Achieves low ambient operation at temperatures as low as -4 degrees Fahrenheit.

Product Highlights

Features gold fin protection that enhances corrosion resistance and durability.

Product Information

Standard Information

• Type: Outdoor Condenser
• Product Line: Multi F MAX

Technical Specifications

• Operating Mode: Heating and Cooling
• Maximum Number of Zones: 8
• Refrigerant Type: R-32
• Cooling BTU: 60000
• Heating Capacity: 64000 BTU/hr
• Minimum Outdoor Temperature for Heating: -4 F
• Cooling Capacity: 56000 BTU/hr
• Voltage: 208/230 Volts
• Maximum Sound Level: 58 dB
• Product Height: 54.35 Inches
• Product Width: 37.40 Inches
• Product Depth: 13 Inches
• Product Weight: 218.3 Pounds
• Energy Star Listed: Yes
• Parts Warranty: 5 Years
• Compressor Warranty: 7 Years
