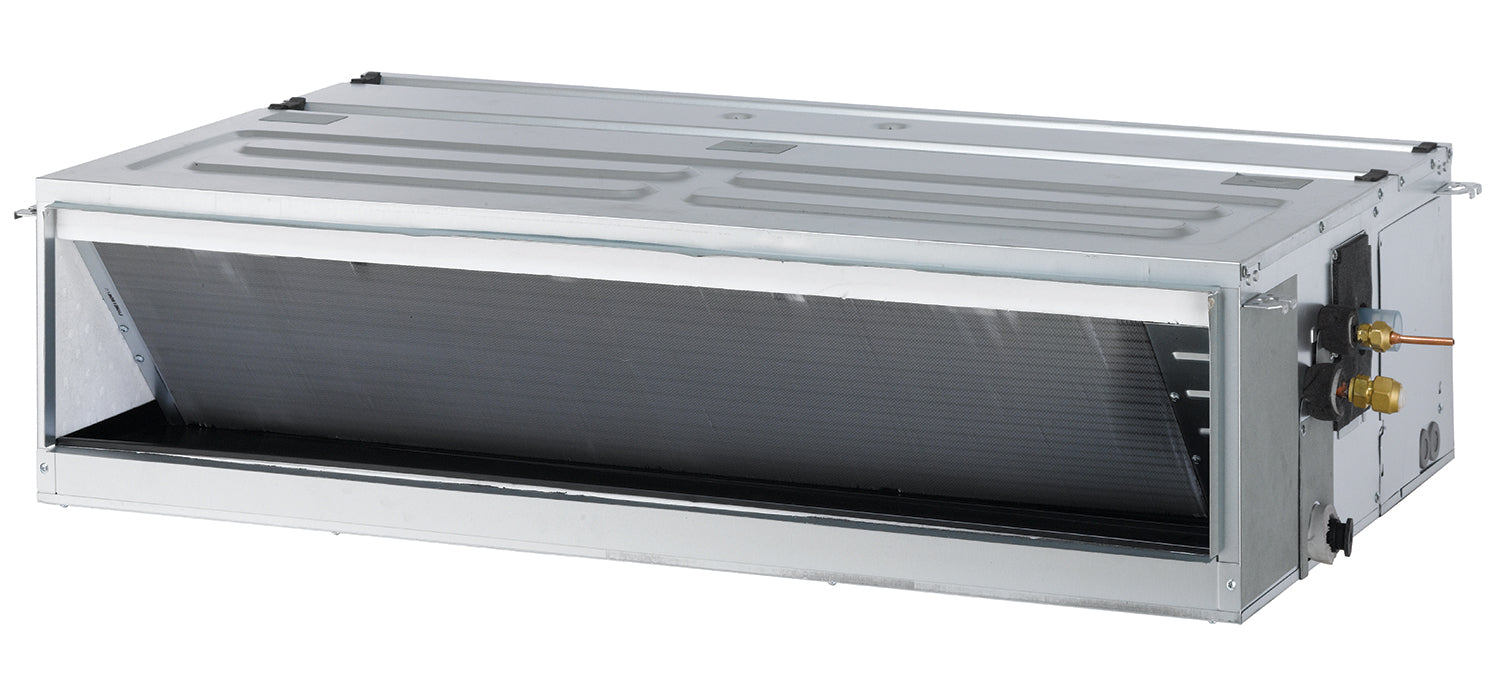

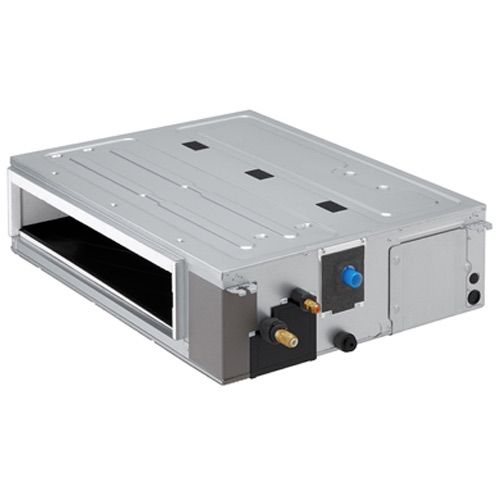

LG KNUJB241A Mid Static Concealed Duct Unit 24k BTU

Product Description

The LG KNUJB241A is a mini split indoor unit designed specifically for installation in short-run ducting with mid static pressures. This concealed duct unit allows for the creation of mini split zones without any visible indoor units, making it ideal for both residential and commercial applications. It operates quietly at sound levels as low as thirty dB due to its advanced fan motor technology. Additionally, it includes an anti-fungal filter that helps maintain clean air quality.

• Designed for installation in short-run ducting.
• Operates quietly at low sound levels of thirty dB.
• Features an anti-fungal filter for improved air quality.

Product Highlights

This unit combines efficiency and performance, offering a range of capabilities suitable for various environments.

Product Information

Standard Information

• Type: Concealed Duct
• Product Line: Multi F

Technical Specifications

• Product Sub-line: Mid-Static Ducted
• Product Category: Mini Split System Components
• Operating Mode: Heating and Cooling
• Multi-Zone Compatible: Yes
• Refrigerant Type: R-32
• Indoor Unit Size: 24
• Cooling BTU: 24000
• Cooling Capacity: 23000 Btu/hr
• Heating Capacity: 27000 Btu/hr
• Moisture Removal: 4.23 Pints/Hour
• Maximum Air Flow: 706 CFM
• Minimum Air Flow: 459 CFM
• Minimum Sound Level: 30 dB
• Maximum Sound Level: 38 dB
• Voltage: 208/230 Volts
• Phase: 1
• Frequency: 60 Hz
• Gas Connection Size: 5/8 Inch
• Liquid Connection Size: 3/8 Inch
• Product Height: 9.79 Inches
• Product Width: 35.56 Inches
• Product Depth: 24.375 Inches
• Product Weight: 64.2 Pounds
• Shipping Weight: 74.3 Pounds
• CSA Listed: Yes
• AHRI Certified: Yes
• Parts Warranty: 5 Years
• EER2: 11.8
• Energy Star Rated: Yes
• Product Type: Indoor Unit
• SEER2: 17
• Compressor Type: Variable Speed
• Flow Rate: 706 CFM
• Mounting Type: Wall
• Nominal Capacity: 2 ton
• Power Source: 208 to 230 V 1 ph 60 Hz
• Series: Multi F
• Sound Level: 38 dB
• Suction Line Size: 5/8 in
• Temperature Rating: Cooling: 57 to 77/Heating: 59 to 81 deg F
