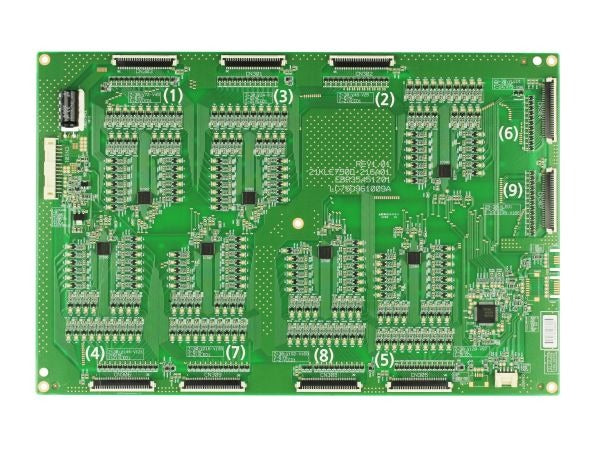

Lg ebr35451201 Tv Led Driver Board

Product Description

The LG ebr35451201 is an internal LED driver board designed for flat-panel televisions that use LED backlighting. It converts low-voltage DC from the power supply into a controlled, regulated current delivered to the LED array. This regulated output maintains consistent brightness and even illumination across the display panel. Integrated driver circuitry on the board responds to control signals to adjust output as needed. The board mounts inside the TV chassis, typically in the backlight circuit area, and connects to the wiring harness and LED strips. Installation is typically performed by qualified electronics repair technicians.

This LED driver board is used in flat-panel LED-backlit televisions. It sits between the power supply and the LED backlight strips, managing current delivery to stabilize backlight performance and support overall picture quality. It is suited for residential consumer television repair applications where the original driver board has failed or been damaged.

Key Features

• Converts low-voltage DC input to regulated current output for LED arrays
• Integrated driver circuitry responds to control signals for dynamic brightness adjustment
• Designed to mount inside the TV chassis near the LED backlight circuit
• Connects directly to the wiring harness and LED backlight strips
• Supports stable backlight performance and consistent picture illumination

Compatibility

Designed as an OEM-style replacement LED driver board for LG flat-panel LED-backlit televisions.

Installation Notes

Installation should be performed by a qualified electronics repair technician familiar with flat-panel television servicing. Always disconnect the television from AC power and allow capacitors to discharge fully before opening the chassis or handling internal boards. Handle the board by its edges to avoid damage from electrostatic discharge, and use proper ESD precautions throughout the repair process. Reconnect all wiring harness connectors and LED strip connections securely before reassembling the chassis.
