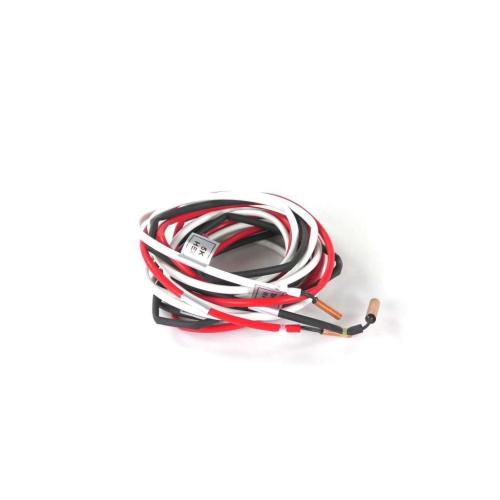

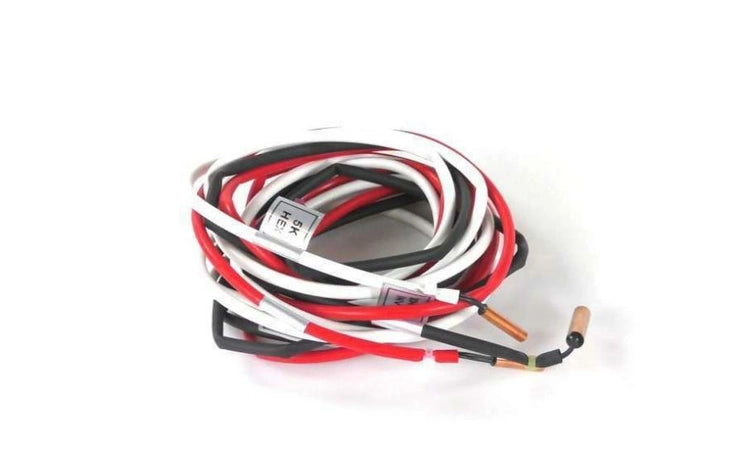

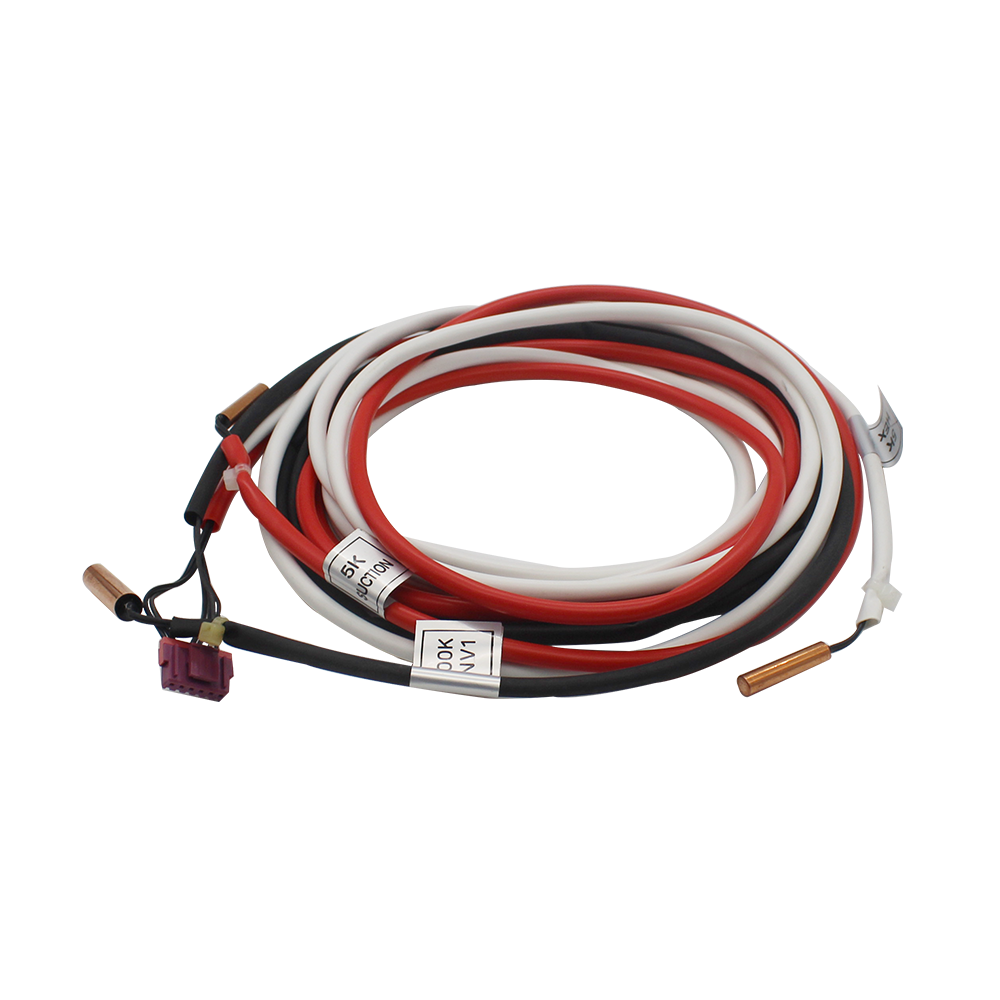

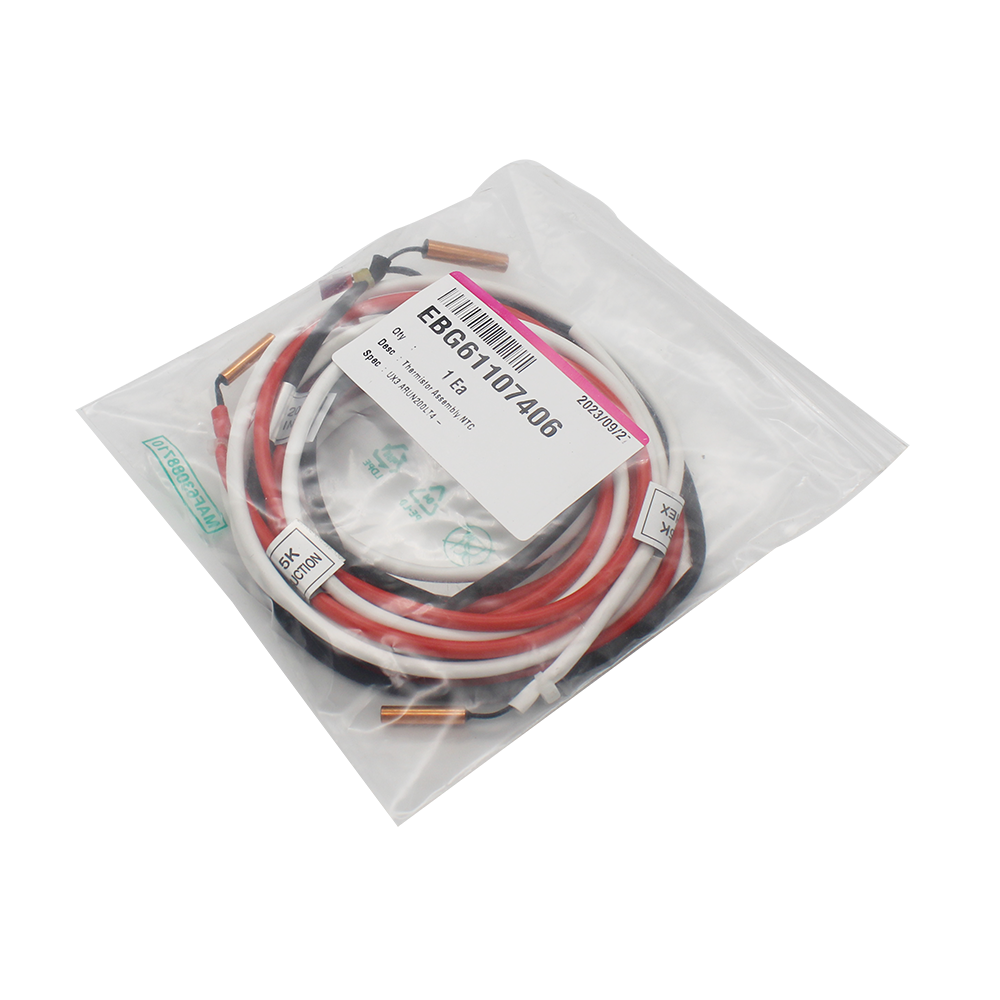

Lg EBG61107406 thermistor assembly NTC

Product Description

The LG EBG61107406 thermistor assembly is designed for LG Multi V O/D units, ensuring optimal performance and reliability. This OEM certified thermistor assembly offers precise temperature sensing and durable construction. It is a direct OEM replacement specifically designed for the LG Multi-V ARUN200LT4 outdoor unit.

• OEM certified
• Designed for LG Multi V O/D units
• Ensuring optimal performance and reliability

Product Highlights

The EBG61107406 thermistor assembly is an OEM replacement for LG Multi-V ARUN200LT4 units, offering precise temperature sensing and durable construction.

Product Information

Standard Information

• Brand: LG
• Manufacturer Part Number: EBG61107406

Technical Specifications

• Manufacturer: LG Appliances
• Manufacturer #: EBG61107406
• Parts Town #: LGAPEBG61107406
• Units: Each
• Length: 1 in / 2.54 cm
• Width: 1 in / 2.54 cm
• Height: 1 in / 2.54 cm
• Spec Name: UX3 ARUN200LT4
• Resistance @ 25 00b0C: 10kΩ ±1%
• Temp Range: -40°C to +125°C
• Connector Type: LG proprietary 2-pin lock
• Housing Material: UV-resistant ABS + silicone seal
• Resistor Element: High-purity nickel-manganese-cobalt oxide, calibrated to ±1%
• Wire Insulation: Flame-retardant, high-temp silicone (rated to 150°C)
• Connector Design: Locking, sealed, IP67-rated, keyed to prevent reverse insertion
• Thermal Response Time: ≤ 3 seconds to reach 90% of final value
• Expected Lifespan: 5–8 years under normal outdoor conditions
