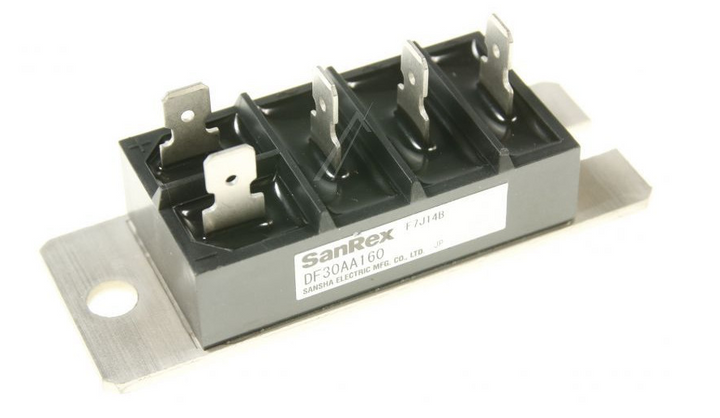

Lg eah37374701 Air Conditioner Diode Bridge

Product Description

The LG eah37374701 is a diode bridge rectifier designed for use in air conditioner power supply circuitry. It converts alternating current (AC) into direct current (DC), providing a unidirectional output to downstream regulation and control components. The part mounts on the power supply board, positioned at the AC input stage ahead of main filtering and regulation components. Licensed technicians working on LG air conditioning equipment rely on this component to restore stable DC voltage to control electronics, regulation stages, and display power sections when the original rectifier has failed or become degraded.

This diode bridge is intended for use in LG air conditioning systems where the power supply board requires rectification of the incoming AC line voltage. It is typically encountered in split-system and packaged AC units during power board diagnostics and repair. Replacement is appropriate when testing reveals a shorted or open diode junction, abnormal output voltage, or visible heat damage to the existing rectifier on the board.

Key Features

• Converts AC input to DC output for air conditioner power supply board operation
• Internal diode arrangement produces stable unidirectional current flow
• Supports downstream circuits including regulation stages, control electronics, and display power sections
• OEM part number ensures direct fitment to compatible LG power supply boards

Compatibility

Designed as an OEM-style replacement diode bridge for compatible LG air conditioner power supply boards. No additional model-specific compatibility data was provided with this listing.

Installation Notes

Installation should be performed by a qualified HVAC technician or licensed electrician familiar with air conditioner power electronics. Disconnect and lock out all power to the unit before removing the power supply board or handling any electrical components. Allow capacitors on the power supply board to fully discharge before touching any board components, as stored charge can present a serious shock hazard. Follow applicable NEC guidelines and local electrical codes when servicing air conditioning power circuits.
