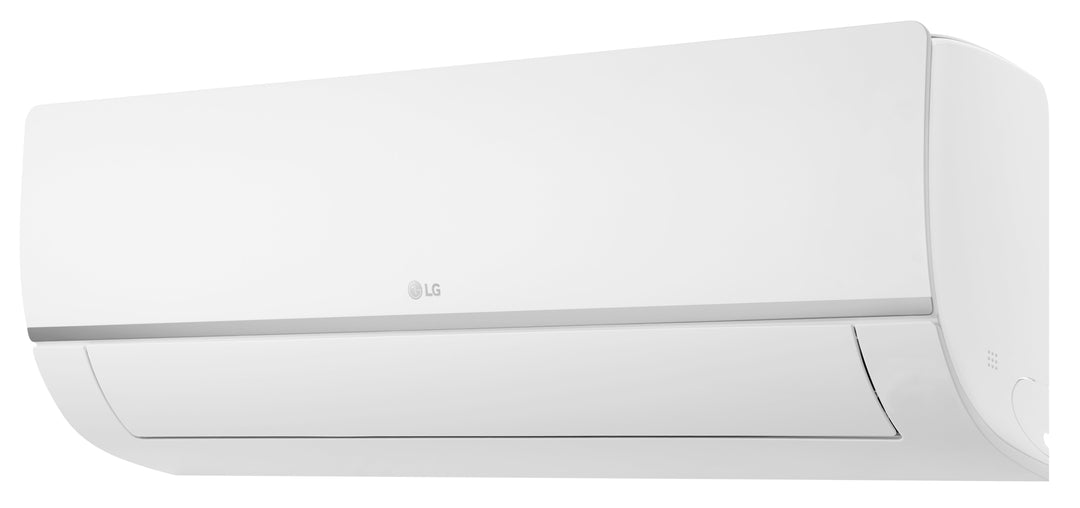

Lg ARNU123SJA4 Multi V Standard Wall Mounted Unit 12,300 Btu/h replaces ARNU123SBR4, ARNU123SBL4, ARNU123SEL2

Product Description

The LG ARNU123SJA4 Multi V Standard Wall Mounted Unit with 12,300 Btu/h cooling capacity is AHRI Standard 1230 certified. It features auto restart, dual thermistor control and multiple auxiliary heater applications. This unit is also Wi-Fi compatible. The LG ARNU123SJA4 replaces ARNU123SBR4, ARNU123SBL4, ARNU123SJA4, ARNU123SEL2.

• 12,300 Btu/h cooling capacity
• Auto restart and auto operation
• Wi-Fi compatible

Product Highlights

The LG ARNU123SJA4 is a Multi V standard wall mounted unit with 12,300 Btu/h cooling capacity, auto restart, and Wi-Fi compatibility.

Product Information

Standard Information

• Brand: LG
• Manufacturer Part Number: ARNU123SJA4

Technical Specifications

• Brand: LG
• Model: ARNU123SJA4
• Product Name: Multi VTM Standard Wall Mounted Unit
• Cooling Capacity: 12000 BTU/Hour
• Heating Capacity: 13600 BTU/Hour
• Electrical: 208-230V, 60Hz, 1 phase
• Refrigerant Type: R410A
• Sound Pressure Level: 37 dB(A) on High, 34 dB(A) on Medium, 30 dB(A) on Low
• Primary Filter Type: Washable
• Refrigerant Liquid Line (in., O.D.): 1/4 Flare
• Vapor Line (in., O.D.): 1/2 Flare
• Condensate Line (in., I.D.): 5/8
• Factory Installed Pump: No
• Refrigerant Control: EEV
• Sound Pressure dB(A) (H/M/L): 37 / 34 / 30
• Fan Type: Cross Flow
• Fan Quantity: 1
• Motor/Drive: Brushless Digitally Controlled/Direct
• Motor Quantity: 1
• Air Flow Rate H/M/L (CFM): 300 / 254 /240
• Manufacturer Part Number: ARNU123SJA4
• Number Of Phases: 1
• Series/Model: ARN
• Voltage Rating: 208 to 230 Volt AC
• Current Rating: 0.31 Amp (MCA), 15 Amp (MOP), 0.25 Amp (Rated)
• Frequency Rating: 60 Hertz
• Power Rating: 30 Watt (Cooling/Heating)
• Installation: Wall Mount
• Approval: CSA (Canada and US)
• Air Flow Rating: 300/254/240 CFM
• Frame Type: SJ
• Motor/Drive Type: Brushless Digitally Controlled/Direct
• Sound Pressure Rating: 37 Decibel
• Applicable Standard: AHRI
• Replaces: ARNU123SBR4, ARNU123SBL4, ARNU123SJA4, ARNU123SEL2
• Unit Type: Indoor Unit - Evaporator
• Tonnage: 1 Ton
