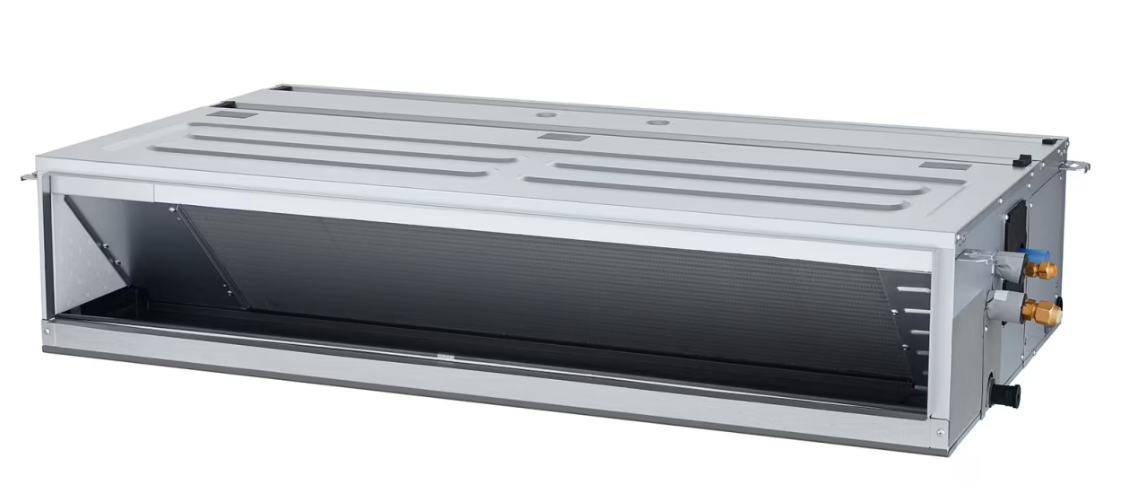

Lg ARNU123M2A4 Multi V High Static Ducted Indoor 12,000 Btu/hr (Replaces ARNU123BGA4)

Product Description

The Lg ARNU123M2A4 is a 4th generation Multi V high-static ducted indoor VRF evaporator unit for Multi V systems. It provides 12,000 Btu/hr cooling and 13,600 Btu/hr heating, operates on 208–230 V single-phase 60 Hz, and uses R-410A refrigerant. Airflow options are 363, 435, and 520 cfm; a brushless digitally controlled direct-drive motor supports operation with sound levels around 52–53 dBA.

• High-static ducted indoor VRF evaporator, 4th generation Multi V technology
• Cooling 12,000 Btu/hr and heating 13,600 Btu/hr; airflow 363 / 435 / 520 cfm
• Operates on 208–230 V, 1 ph, 60 Hz; uses R-410A; brushless digitally controlled direct-drive motor; ~52–53 dBA

Product Highlights

4th generation Multi V high-static ducted indoor VRF; 12,000 Btu/hr cooling; 208–230 V single-phase; replaces ARNU123BGA4

Product Information

Standard Information

• Brand: LG
• Manufacturer Part Number: ARNU123M2A4
• Country of Origin: USA

Technical Specifications

• Brand: LG
• Manufacturer: LG Electronics
• MPN: ARNU123M2A4
• Product Type: Multi V ducted (high static) indoor VRF evaporator unit
• Generation: 4th Gen
• Cooling Capacity: 12,000 Btu/hr
• Heating Capacity: 13,600 Btu/hr
• Input Voltage: 208-230 V, 1 ph, 60 Hz
• Refrigerant Type: R-410A
• Airflow: 363 / 435 / 520 cfm
• Motor Type: Brushless digitally controlled direct drive
• Sound Level: 52-53 dBA
• Replaces: ARNU123BGA4
• Replaces (obsolete): ARNU123BHA2
• Mounting Type: Ducted
• Application: Indoor
