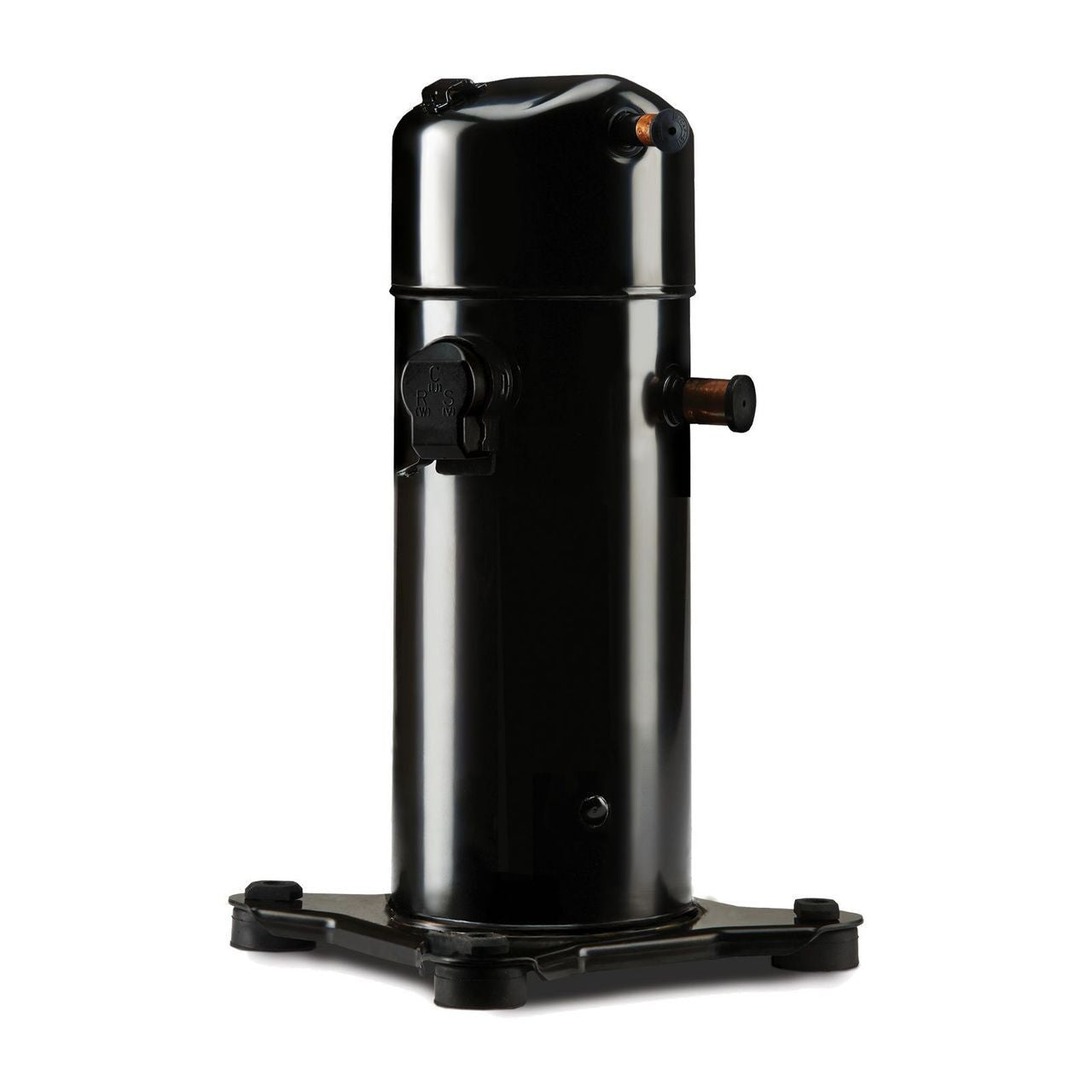

LG AQA038KAB Factory Authorized Parts - Scroll Compressor R-410A

Product Description

LG AQA038KAB is a scroll compressor designed for use with R-410A refrigerant. This unit is suitable for various heating and cooling applications, offering an efficient and reliable solution for HVAC systems. It operates with low noise and vibration, making it ideal for residential and commercial settings.

• Compatible with R-410A refrigerant
• High efficiency and reliability
• Compact design for easy installation

Product Highlights

The AQA038KAB scroll compressor is thermally protected, ensuring it operates safely under various conditions. Its lightweight and compact design allows for straightforward installation in tight spaces. Suitable for heat pumps and air conditioning systems.

Product Information

Standard Information

• Brand: LG
• Part Number: AQA038KAB

Technical Specifications

• Weight: 68 lbs
• Amps: 16.5
• BTU Output: 37,700
• Compressor Type: Scroll
• Voltage: 208-230 VAC
• Refrigerant: R-410A
• Compressor Housing: Hermetic
• Phase: Single
• Height: 22 inches
• Length: 10.5 inches
• Width: 11 inches
• Mounting Dimensions: 7.5 x 7.5 inches
• Suction Line Size (OD): 7/8 inches
• Discharge Connection Size OD: 1/2 inches
• Locked Rotor Amps (LRA): 96
• Rated Load Amps (RLA): 16.5
• Oil Type: Polyolester (POE)
• Oil Charge Initial: 43.3 oz
• Condensing Temperature: 129.92°F (54.4°C)
