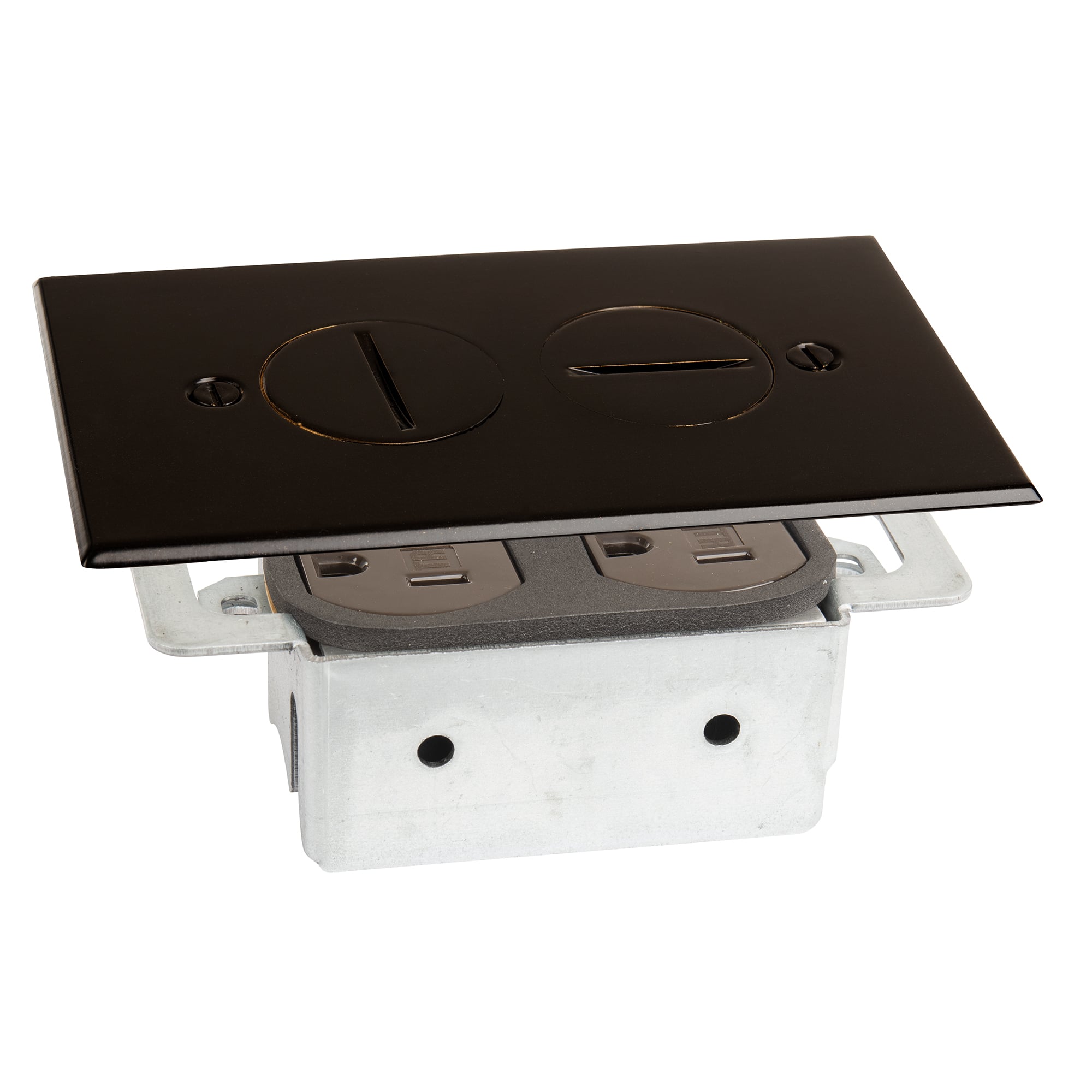

Lew Electric RRP-2-DB Duplex Floor Plate Assembly (No Box) 15A (4-5/8 x 2-7/8) RRP-2-DBR

Product Description

The Lew Electric RRP-2-DB is a drop-in floor plate assembly (no box) with an attached UL-listed 15A tamper-resistant duplex receptacle. A watertight gasket surrounds the receptacle and a neoprene gasket under the cover prevents spills; the cover includes two 1-1/4" watertight close-up plugs. An included adjusting sleeve accommodates finished floor depths up to 3/4" when used with a standard single gang outlet box. Meets NEMA WD1-1983.

• Attached UL-recognized 15A tamper-resistant duplex receptacle with surrounding watertight gasket and neoprene gasket under cover
• Drop-in plate assembly (no box) with adjustable sleeve to accommodate finished floor depths up to 3/4" for use with a standard single gang outlet box
• Cover includes two 1-1/4" watertight close-up plugs; screw-plug rectangular cover (4 5/8" x 2 7/8") and meets NEMA WD1-1983

Product Highlights

15A tamper-resistant duplex; adjustable sleeve to 3/4"; watertight gaskets and two close-up plugs; replacement cover RRP-2-DBR

Product Information

Standard Information

• Brand: LEW ELECTRIC
• Manufacturer Part Number: RRP-2-DB

Technical Specifications

• Brand: Lew Electric
• MPN: RRP-2-DB
• Product Type: Drop-in floor plate assembly (no box)
• Product Family: POWERDEN Residential Floor Boxes, RRP Series Cover Assemblies
• Receptacle Included: Duplex 15A tamper-resistant

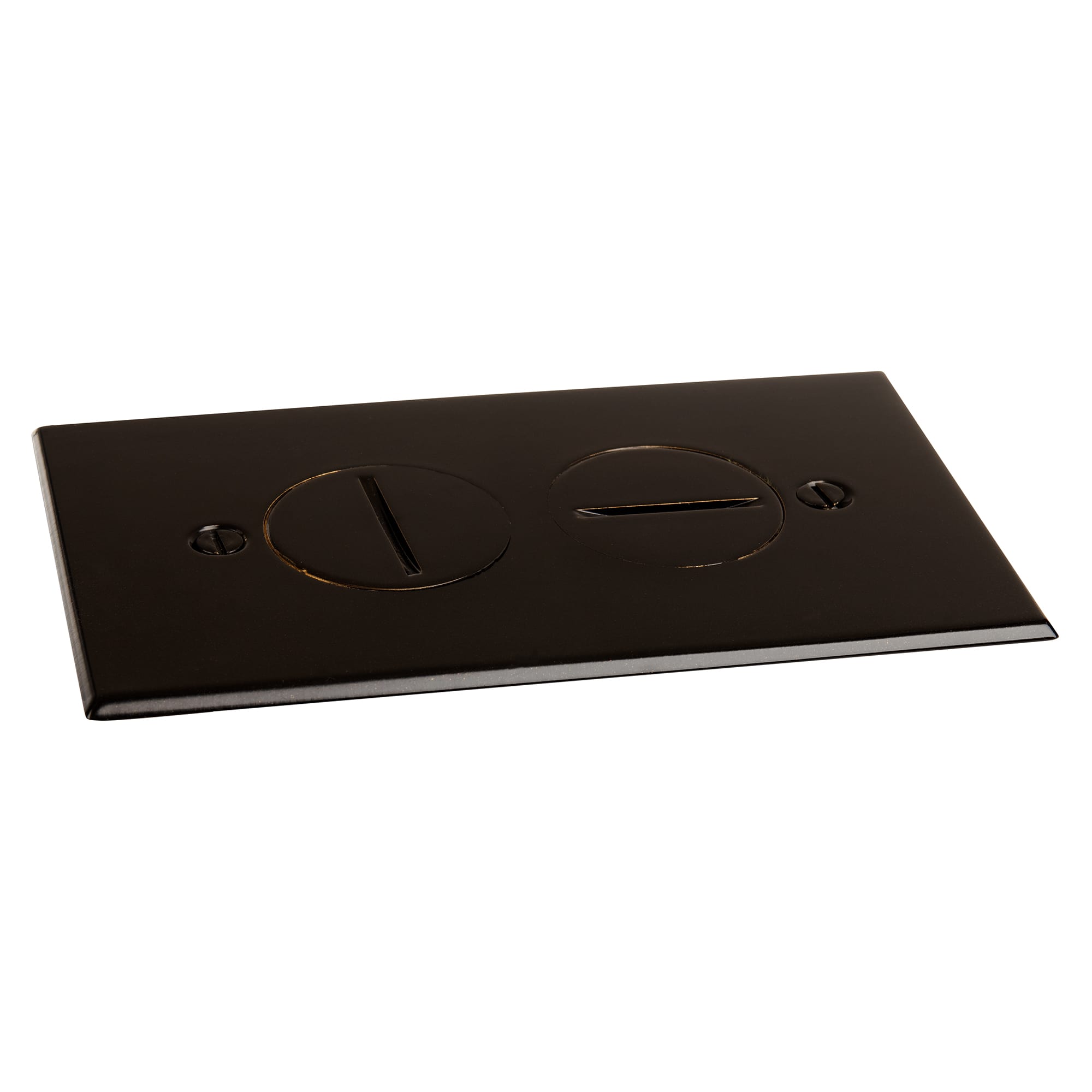

• Cover Type: Screw-plug
• Cover Shape: Rectangular
• Cover Size: 4 5/8" x 2 7/8"
• Cutout Size: Cannot exceed 2 1/8" x 3 1/2"
• Adjustable Sleeve: Accommodates finished floor depths up to 3/4"
• Back Box: Not included; use with standard single gang outlet box
• Gaskets: Watertight gasket around receptacle; 1/16" neoprene gasket under cover
• Close-up Plugs: Two 1-1/4" watertight close-up plugs
• Mounting: Drop-in style; may be attached to floor or recessed up to 3/4"
• Finish Floor Type: Carpet, Tile, Wood
• Finish: 1/8" dark bronze
• Replacement Cover: RRP-2-DBR
• Replacement Plug: 6212-DB
• Certifications: UL recognition E309821; Meets NEMA WD1-1983 heavy duty requirement
• Includes: Plate screws
