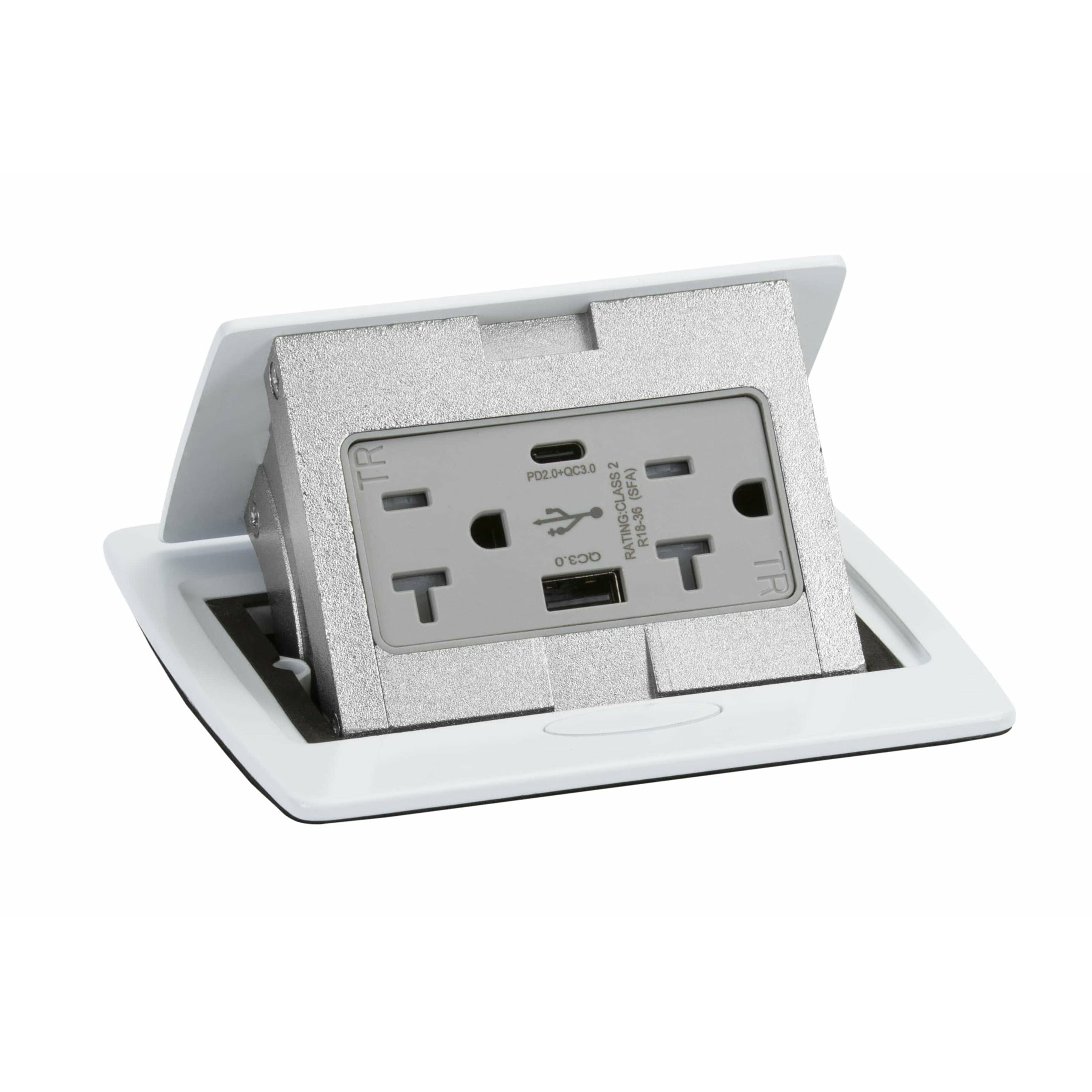

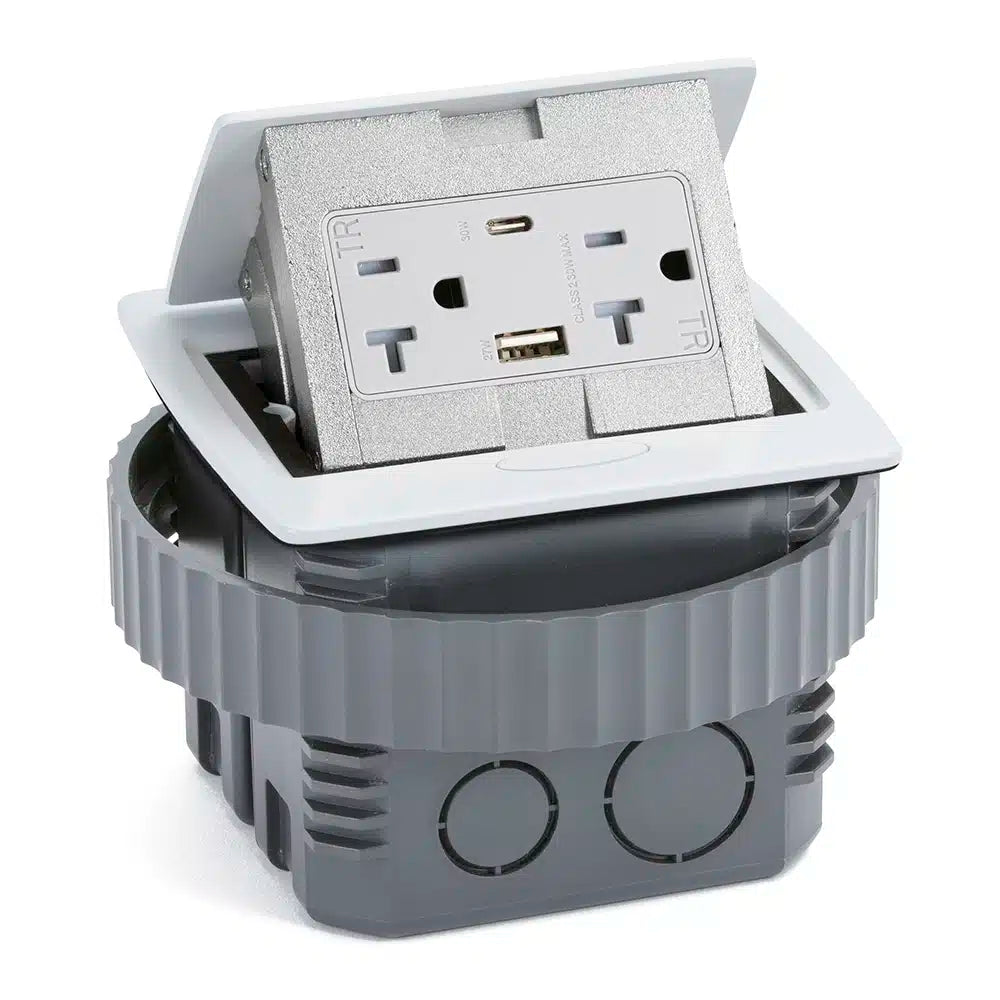

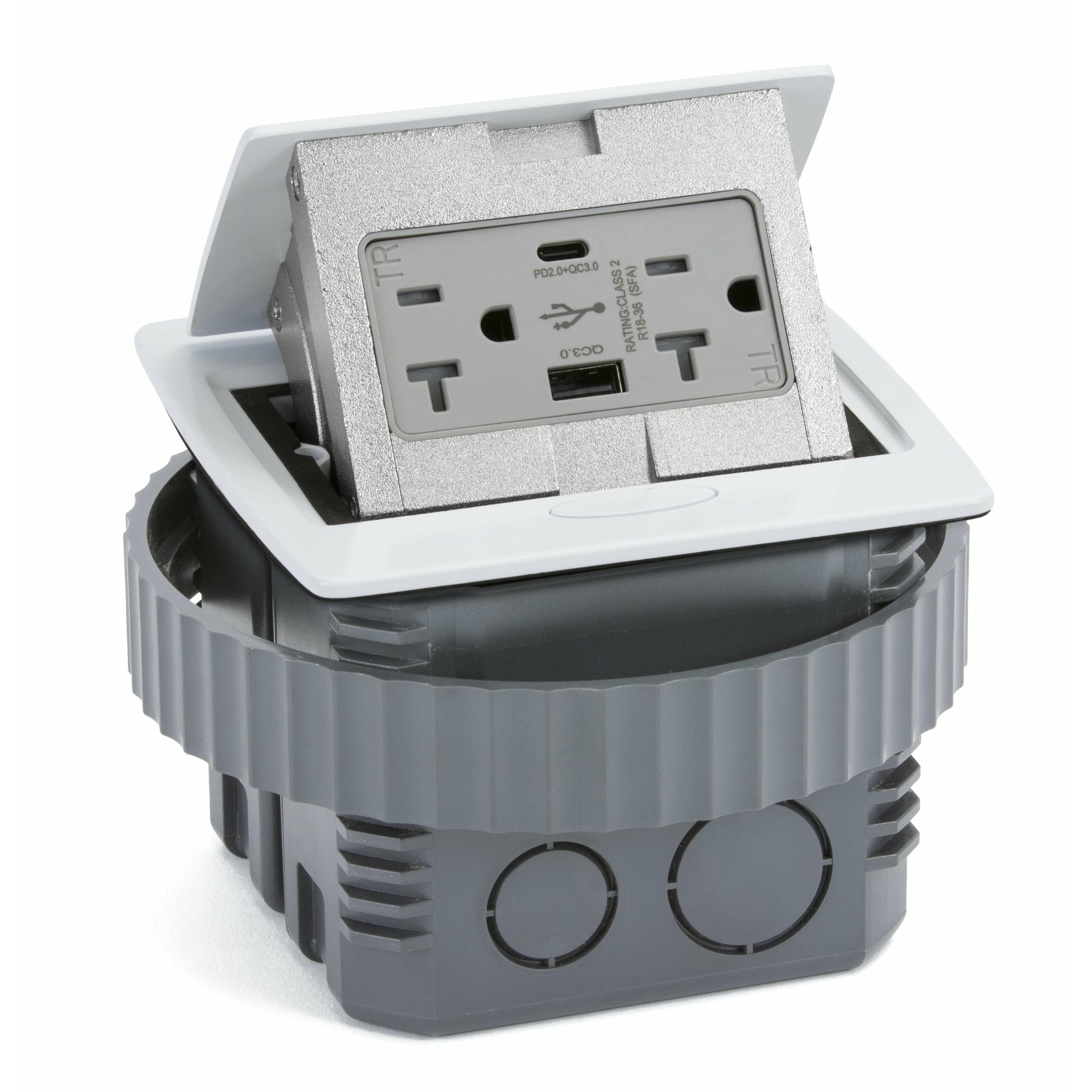

Lew Electric PUFP-CT-WT-AC-PB Kitchen Countertop Pop-Up Outlet 20A (4-1/8 inches x 4-1/8 inches Cutout)

Product Description

Lew Electric PUFP-CT-WT-AC-PB is a recessed kitchen countertop pop-up power assembly that provides two tamper-resistant 20A duplex receptacles plus integrated USB-A and USB-C intelligent charging ports. The unit installs in a 4-1/8" x 4-1/8" cutout, fits countertops up to 1.9" thick, and includes a plastic back box with threaded lock nut and gasket. It is UL/ETL/cETL/CSA listed and meets 2023 NEC 406.5(E) for countertop outlets.

• Tamper-resistant 20A duplex receptacles with integrated USB-A (27W, QC3.0 Class 2) and USB-C (30W, PD 2.0 + QC3.0 Class 2) charging
• Gasketed square bezel with splash protection (IP44 listed), recessed flush design for countertop installation
• Plastic back box with threaded lock nut for hardwired connection; requires 4-1/8" x 4-1/8" cutout and approx. 2" clearance beneath a 1" countertop

Product Highlights

Recessed pop-up countertop outlet with two 20A tamper-resistant receptacles, USB-A and USB-C Class 2 charging, gasketed bezel, and plastic back box for hardwired installation; UL/ETL/cETL/CSA listed and NEC compliant.

Product Information

Standard Information

• Brand: LEW ELECTRIC
• Manufacturer Part Number: PUFP-CT-WT-AC-PB
• Country of Origin: USA

Technical Specifications

• Brand: Lew Electric
• Manufacturer Part Number: PUFP-CT-WT-AC-PB
• Product Type: Kitchen countertop pop-up power outlet
• Application: Kitchen, countertop, island, bar, restaurant, hotel
• Cover Shape: Square
• Top Material: Metal top
• Box Material: Plastic back box (PUFP-CT-PB)
• Outlets: Two 20A tamper-resistant duplex receptacles
• USB-A Output: 27W (QC3.0, Class 2)
• USB-C Output: 30W (PD 2.0 + QC3.0, Class 2)
• Tamper Resistant: Yes
• Gasket: Included (gasketed bezel for splash protection)
• Ingress Protection: IP44 (splash resistant)
• Cutout Dimensions: 4-1/8" x 4-1/8" (4.125" x 4.125")
• Bezel Dimensions: 4 7/8" x 4 11/16"
• Maximum Countertop Thickness: 1.9 inches (supports up to approx. 2" in some installations)
• Minimum Clearance Beneath 1" Countertop: Approximately 2 inches
• Minimum Space Below Counter: 3 inches (installation note; may vary by installation and local code)
• Back Box Dimensions: Approximately 4" x 4" x 3 1/8" (4.0" W x 4.0" L x 3.125" H) - plastic back box PUFP-CT-PB
• Power Connection: Hardwired (no power cord included); connect to GFCI-protected circuit
• Mounting: Flush pop-up mounting with threaded lock nut
• Safety Listings and Certifications: UL (UL 498) listed; ETL and cETL listed; CSA approved (C22.2)
• Code Compliance: Meets 2023 NEC 406.5(E) for countertop outlets (USA & Canada)

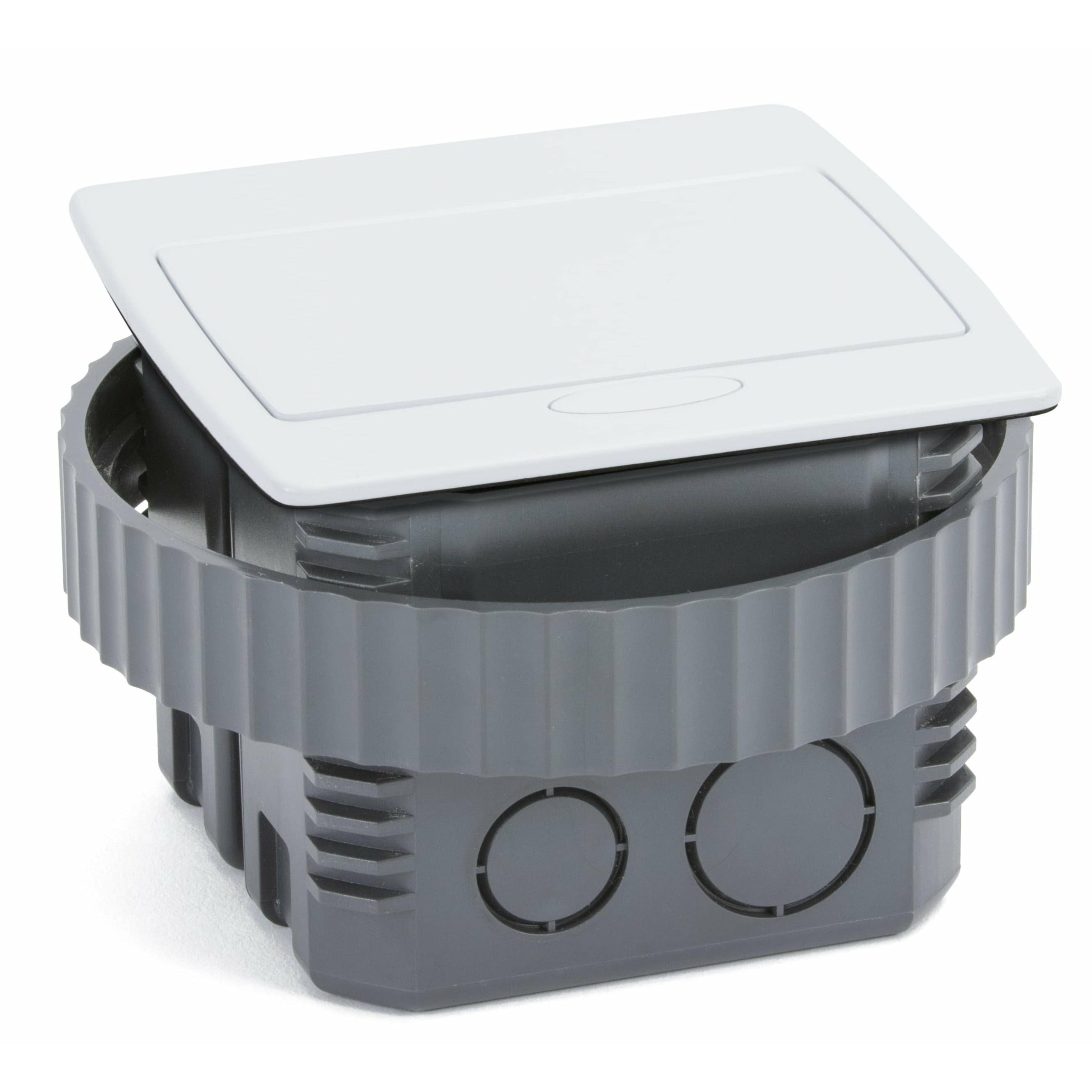

• Included Items: Plastic back box with threaded lock nut and screws; gasket
• Suitable Surfaces: Granite, quartz, marble, laminate, wood, concrete
• Installation Notes: Requires licensed electrician for hardwired installation; consult local code inspector
