Lew Electric PUFP-CT-SS-AC-PB Square kitchen countertop pop-up 20A (4-1/8 x 4-1/8)

Brand: LEW ELECTRIC
SKU: PUFP-CT-SS-AC-PB
Availability: In Stock

Ships same day if ordered by 12 pm
$362.43
$362.43
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

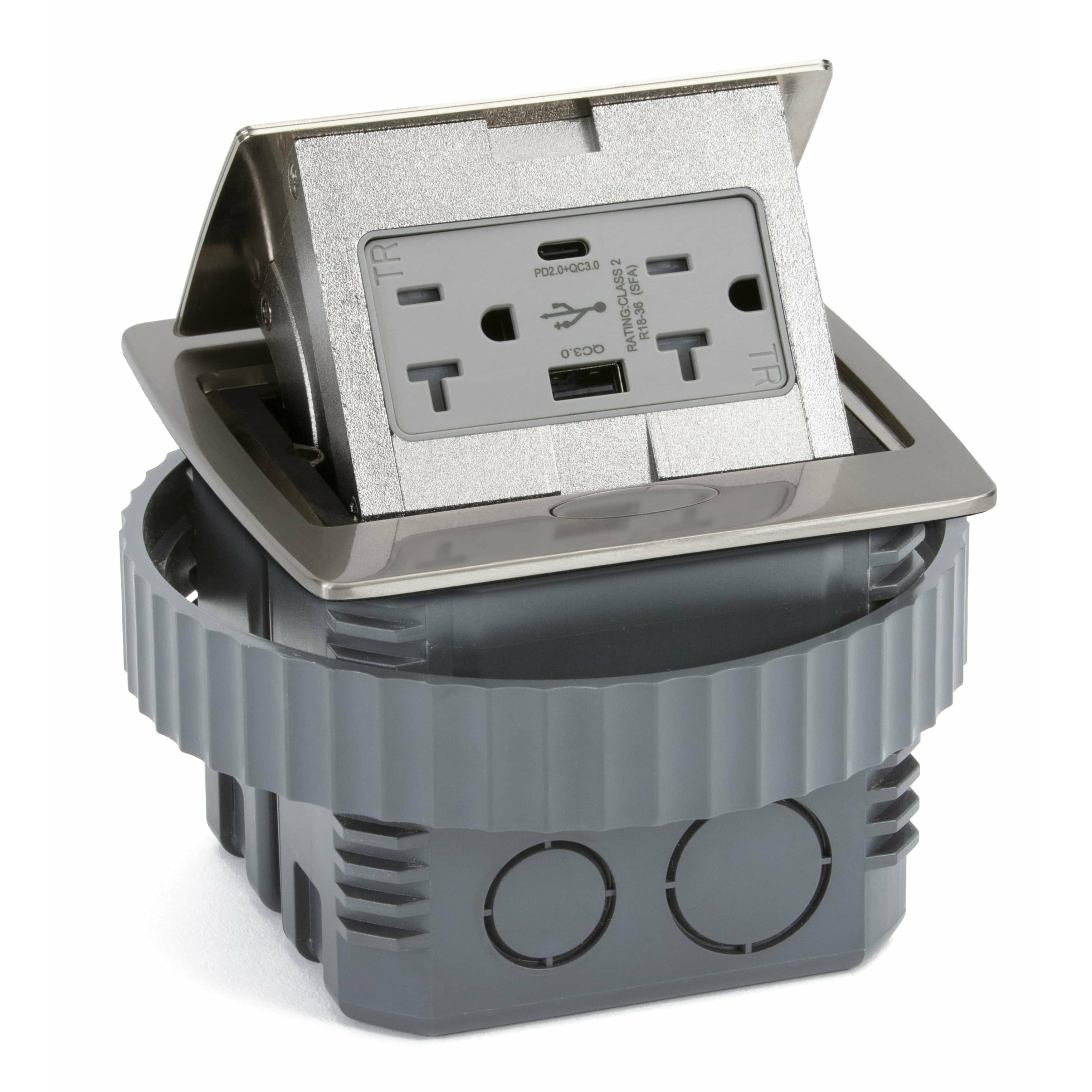

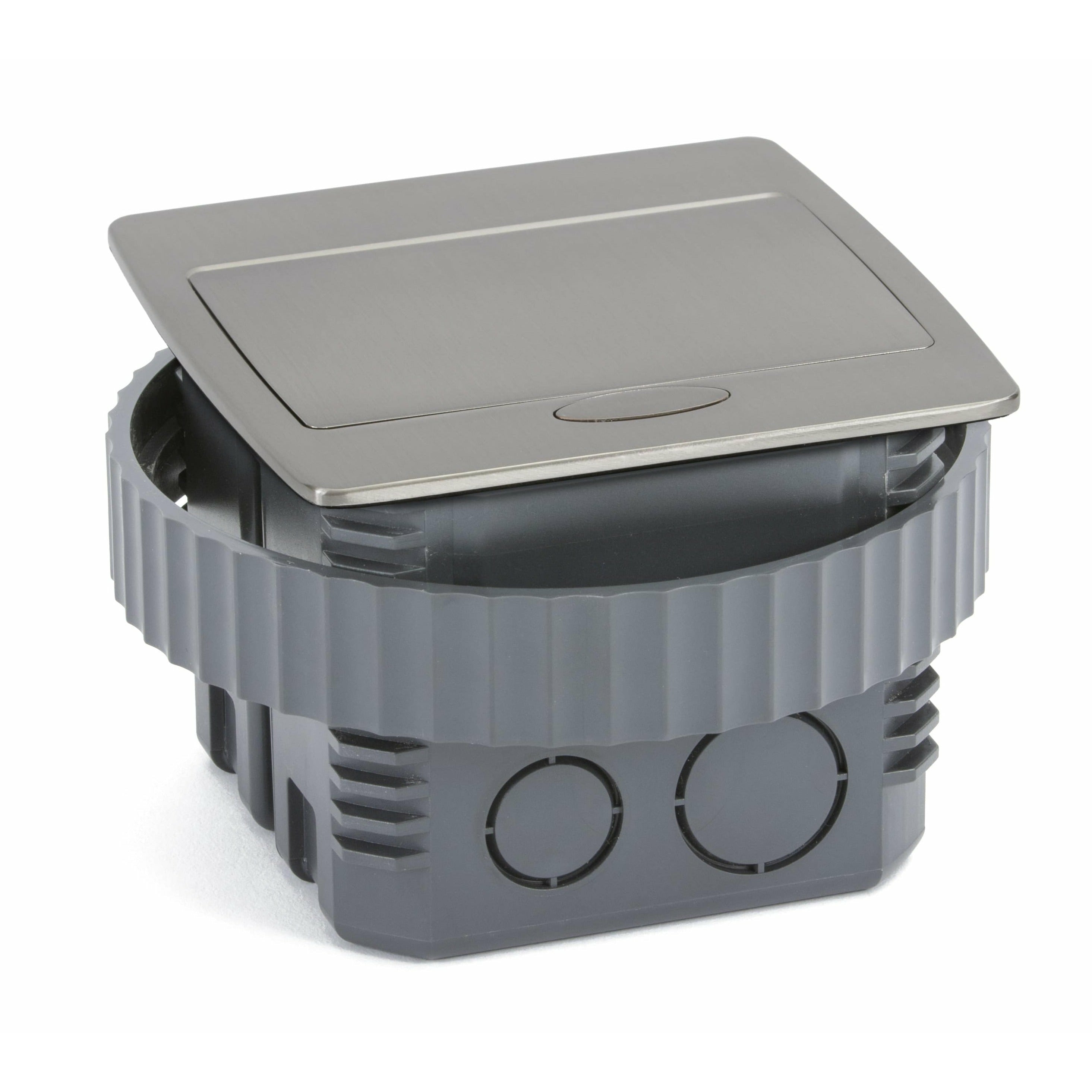

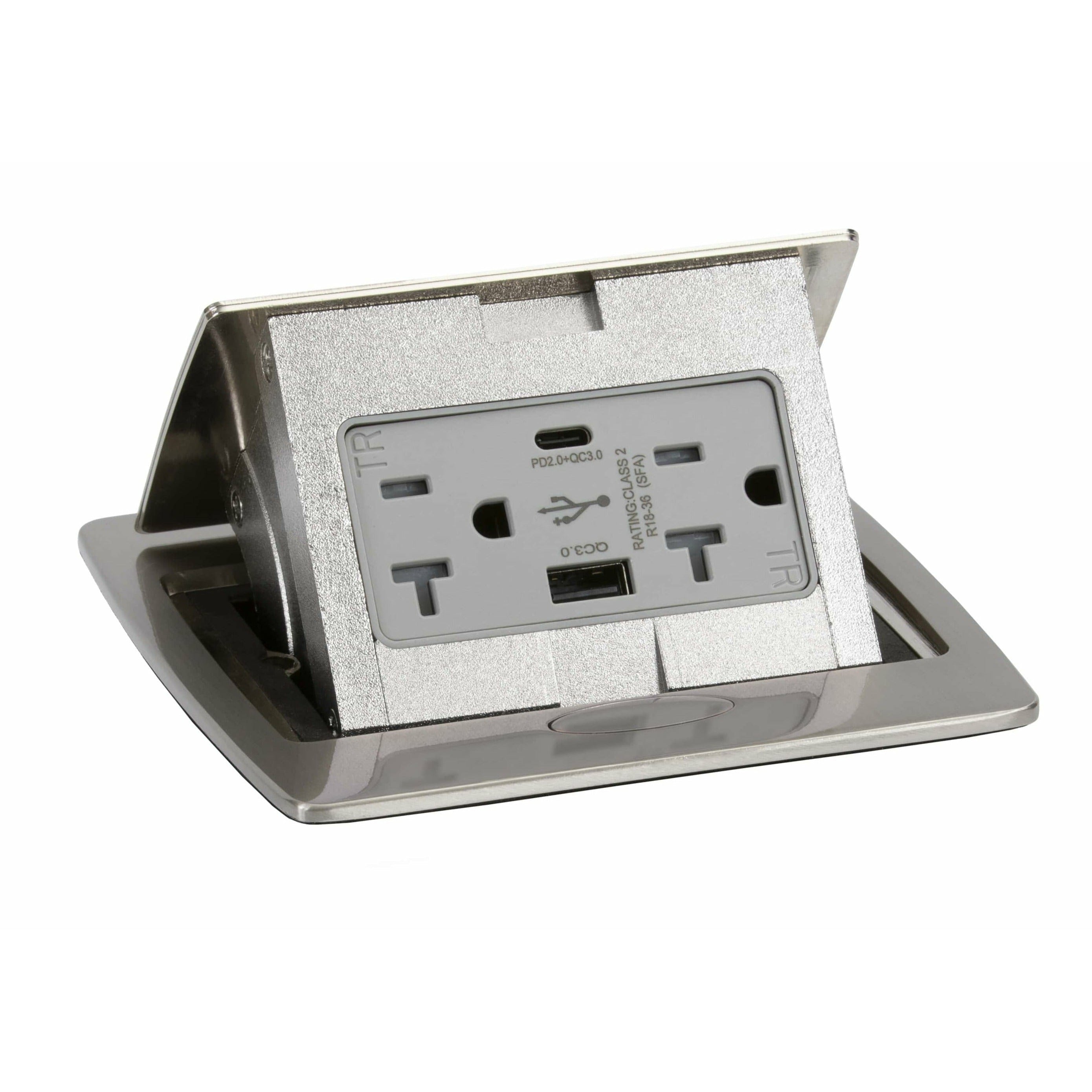

The Lew Electric PUFP-CT-SS-AC-PB is a recessed square countertop pop-up power outlet assembly for kitchen countertops, islands, and work surfaces that provides a tamper-resistant 20A duplex receptacle plus integrated USB-A and USB-C charging ports. The unit is hardwired and includes a plastic back box with knockouts for connection to a GFCI circuit, a gasket to limit liquid infiltration, and requires a 4 1/8" x 4 1/8" cutout and up to 1.9" countertop thickness.

  • Tamper-resistant 20A duplex outlet with UL 498 listed receptacle; meets 2023 NEC 406.5E
  • Integrated USB-A (27W Class 2 QC3.0) and USB-C (30W Class 2 PD 2.0 + QC3.0) ports with smart chip for adaptive charging
  • Includes plastic back box with lock nut and knockouts for hardwired installation to a GFCI circuit; requires 4 1/8" x 4 1/8" cutout and approximately 2" clearance beneath a 1" countertop

Product Highlights

Flush-mount pop-up with tamper-resistant 20A duplex, USB-A 27W QC3.0 and USB-C 30W PD2.0+QC3.0 charging, 4 1/8" x 4 1/8" cutout, hardwired with included back box

Product Information

Standard Information

  • Brand: LEW ELECTRIC
  • Manufacturer Part Number: PUFP-CT-SS-AC-PB
  • Country of Origin: USA
Technical Specifications
Brand
Lew Electric
Part Number
PUFP-CT-SS-AC-PB
Application
Kitchen countertops, islands, work surfaces
Product Type
Recessed square countertop pop-up outlet assembly
Product Family
PowerDen / PowerUp Square Pop-Ups - PUFP-CT Series
Cover Shape
Square
Top Material/Finish
Stainless metal top
Box Material
Plastic
Mounting Type
Flush-mount pop-up (recessed)
Mounting/Connection
Hardwired (no power cord); back box with knockouts for GFCI connection
Receptacle Type
Duplex tamper-resistant receptacle (UL 498 listed)
Amperage
20 Amp
USB-A Output
27W (Class 2 QC3.0)
USB-C Output
30W (Class 2 PD 2.0 + QC3.0)
USB Features
Smart chip for device detection and adaptive charging
Tamper Resistant
Yes
Gasket/Ingress Protection
Gasket between bezel and countertop to limit liquid infiltration
Code Compliance
Meets 2023 NEC 406.5E for countertop outlets
Certifications
UL listed receptacle (UL 498); ETL listed (USA) / cETL (Canada) #4004534; CSA certified (C22.2); conforms to UL 498 and CSA STD.C22.2 No. 42-10
Cutout Size
4 1/8" x 4 1/8" (4.125 x 4.125 inches)
Bezel Size
4 7/8" x 4 11/16"
Back Box
Includes plastic back box with knockouts (dimensions not specified)
Clearance Required Beneath Countertop
Approximately 2 inches beneath a 1 inch countertop
Maximum Countertop Thickness
1.9 inches
Installation
Includes plastic back box with lock nut; hardwire via knockouts; connect to GFCI circuit
Intended Use
Indoor countertop installations (kitchen countertops and islands)
