Lew Electric PUFP-CT-B-AC-PB Square kitchen countertop pop-up 20A (4 1/8 in x 4 1/8 in)

Product Description

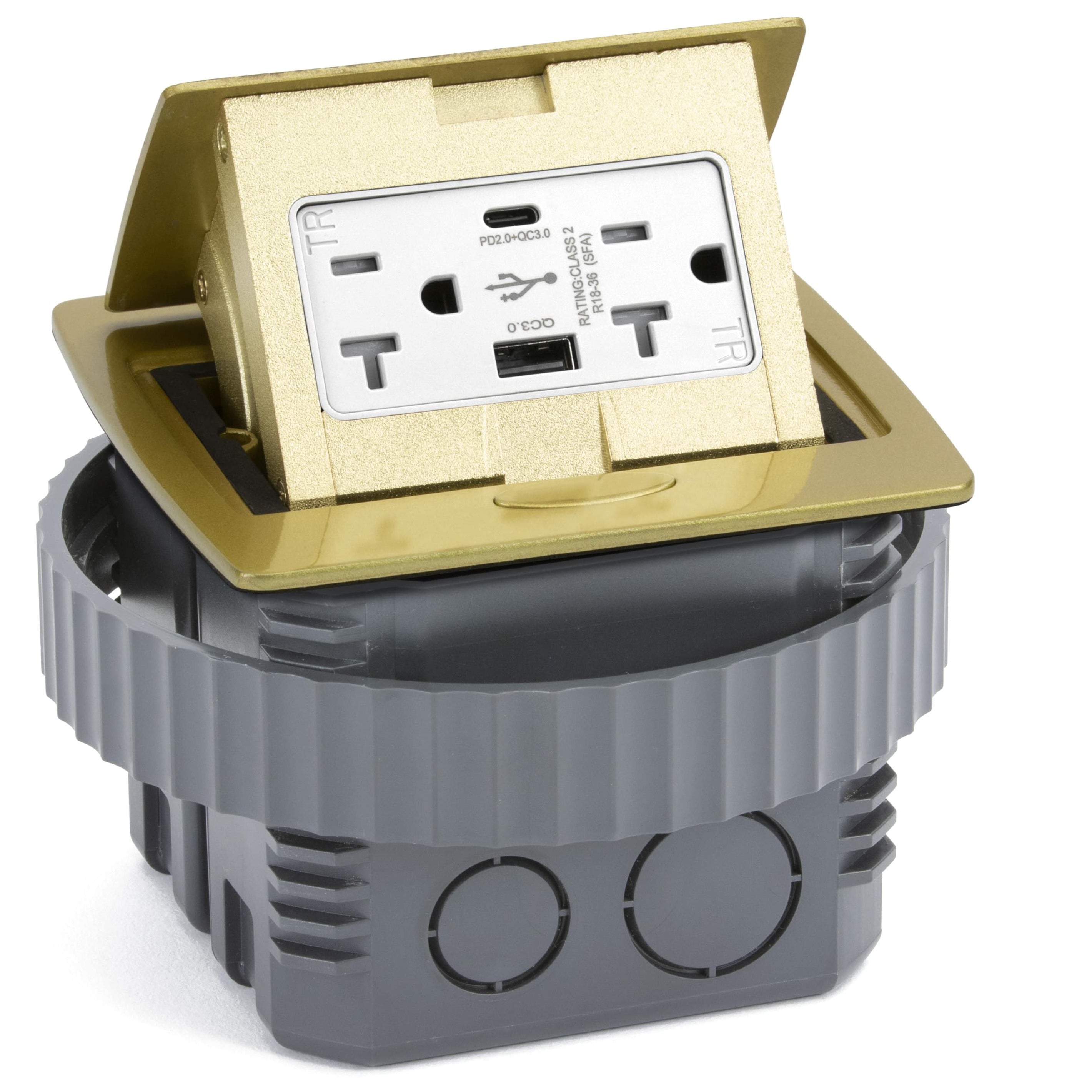

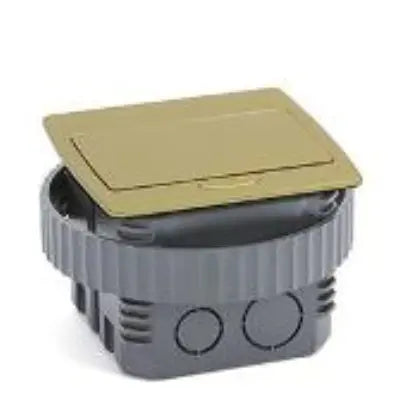

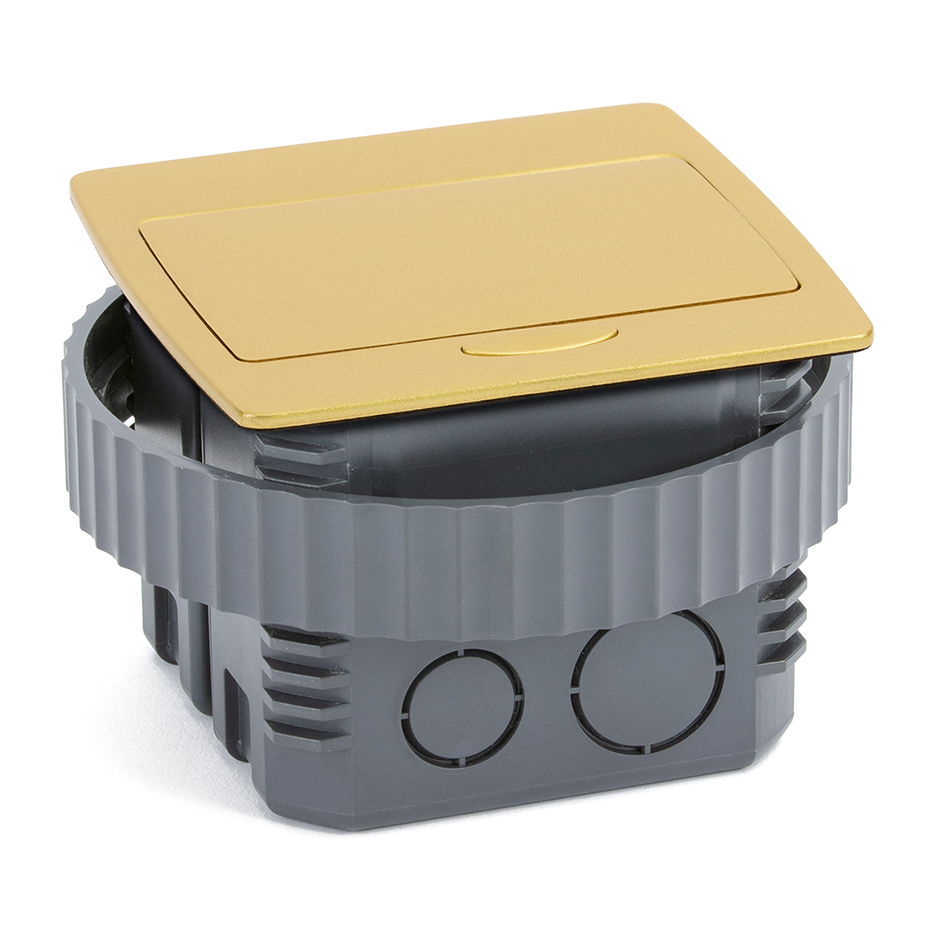

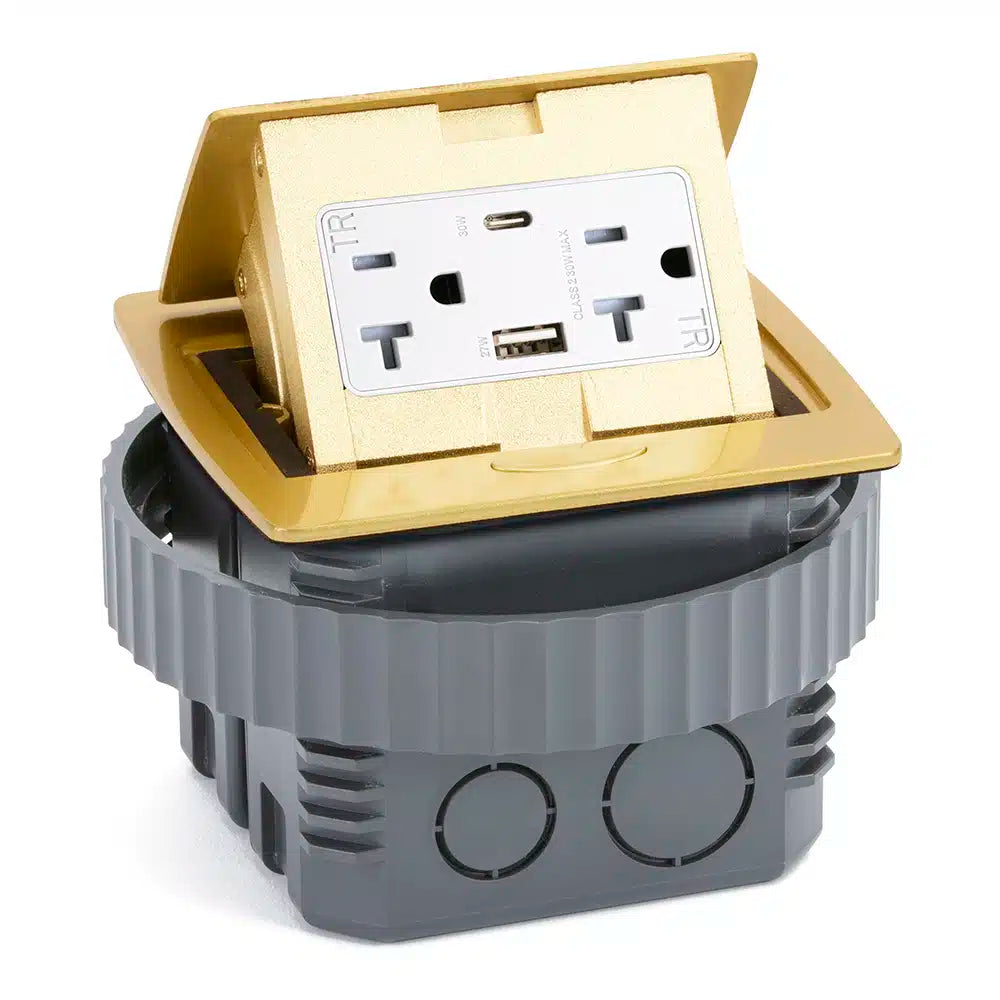

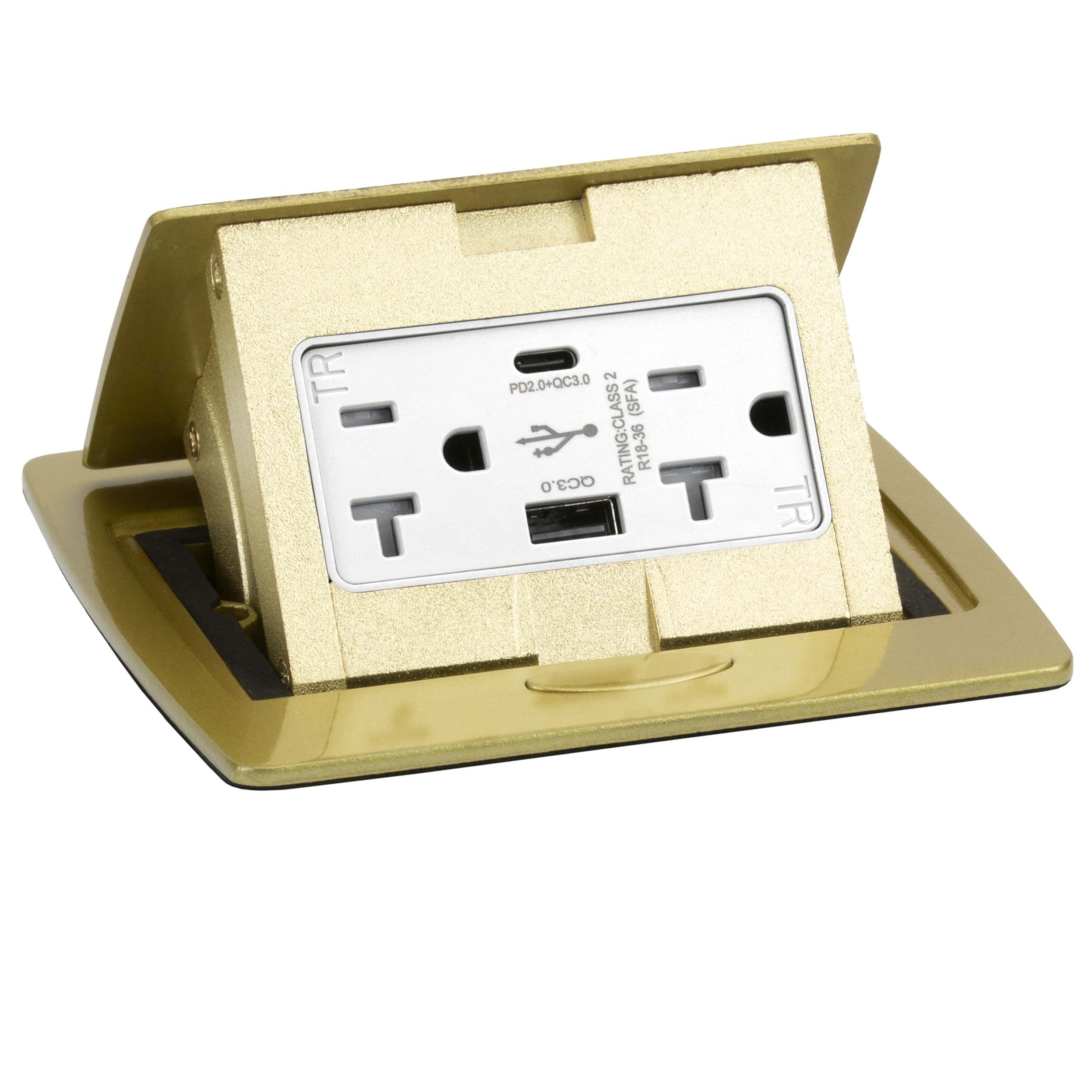

Lew Electric PUFP-CT-B-AC-PB is a square pop-up countertop power outlet assembly that provides two tamper-resistant 20A duplex receptacles plus integrated USB-A and USB-C charging. The unit retracts to sit flush with the countertop, installs into a 4 1/8 in x 4 1/8 in cutout, fits counter thicknesses up to 1.9 in, and includes a plastic back box with lock nut. The outlet is hardwired and intended for GFCI-protected circuits.

• Two tamper-resistant 20A duplex outlets with integrated USB-A (27W Class 2 QC3.0) and USB-C (30W Class 2 PD2.0 + QC3.0) charging
• Recessing pop-up design with gasketed bezel to reduce liquid infiltration; installs in a 4 1/8 in x 4 1/8 in cutout and fits counters up to 1.9 in thick
• Hardwired installation with included plastic back box and lock nut; UL listed receptacle and meets 2023 NEC 406.5E countertop code

Product Highlights

Square pop-up countertop outlet with two 20A tamper-resistant receptacles, USB-A and USB-C charging, gasketed bezel, plastic back box, and NEC/UL code compliance.

Product Information

Standard Information

• Brand: LEW ELECTRIC
• Manufacturer Part Number: PUFP-CT-B-AC-PB
• Country of Origin: USA

Technical Specifications

• Brand: Lew Electric
• Part Number: PUFP-CT-B-AC-PB
• Product Type: Square kitchen countertop pop-up power outlet
• Output Current: 20 A (two tamper-resistant duplex receptacles)
• USB-A Output: 27W Class 2 QC3.0 (smart chip)
• USB-C Output: 30W Class 2 PD 2.0 + QC3.0 (smart chip)
• Cutout Dimensions: 4 1/8 in x 4 1/8 in (cutout)
• Maximum Countertop Thickness: 1.9 in
• Back Box Material: Plastic (included) with lock nut
• Mounting Type: Recessed pop-up, above-surface access when deployed
• Installation: Hardwired (no power cord); connect to GFCI-protected circuit; hardwire via back box knockouts
• Gasket/Ingress Protection: Gasketed bezel to reduce liquid infiltration (UL spill-tested)
• Code Compliance: Meets 2023 NEC 406.5E for countertop outlets (USA & Canada)
• Listings/Certifications: UL listed receptacle (E491706); ETL listed (USA) and cETL listed (Canada) #4004534; CSA approved #C22.2; Conforms to UL 498; Certified to CSA STD.C22.2 No. 42-10
• Bezel Shape: Square
• Includes: Plastic back box with lock nut
