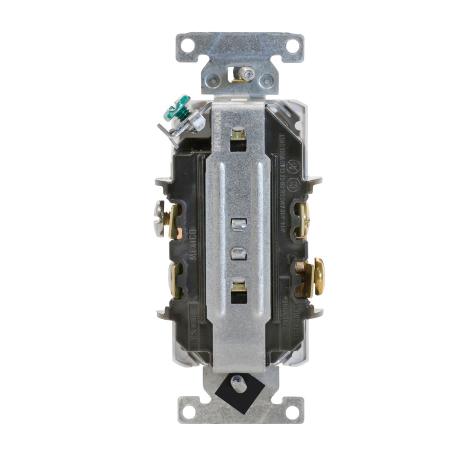

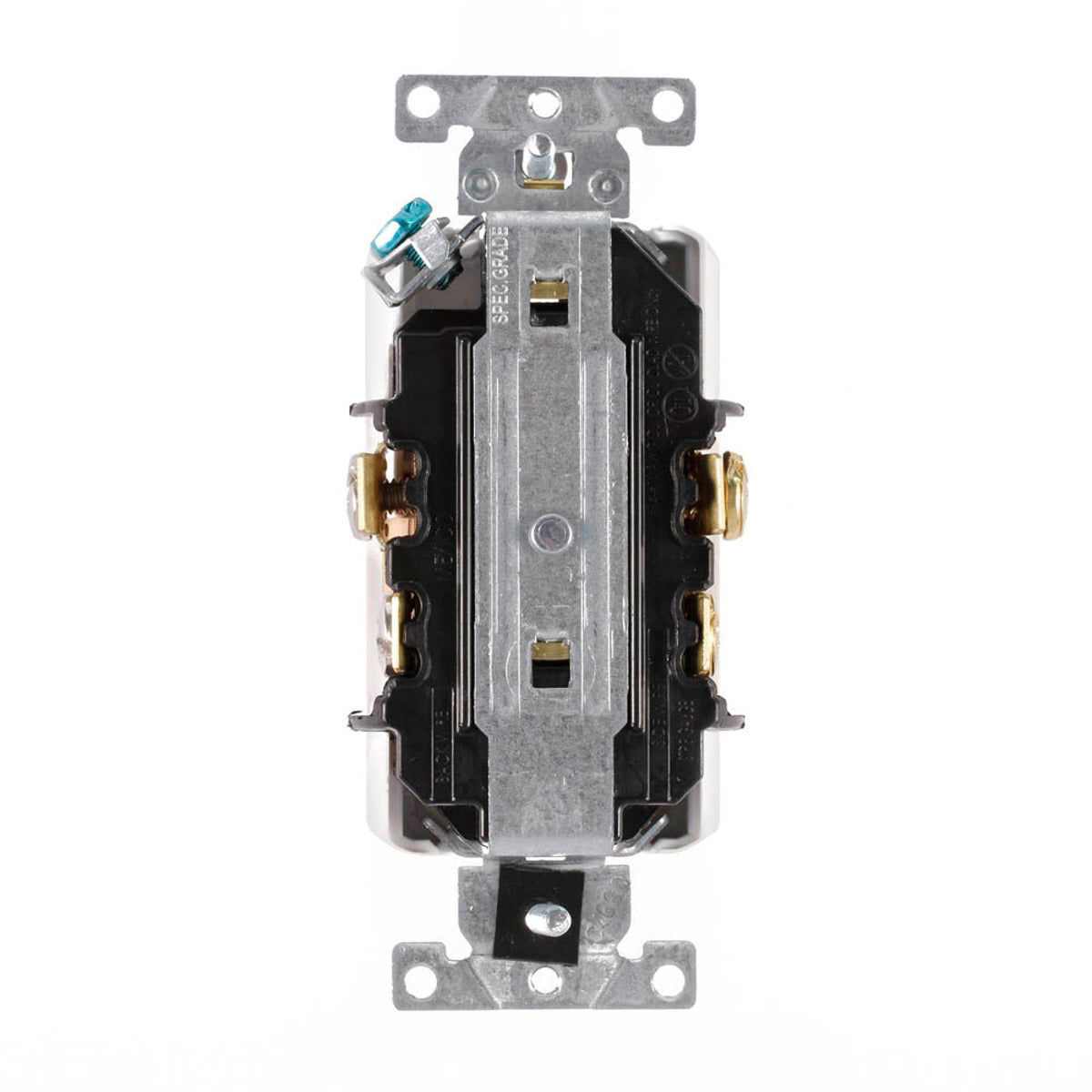

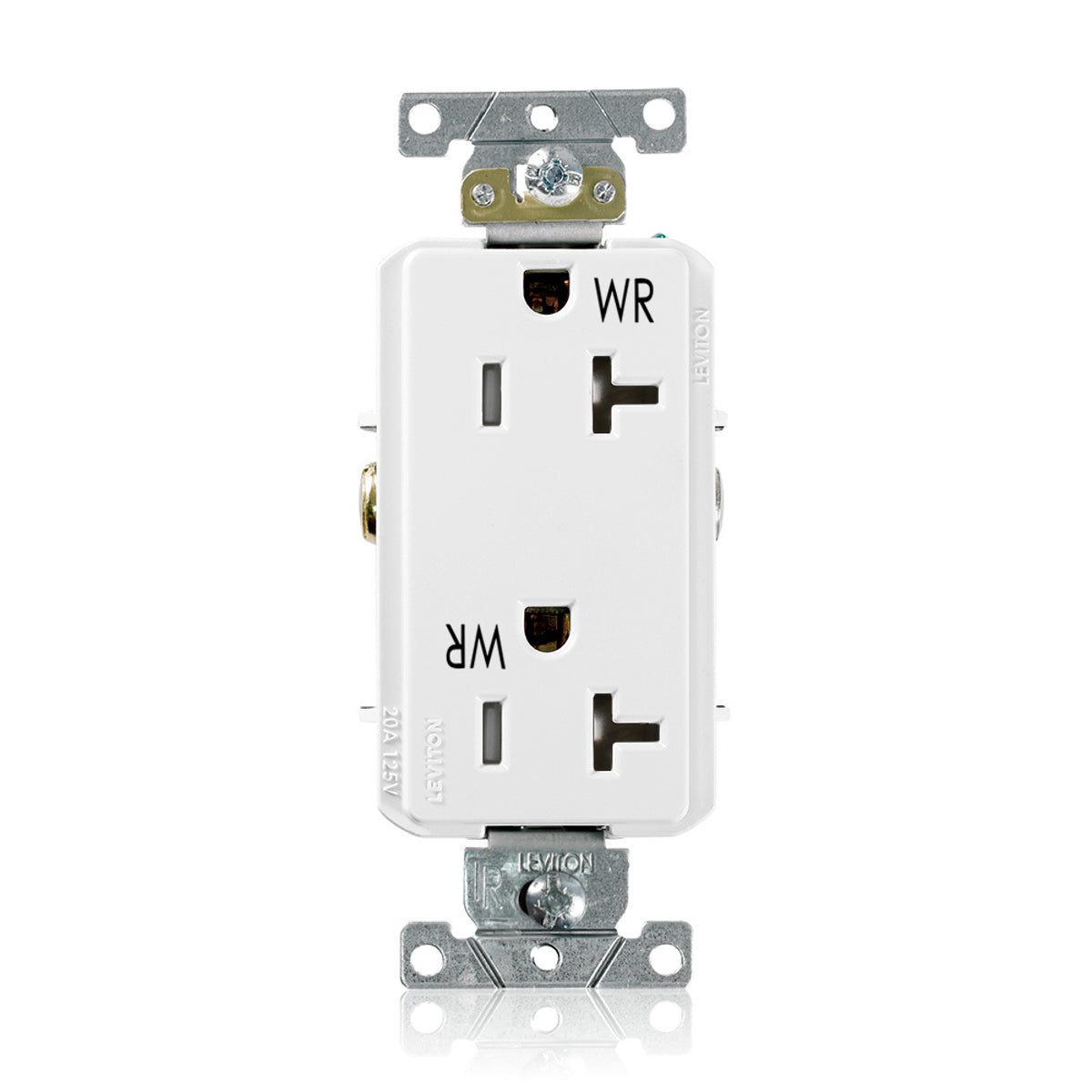

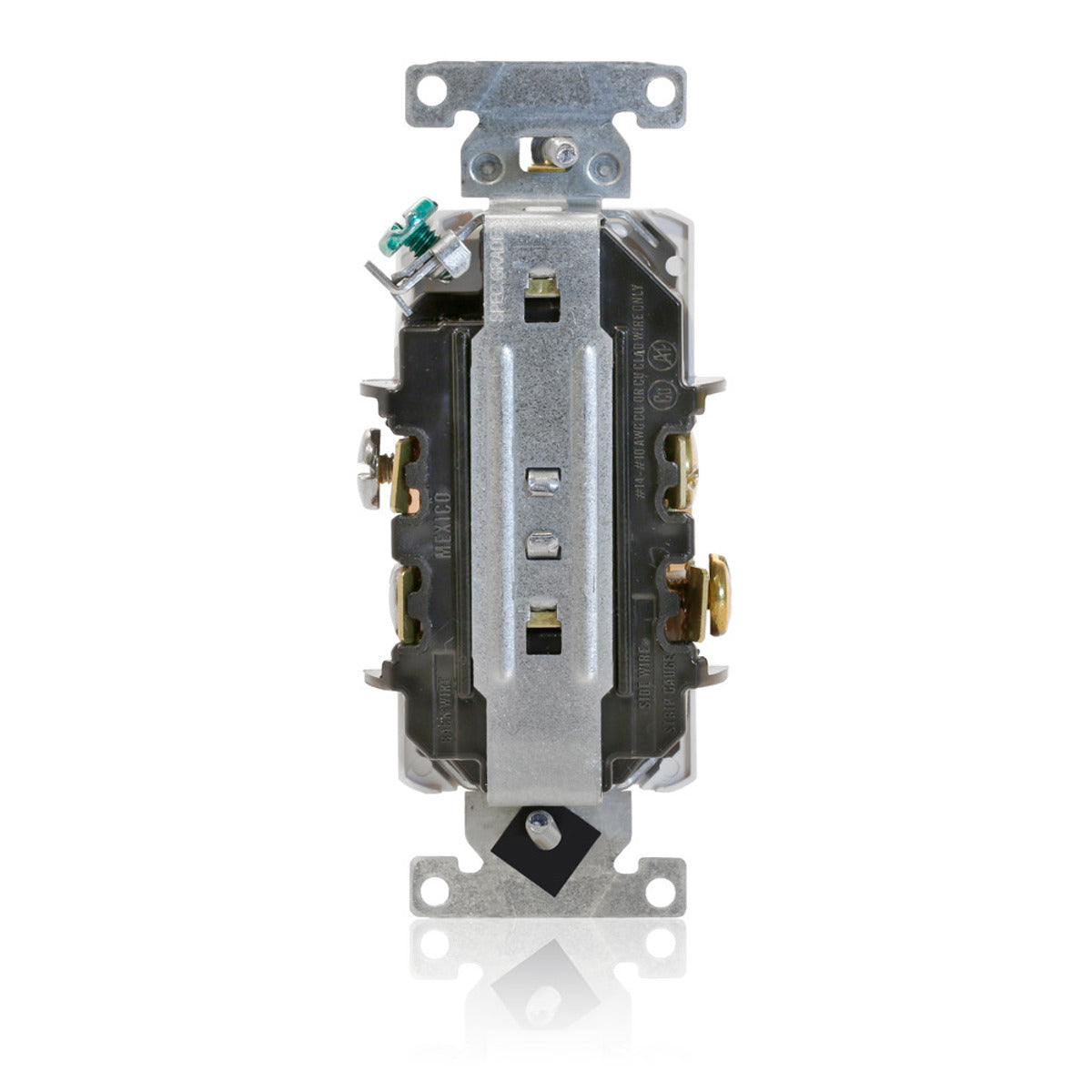

Leviton WTD20-W Decora Plus Duplex Receptacle 20A 125V (Straight Blade NEMA 5-20R)

Product Description

Leviton WTD20-W is a Decora Plus duplex receptacle rated 20 A, 125 V (NEMA 5-20R) for industrial and specification-grade applications. The device is weather- and tamper-resistant, self-grounding, and accepts back or side wiring; it is constructed of a PBT polyester blend with a steel strap and is rated for 2-pole, 3-wire service and 1 hp. Operating temperature is -40 to 75 deg C and it meets UL 498 and other industry standards.

• 20 A, 125 V NEMA 5-20R duplex receptacle; 2-pole, 3-wire, 1 hp rating
• Weather-resistant and tamper-resistant with self-grounding construction; back and side wiring terminals
• PBT polyester blend construction with steel mount/strap; operating temperature -40 to 75 deg C; meets UL 498

Product Highlights

Industrial-grade Decora Plus duplex receptacle, NEMA 5-20R, tamper- and weather-resistant, back/side wired, PBT construction.

Product Information

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: WTD20-W
• Country of Origin: Mexico

Technical Specifications

• Brand: Leviton
• Manufacturer Part Number: WTD20-W
• Product Type: Decora Plus duplex receptacle
• Amperage Rating: 20 A
• Voltage Rating: 125 V AC
• NEMA Rating: NEMA 5-20R
• Number of Poles: 2
• Number of Wires: 3
• Horsepower Rating: 1 hp
• Material: PBT polyester blend
• Mounting Type: Steel mount / steel strap
• Wiring Type: Back and side wire terminals
• Tamper Resistant: Yes
• Weather Resistant: Yes
• Self-Grounding: Yes
• Grade: Heavy-duty / Industrial specification
• Temperature Rating: -40 to 75 deg C
• Dimensions: 4.06 in H x 1.71 in W x 1.11 in D
• Country of Origin: Mexico
• Standards/Approvals: UL 498; cULus Listed; CSA C22.2 No. 42; Federal Spec WC-596; UL 94 V-0; NOM-ANCE; ANSI C73
• Dielectric Strength: Withstands 3000 V minimum
