Product Description

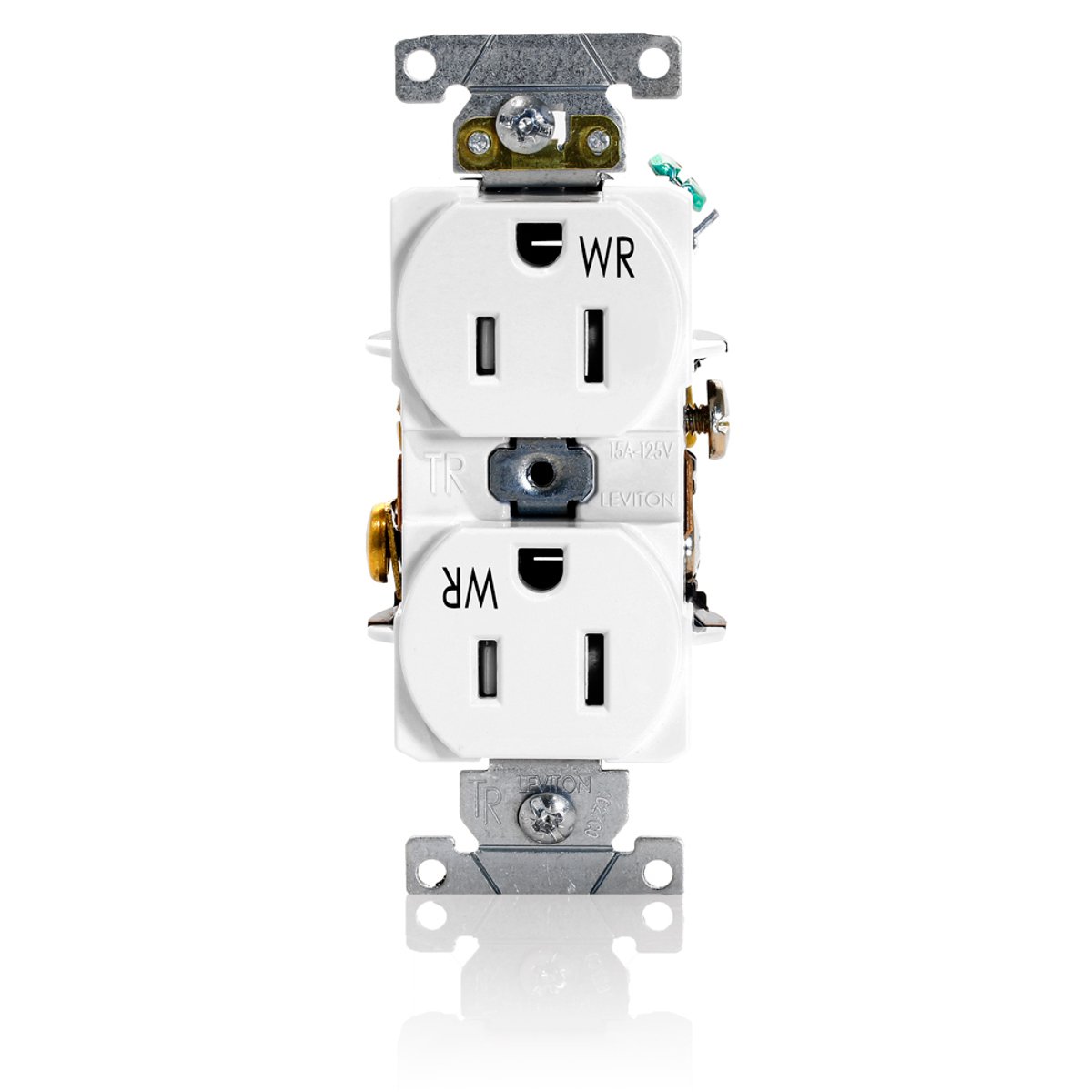

The Leviton TWR15-W is a straight blade receptacle, designed for 1-Phase duplex self-grounding with tamper and weather resistance. Rated at 125 VAC and 15 A, it is suitable for various applications. This commercial-grade receptacle ensures durability and reliable performance. It has side wire terminals and is constructed from nylon.
- Self-Grounding
- Tamper Resistant
- Weather Resistant
Product Highlights
The Leviton TWR15-W is ideal for commercial and institutional environments, offering a cost-effective solution with long-lasting service.
Product Information
Standard Information
-
Brand: LEVITON
-
Manufacturer Part Number: TWR15-W
-
Country of Origin: Mexico
Technical Specifications
-
Amperage: 15 A
-
Poles: 2
-
Wires: 3
-
Voltage: 125 VAC
-
Horsepower: 1/2 hp
-
NEMA Rating: 5-15R
-
Grade: Commercial Grade
-
Temperature: -40 to 60 deg C
-
Wiring: Side Wire Terminal
-
Material: Nylon
-
UNSPSC Code: 39121400
-
Standards/Approvals: NEMA WD-2/WD-6|ANSI C-73|NOM 057|CSA C22.2 No. 42 File No. 152105|UL 498 File No. E13399|UL94 V-2 Flammability Rating
-
Terminal Type: Side Wire
-
Type: 1-Phase Duplex Self-Grounding Tamper and Weather Resistant
-
Amperage Rating: 15 A
-
Voltage Rating: 125 VAC
-
Number of Poles: 2
-
Number of Wires: 3
-
Temperature Rating: -40 to 60 deg C
-
Manufacturer Item Status: Active
-
Brand Name: Leviton
-
UPC: 078477381847
-
GTIN: 00078477381847
-
Alternative Part Number: 9869878
-
Temperature Rating UOM: deg C
-
Voltage Rating UOM: VAC
-
Dielectric Strength: 2000 (Min.)
-
Wire Size: 14-10
-
Connection: Side Wired
-
Application: Commercial
-
Number Of Poles: 2 Pole
-
Number Of Wires: 3
-
Environmental Conditions: Flammability (Rated V-2 per UL94)
-
Current Rating: 15 A
-
Operating Temperature: -40 to 75 deg C
-
NEMA Configuration: 5-15R
