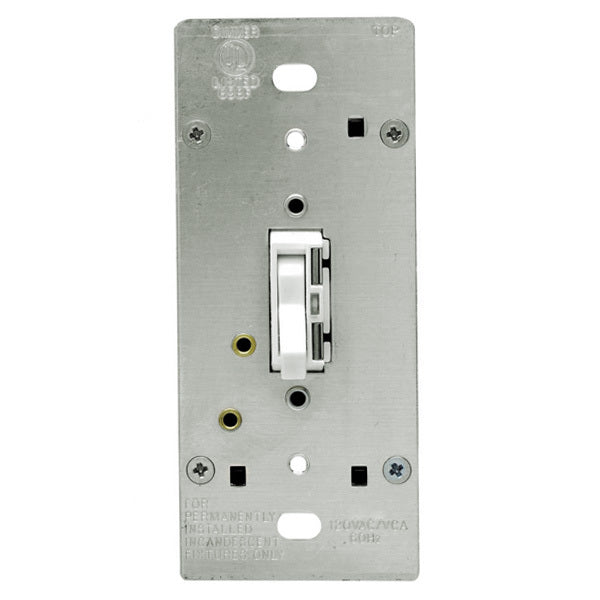

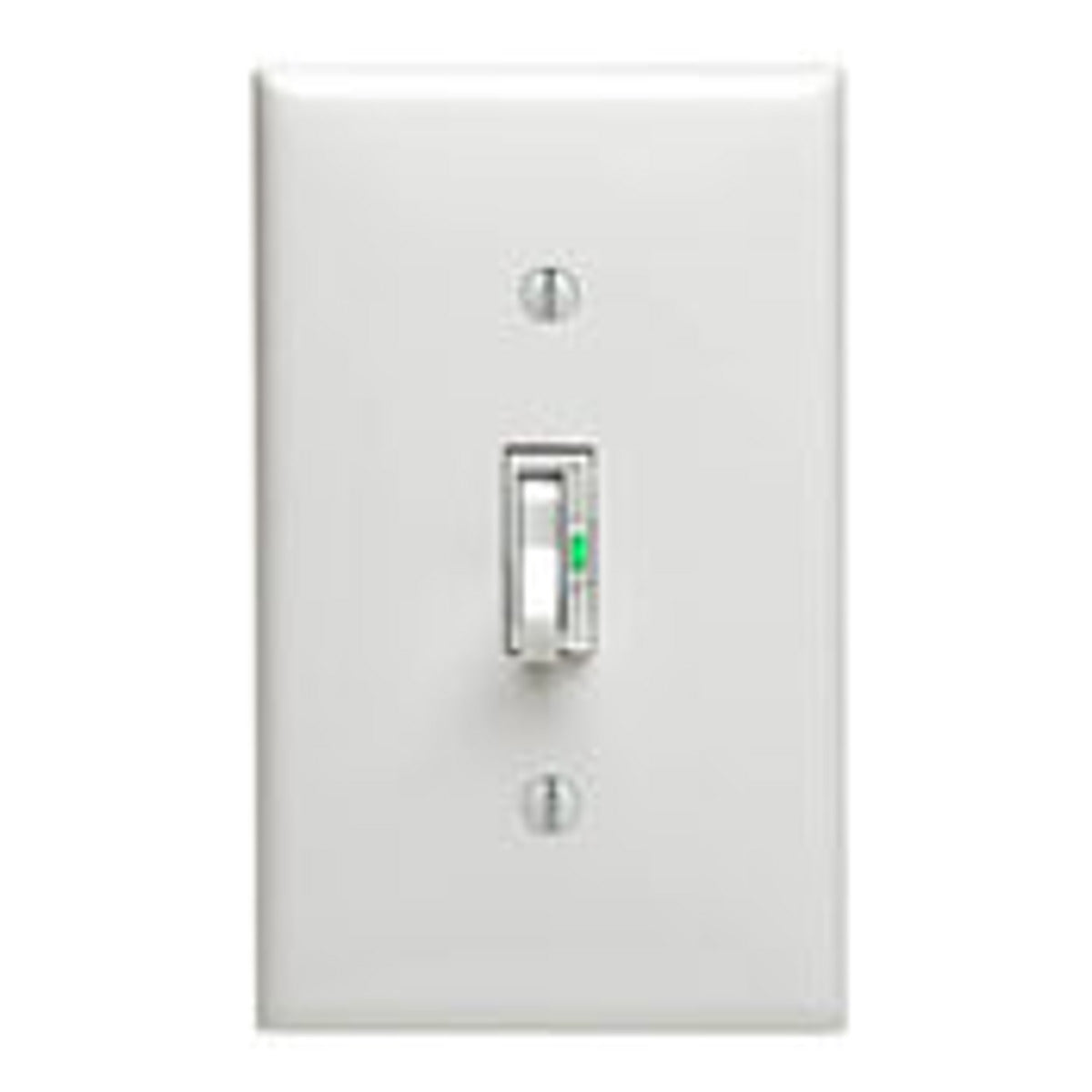

Leviton TGI10-1LW ToggleTouch Preset Digital 1000W Incandescent Dimmer

Product Description

The LEVITON TGI10-1LW ToggleTouch Preset Digital Dimmer is designed for incandescent lighting. This dimmer reduces energy consumption and extends bulb life. It features a low-profile fluid slide bar for fine adjustment of light levels and an easy-to-use ON/OFF preset switch. Designed for both single-pole and 3-way applications.

• Rated 1000W maximum
• Toggle touch switch
• LED locator light

Product Highlights

This Leviton dimmer is compatible with standard 3-way wiring and has color-matched touch pads.

Product Information

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: TGI10-1LW
• Country of Origin: China

Technical Specifications

• Catalog Number: TGI10-1LW
• Manufacturer: Leviton
• Brand: Leviton
• Sub Brand: ToggleTouch
• Country of Origin: China
• Made in USA: No
• Application: Commercial
• Frequency Rating: 60 Hz
• Mounting: Wall
• Number of Poles: 1
• Standard: UL Listed (E-31373), CSA Certified (LR-3413)
• UPC: 078477182512
• GTIN: 00078477182512
• Item Type: Digital
• Environmental Conditions: 20 to 90 % (Relative Humidity Non-Condensing);-10 to +85 DEG C (Non Operating)
• Operating Temperature: 0 to +55 DEG C
• Voltage Rating: 120
• Wattage: 1000 W
• Action: Soft-ON/Standard-OFF
• Available Colors: Ivry-I Wht-W Almnd-A Brwn-B LA-T
• Color: White
• Light: LED Locator Light
• Load Rating: 1000W
• Load Type: Incandescent
• Preset: Preset
• Protection: Radio/TV Filter
• Standards and Certifications: UL/CSA
• Style Name: ToggleTouch
• Switch Type: 1-Pole/3-Way
• Type: Digital
• Voltage: 120 VAC
• Wallplate: Order Separately
• ECCN: EAR99
• Rated Voltage: 120V
• Rating: 1000W
• Color Family: White
• Model: TGI10-1LW
• Maximum Wattage: 1000 Watt
• Operation: 3-Way
• Height: 4.11 in.
• Width: 2.38 in.
