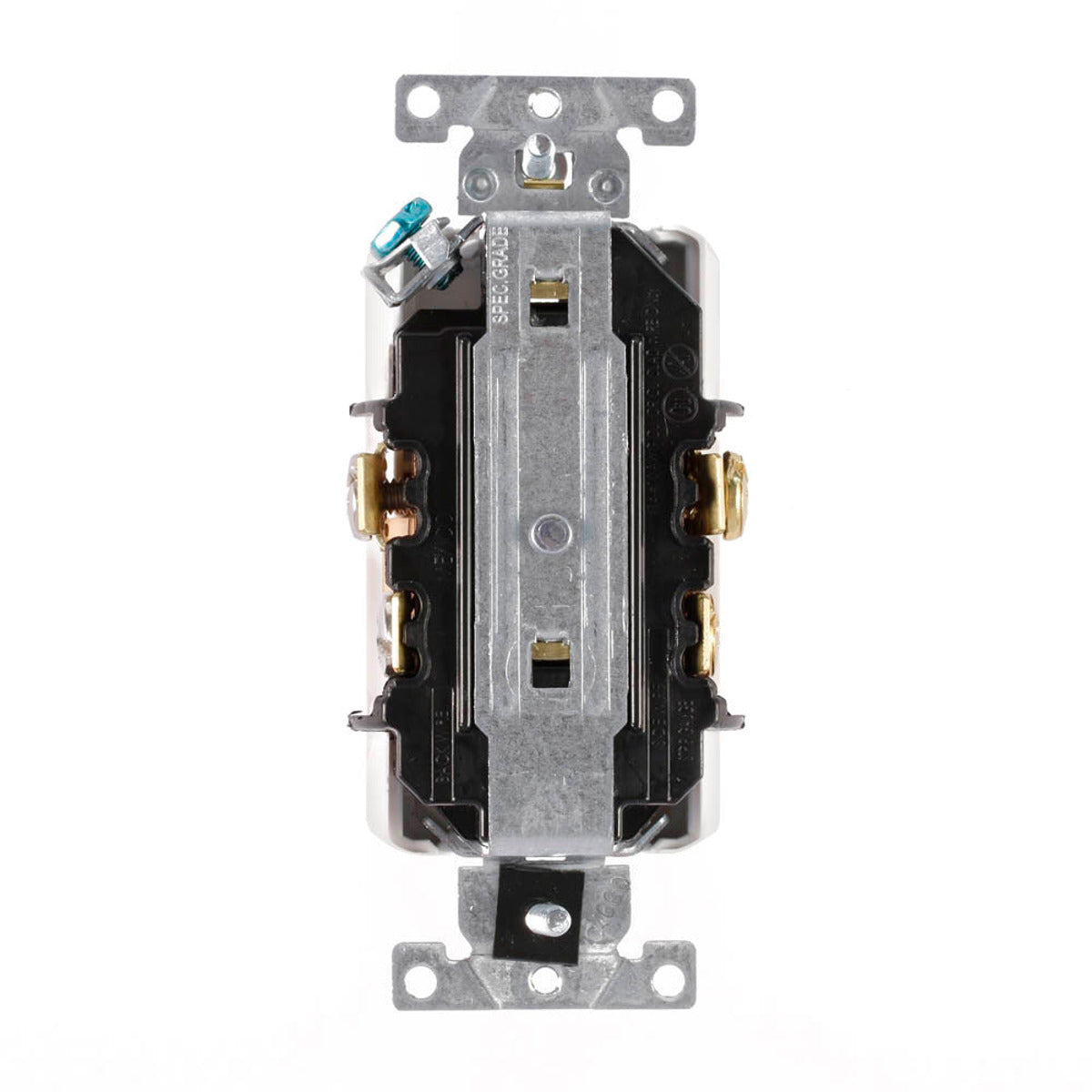

Leviton TDR20-E Decora Plus Duplex Receptacle 20A 125V (46 H x 1.52 W x 1.14 D)

Brand: LEVITON
SKU: TDR20-E
Availability: Out Of Stock
$18.76
$18.76
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

Leviton TDR20-E is a commercial-grade tamper-resistant Decora Plus duplex straight-blade receptacle rated 20 A and 125 V. The device provides two outlets in a 2-pole, 3-wire configuration (NEMA 5-20R) and includes tamper-resistant shutters, a brass-staked self-grounding clip and a heavy-gauge locked-in wraparound steel strap. It accepts 14�10 AWG conductors via back-and-side wiring and is constructed with a nylon body for operation from -40 to +60 C. The unit meets applicable NEMA, ANSI, NOM, CSA, and UL standards.

  • Tamper-resistant Decora Plus duplex design with shuttering for child-safety compliance
  • 20 A, 125 V rated; 2-pole, 3-wire NEMA 5-20R configuration
  • Back and side wired terminals accept 14�10 AWG; nylon body with heavy-gauge steel strap and brass-staked self-grounding clip

Product Highlights

Commercial-grade tamper-resistant Decora Plus duplex receptacle, 20 A 125 V, back/side wired, self-grounding, meets NEMA/ANSI/CSA/UL standards

Product Information

Standard Information

  • Brand: LEVITON
  • Manufacturer Part Number: TDR20-E
  • Country of Origin: Mexico
Technical Specifications
Brand
Leviton
Manufacturer Part Number
TDR20-E
Product Type
Duplex straight blade receptacle (tamper resistant)
Amperage Rating
20 A
Voltage Rating
125 V
NEMA Configuration
5-20R
Number of Outlets
2
Poles
2
Wires
3
Wire Size
14-10 AWG
Connection
Back and side wired
Mounting
Wall / flush mount
Material
Nylon body; steel strap
Strap
Heavy-gauge locked-in wraparound steel strap
Grounding
Self-grounding (brass-staked clip)
Tamper Resistant
Yes
Operating Temperature
-40 to +60 C
Standards/Approvals
NEMA (WD-1, WD-6); ANSI (C-73); NOM 057; CSA C22.2 No. 42; UL Federal Spec WC-596; UL 498; UL94 V-2 Flammability Rating
Country of Origin
Mexico
UPC
078477392140
Grade
Commercial / Industrial
Horsepower Rating
1 hp
Phase
Single phase
Configuration Description
2-pole, 3-wire NEMA 5-20R
Contact Material
Brass
Dimensions
1.81 H x 1.52 W x 1.14 D inches
