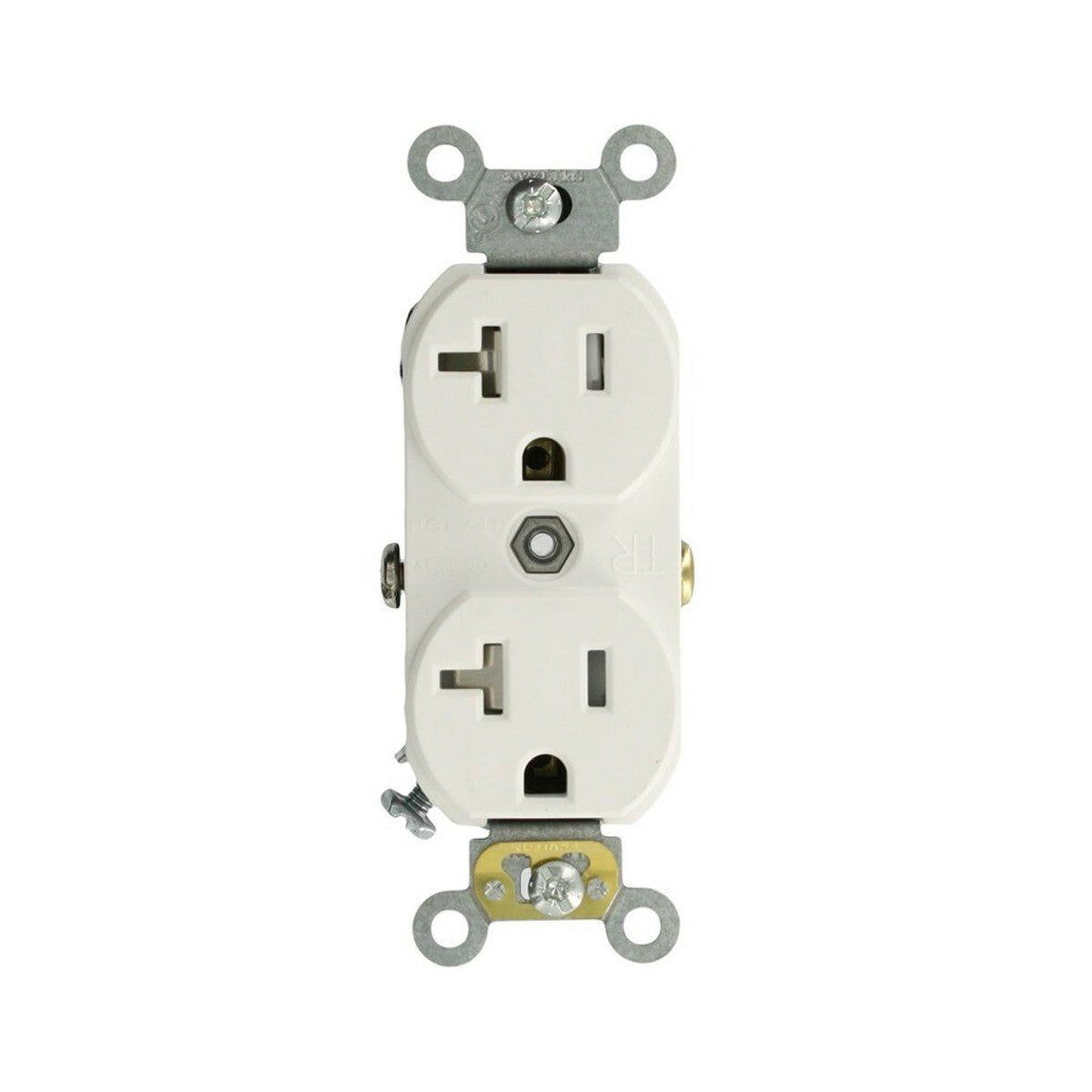

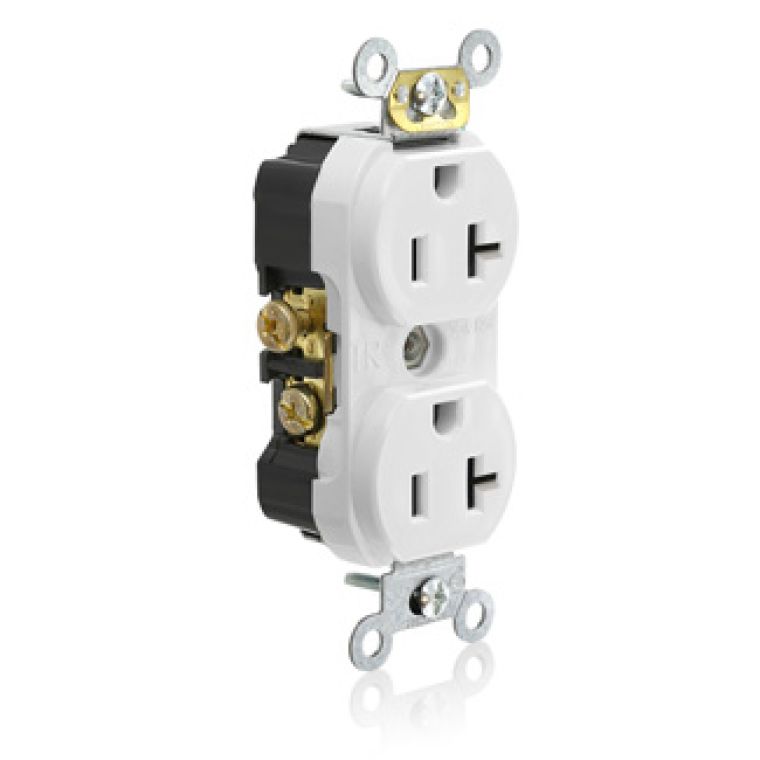

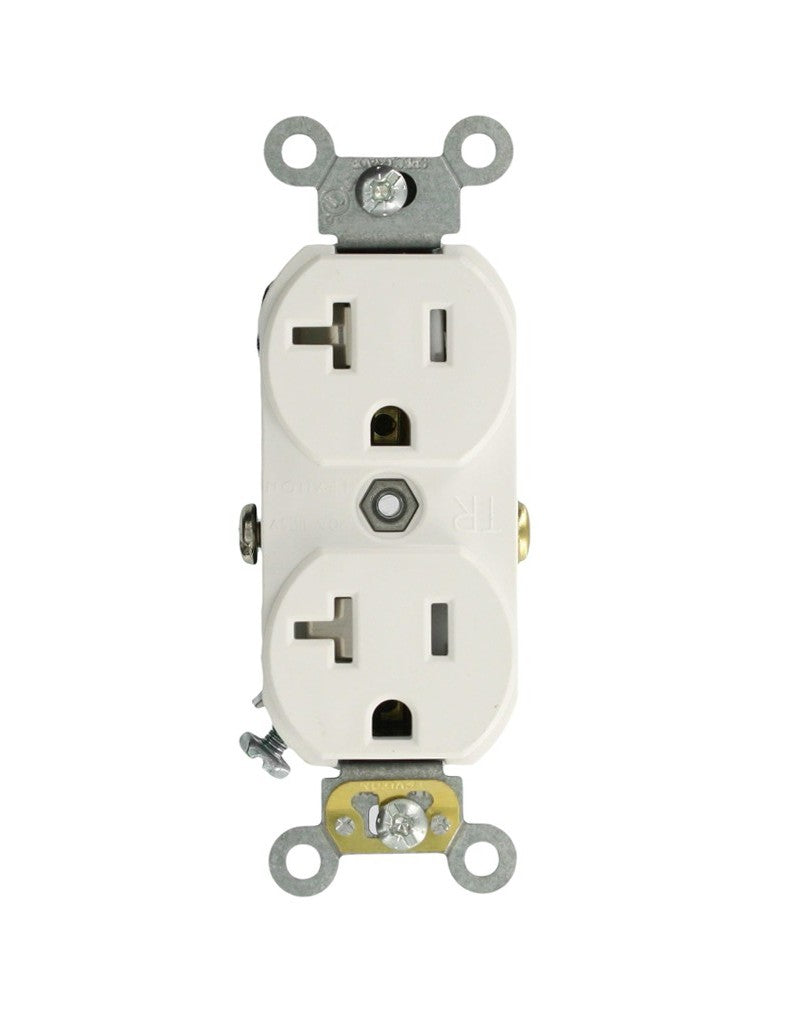

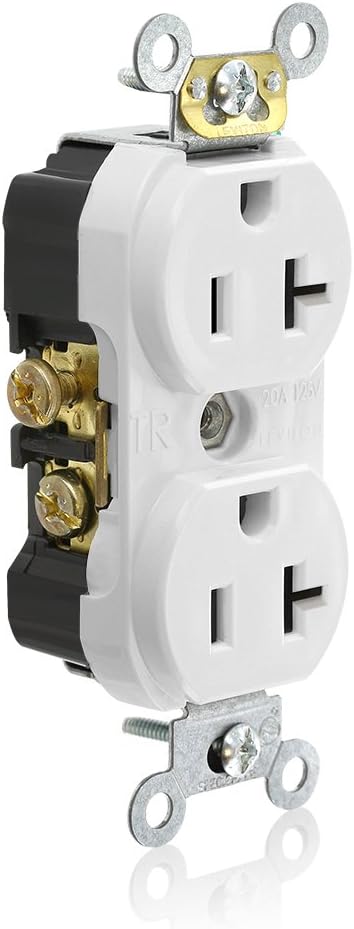

Leviton TCR20-W Side Wired Commercial Spec Grade Tamper Resistant Duplex Receptacle 20-Amp 125-volt

Product Description

The Leviton TCR20-W is a side wired commercial specification grade tamper-resistant duplex receptacle. Rated for 20-Amp and 125-volts, this receptacle is ideal for commercial applications. It meets NEMA standards and is constructed from durable thermoplastic material.

• Commercial Spec Grade
• Tamper Resistant
• Side Wired

Product Highlights

This tamper-resistant receptacle is designed for commercial use and meets specification grade standards.

Product Information

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: TCR20-W
• Country of Origin: Mexico

Technical Specifications

• Voltage: 125 Volts
• Material: Thermoplastic (Body/Face)
• Certification: NEMA
• Amperage Rating: 20 A
• Grade: Commercial Specification Grade
• NEMA Rating: NEMA 5-20R
• Number of Poles: 2
• Number of Wires: 3
• Temperature Rating: -40 to 60 deg C
• Voltage Rating: 125 VAC
• Horsepower: 1 hp
• Terminal Type: Side Wire
• Type: Duplex Self-Grounding Tamper and Weather Resistant
• Color: White
• Country Of Origin: MX
• Width: 1.2 in
• Height: 46 in
• Length: 1.36 in
• Standard: NEMA (WD 1; WD 6);ANSI (C73);NOM Certified (057);cULus (E13399)
• Application: Commercial
• Lamp Included: No
• Strap Material: Zinc-Plated Steel
• Special Features: Self Grounding; Tamper-Resis
• ECCN: EAR99
• UNSPSC: 39111503
• Color Family: White
• Approval: UL 498/94, CSA C22.2, NOM 057
• Configuration: 5-20R
• Constructional Feature: Tamper Resistant
• Ground Type: Self Grounding
• Wiring: Side
• Poles: 2
• Wires: 3
• AC Horsepower Ratings: Horsepower Rating : 1 HP
• Current Limiting: Full Rated Current
• Dielectric Voltage: Withstands 2000V per UL498
• Grounding: Self-Grounding
• Temperature Rise: Max 30C after 100 cycles OL at 150 percent rated current
• Wire: 3
• Operating Temperature: -40 00b0C to 60 00b0C
• Body Material: Thermoplastic
• Face Material: Thermoplastic
• Ground Clips: Brass
• Grounding Screw: Plated Steel
• Line Contacts: Brass .031 Thick
• Shutter Mechanism: Delrin 00ae Acetal
• Terminal Screws: Plated Steel
• Product ID: Ratings are permanently marked on device
• Screw Terminal Torque: 14-18 in-lbs
• Terminal Accom.: 10-14 AWG
• Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
• Termination: Side Wire
• Wire Type: Solid or Stranded Building Wire
• Device Type: Duplex Receptacle Outlet
• Feature 2: Tamper-Resistant
• Feature 4: Smooth Face
• ANSI: C-73
• NEMA: WD-1 & WD-6
• NOM: 057
• cULus: File E13399
• RoHS Compliant: Yes
• Package Quantity: 1
• Series: Commercial Grade Tamper Resistant Outlet
• Power Plug Type: Type A - 2 pin (North American)
• Connector Type: Plug-In
• Smart Home Compatibility: Not Smart Home Compatible
• Connectivity Technology: electrical wiring
• Total Power Outlets: 2
• Specification Met: NEMA
• Brand Name: Leviton
• Brand Part Number: TCR20-W
• UNSPSC Code: 39120000
• Contact Type: Socket
• Current Rating: 20 A
• Mounting Type: Tabs
• NEMA Type: 5-20R
• Primary Type: Straight Blade
• Unit of Measure: EA
• Wire Size: 10-14 AWG
• Environmental Conditions: V2 Flammability Rated Per UL94
• Contact Material: 0.031 Inch Brass
• Conductor Size: 14-10 AWG
• Dielectric Strength: 2000 Volt
• Style: Duplex
• Item Type: Duplex Receptacle
• Cross Reference Products: TRCR20W, TRCR20W, TR20W
• Flammability: Rated V-2 per UL94
