Product Description

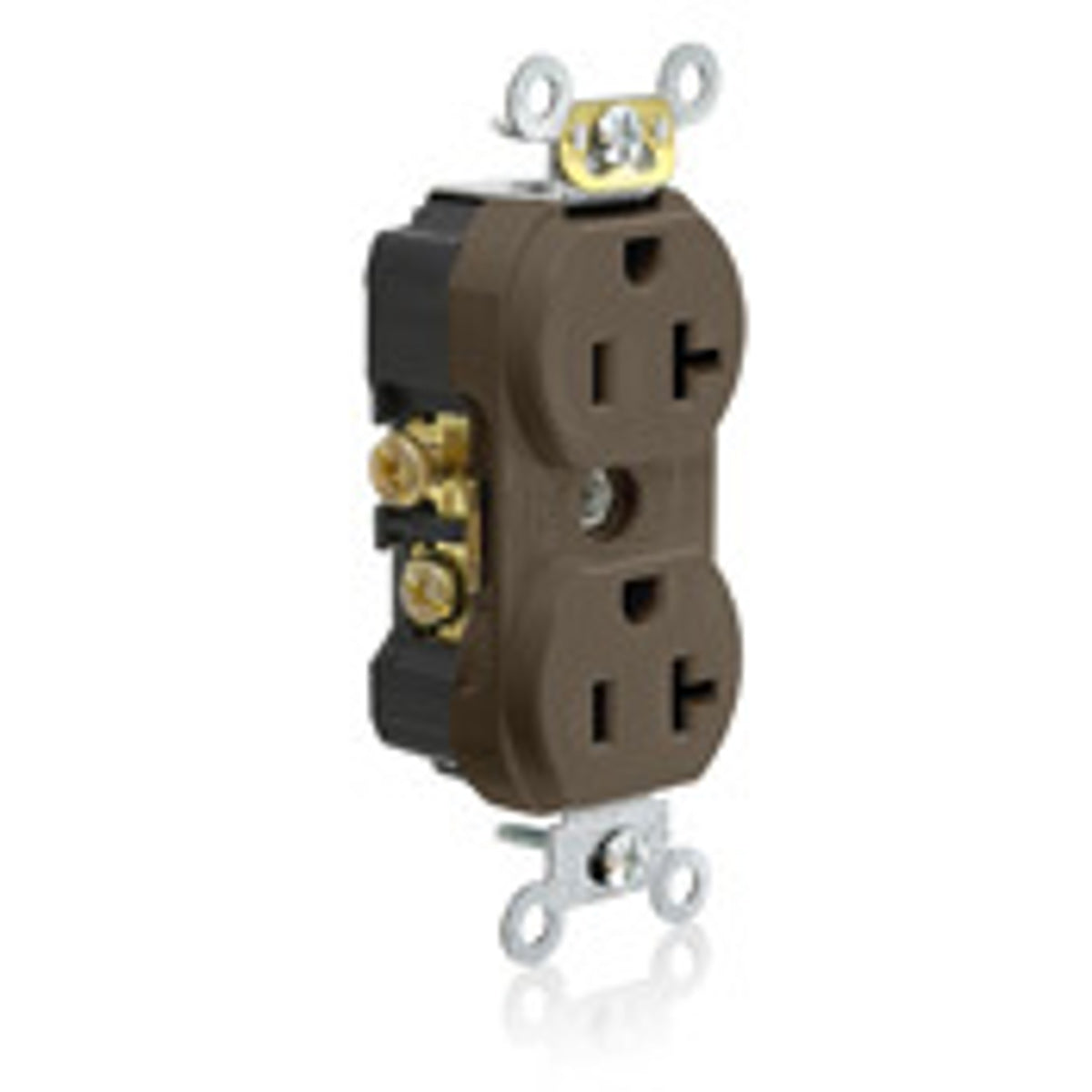

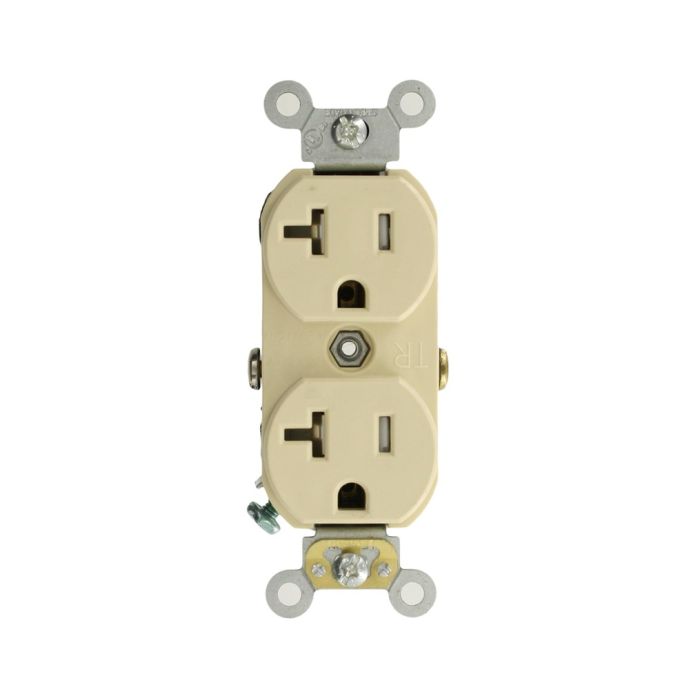

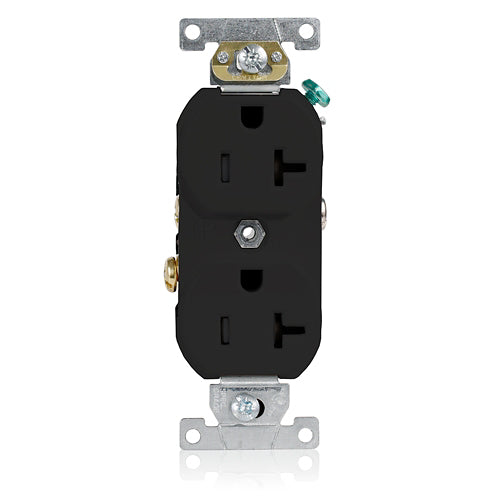

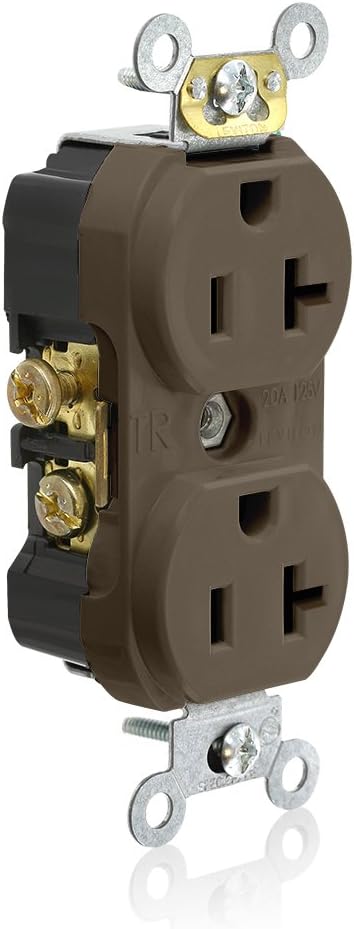

The Leviton TCR20 is a side wired commercial spec grade tamper resistant duplex receptacle. Rated for 20-Amp and 125-volts, this receptacle is ideal for commercial applications. It features a tamper-resistant design, preventing unwanted objects from being inserted. Suitable for commercial and institutional applications, it offers heavy-duty brass power contacts for maximum conductivity and plug retention.
- Commercial Spec Grade
- Tamper Resistant
- Side Wired
Product Highlights
This Leviton duplex receptacle is built to demanding standards for performance and is ideal for high-traffic areas in homes, offices, and schools.
Product Information
Standard Information
-
Brand: LEVITON
-
Manufacturer Part Number: TCR20
-
Country of Origin: Mexico
Technical Specifications
-
Color: Brown
-
Voltage: 125 VAC
-
Material: Thermoplastic
-
Certification: NEMA
-
Batteries Required?: No
-
Catalog Number: TCR20
-
Manufacturer: Leviton
-
Brand: Leviton
-
Country of Origin: Mexico
-
Made in USA: No
-
Amperage Rating: 20 A
-
Application: Commercial
-
Standard: NEMA (WD 1, WD 6);ANSI (C73);NOM Certified (057);cULus (E13399)
-
UPC: 078477655320
-
GTIN: 00078477655320
-
Item Type: Duplex Receptacle
-
Voltage Rating: 125 VAC
-
Grade: Commercial Specification Grade
-
Horsepower: 1 hp
-
Manufacturer Part Number: TCR20
-
NEMA Rating: NEMA 5-20R
-
Number of Poles: 2
-
Number of Wires: 3
-
Standards/Approvals: NEMA WD-1/WD-6|ANSI C-73|NOM 057|cULus File No. E13399
-
Temperature Rating: -40 to 60 deg C
-
Terminal Type: Side Wire
-
Type: Duplex Self-Grounding Tamper and Weather Resistant
-
ANSI [Specifications]: C-73
-
NEMA [Specifications]: WD-1 & WD-6
-
Pole [Specifications]: 2
-
Wire [Specifications]: 3
-
Color [Specifications]: Brown
-
Grade [Specifications]: Commercial Specification Grade
-
cULus [Specifications]: File E13399
-
Voltage [Specifications]: 125 VAC
-
Amperage [Specifications]: 20 A
-
Feature 2 [Specifications]: Tamper-Resistant
-
Feature 4 [Specifications]: Smooth Face
-
Grounding [Specifications]: Self-Grounding
-
Wire Type [Specifications]: Solid or Stranded Building Wire
-
Device Type [Specifications]: Duplex Receptacle Outlet
-
Terminal ID [Specifications]: Brass-Hot, Green-Ground, Silver-Neutral
-
Termination [Specifications]: Side Wire
-
Flammability [Specifications]: Rated V-2 per UL94
-
Ground Clips [Specifications]: Brass
-
Body Material [Specifications]: Thermoplastic
-
Face Material [Specifications]: Thermoplastic
-
Line Contacts [Specifications]: Brass .031 Thick
-
Strap Material [Specifications]: Zinc-Plated Steel
-
Grounding Screw [Specifications]: Plated Steel
-
Terminal Accom. [Specifications]: 10-14 AWG
-
Terminal Screws [Specifications]: Plated Steel
-
Current Limiting [Specifications]: Full Rated Current
-
Temperature Rise [Specifications]: Max 30C after 100 cycles OL at 150 percent rated current
-
Horsepower Rating [Specifications]: 1 HP
-
Shutter Mechanism [Specifications]: Delrin
Acetal
-
Dielectric Voltage [Specifications]: Withstands 2000V per UL498
-
Operating Temperature [Specifications]: -40
C to 60
C
-
Screw Terminal Torque [Specifications]: 14-18 in-lbs
-
Country of Origin (subject to change) [Specifications]: Mexico
-
Amperage: 20 A
-
Current Limiting: Full Rated Current
-
Dielectric Voltage: Withstands 2000V per UL498
-
Grounding: Self-Grounding
-
Pole: 2
-
Temperature Rise: Max 30C after 100 cycles OL at 150 percent rated current
-
Wire: 3
-
Flammability: Rated V-2 per UL94
-
Operating Temperature: -40
C to 60
C
-
Body Material: Thermoplastic
-
Face Material: Thermoplastic
-
Ground Clips: Brass
-
Grounding Screw: Plated Steel
-
Line Contacts: Brass .031 Thick
-
Shutter Mechanism: Delrin
Acetal
-
Strap Material: Zinc-Plated Steel
-
Terminal Screws: Plated Steel
-
Product ID: Ratings are permanently marked on device
-
Screw Terminal Torque: 14-18 in-lbs
-
Terminal Accom.: 10-14 AWG
-
Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
-
Termination: Side Wire
-
Wire Type: Solid or Stranded Building Wire
-
Device Type: Duplex Receptacle Outlet
-
Feature 2: Tamper-Resistant
-
Feature 4: Smooth Face
-
ANSI: C-73
-
NEMA: WD-1 & WD-6
-
NOM: 057
-
cULus: File E13399
-
AC Horsepower Ratings: Horsepower Rating : 1 HP
-
RoHS Compliant: Yes
-
Color/Finish: Ivory
-
Package Quantity: 1
-
Amperage (A): 20 A
-
Series: Commercial Grade Tamper Resistant Outlet
