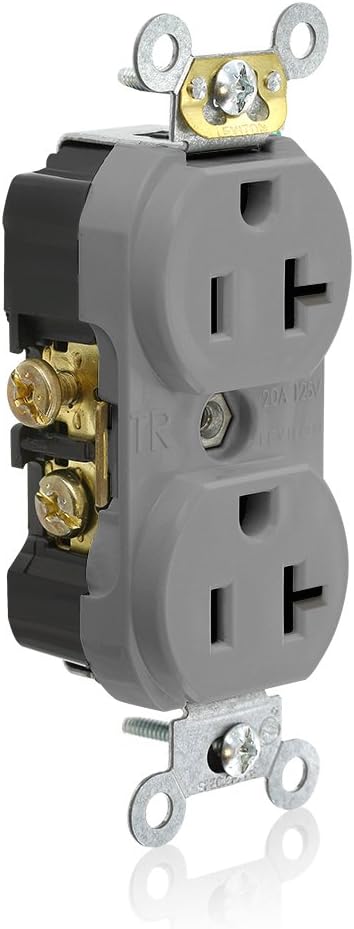

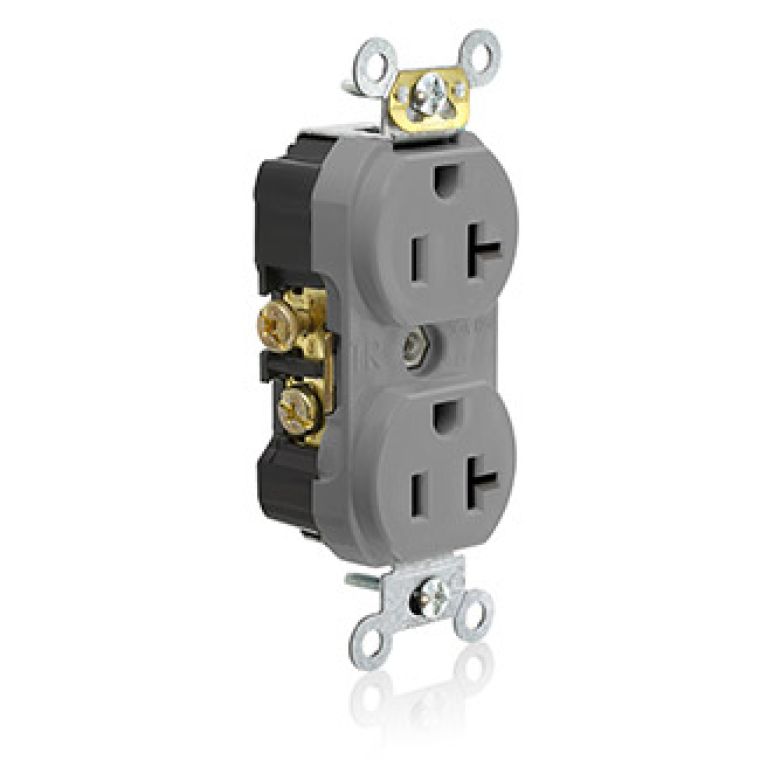

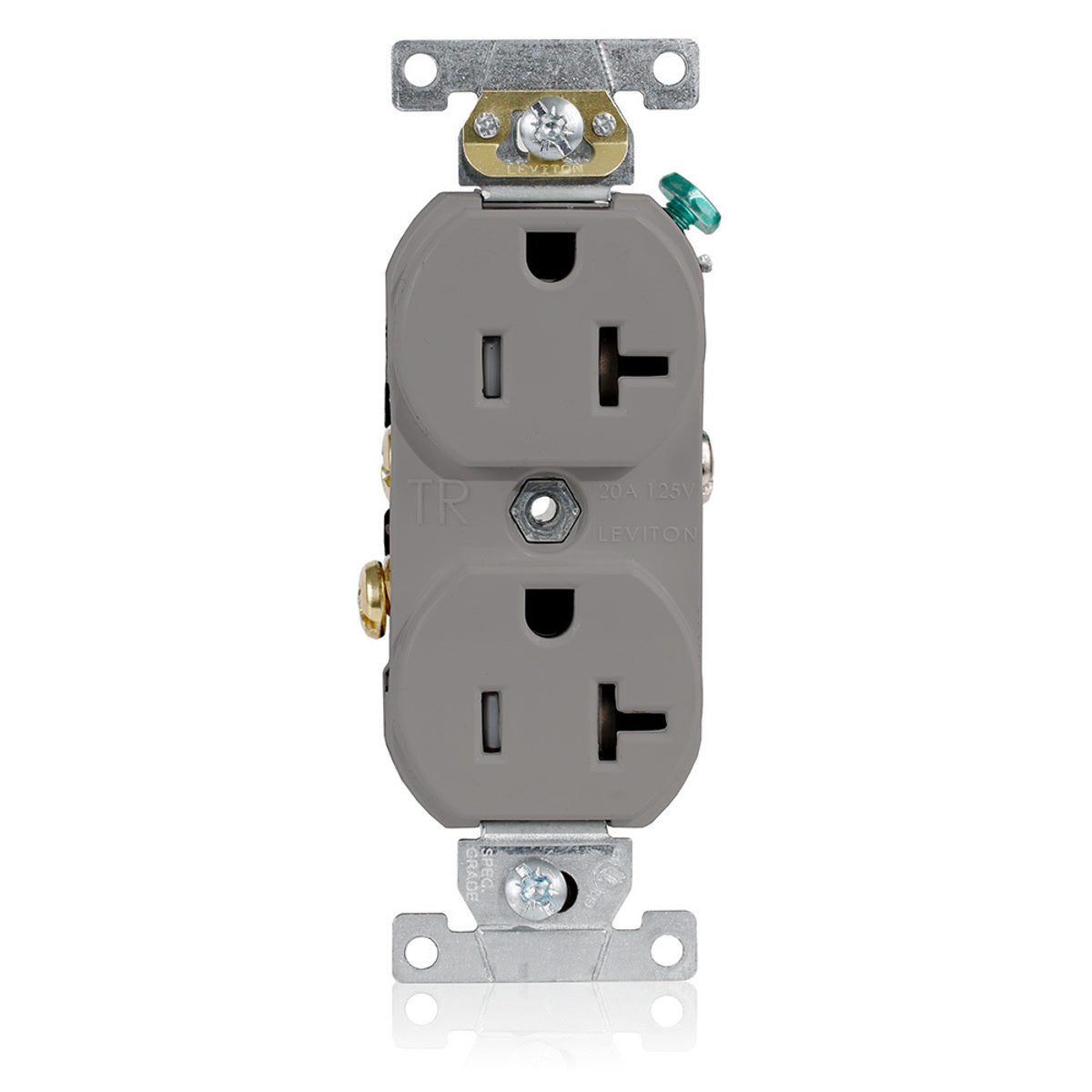

Leviton TCR20-GY Commercial Spec Grade Tamper Resistant Duplex Receptacle 20-Amp 125-volt

Product Description

The Leviton TCR20-GY is a side wired commercial spec grade tamper resistant duplex receptacle. Rated for 20-Amp and 125-volt, this receptacle is ideal for commercial applications. It features a thermoplastic body and face for durability.

• Side Wired
• Commercial Spec Grade
• Tamper Resistant

Product Highlights

This Leviton duplex receptacle is built to withstand the demands of commercial and institutional applications. It has heavy-duty brass power contacts for maximum conductivity and plug retention.

Product Information

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: TCR20-GY
• Country of Origin: Mexico

Technical Specifications

• Voltage: 125 Volts
• Material: Thermoplastic
• Certification: NEMA
• Compatible Devices: Desktop
• Batteries Required?: No
• Included Components: TCR20-GY
• NEMA: WD-1
• Type: Tamper-Resistant
• Brand: Leviton
• Grade: Commercial
• Style: Duplex
• Amperage: 20 Amp
• Standard: ANSI C-73
• Enclosure: WD-6
• Grounding: Self-Grounding
• Sub Brand: TAMPER RESISTANT COMMERCIAL R
• Wire Type: Solid or Stranded Building Wire
• Dielectric: 2000 V
• Horsepower: 1 hp
• Wire Count: 3
• Device Type: Duplex Receptacle Outlet
• Applications: Commercial
• Body Material: Thermoplastic
• Face Material: Thermoplastic
• Number of Poles: 2 Pole
• Number of Wires: 3 Wire
• Temperature Rise: Max 30C after 100 cycles OL at 150 percent rated current
• Termination Type: Side Wire
• Flamability Class: Rated V-2 Per UL94
• Operating Temperature: -40 degrees C
• Catalog Number: TCR20-GY
• Manufacturer: Leviton
• Made in USA: No
• Amperage Rating: 20 A
• Application: Commercial
• Special Features: 10-Year Limited Warranty, Country of Origin Mexico, Self Grounding, Tamper-Resistant, Self Grounding
• Item Type: Duplex Receptacle
• Voltage Rating: 125 VAC
• Manufacturer Name: Leviton Mfg. Company, Inc
• Manufacturer Part Number: TCR20-GY
• UNSPSC: 39121406
• Energy Star Flag: No
• RoHS Flag: Contact manufacturer
• Terminal Connection: Side Wired
• NEMA Configuration: NEMA 5-20R
• Maximum Load Capacity: 1 hp
• Strap Material: Zinc Plated Steel
• Environmental Conditions: V2 Flammability Rated Per UL94
• Contact Material: 0.031 Inch Brass
• Conductor Size: 14-10 AWG Solid/Stranded
• Temperature Rating: -40 to 60 deg C
• Standards: cULus E13399 Listed, NEMA WD-1 and WD-6, ANSI C-73, NOM 057 Certified
• Horsepower Rating: 1 HP
• Current Limiting: Full Rated Current
• Dielectric Voltage: Withstands 2000V per UL498
• Pole: 2
• Wire: 3
• Flammability: Rated V-2 per UL94
• Screw Terminal Torque: 14-18 in-lbs
• Terminal Accom.: 10-14 AWG
• Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
• Termination: Side Wire
• ANSI: C-73
• NOM: 057
• cULus: File E13399
• Series: Commercial Grade Tamper Resistant Outlet
• ADI Part Number: LV-TCR20GY
• Product Name: Tamper-Resistant Duplex Receptacle, 20 Amp, 125 Volt
• Product Type: Power Socket
• Receptacle Type: NEMA 5-20R
• Current Rating: 20 A
• Power Plug Type: Type A - 2 pin (North American)
• Connector Type: Plug-In
• Smart Home Compatibility: Not Smart Home Compatible
• Total Power Outlets: 2
• Specification Met: NEMA
