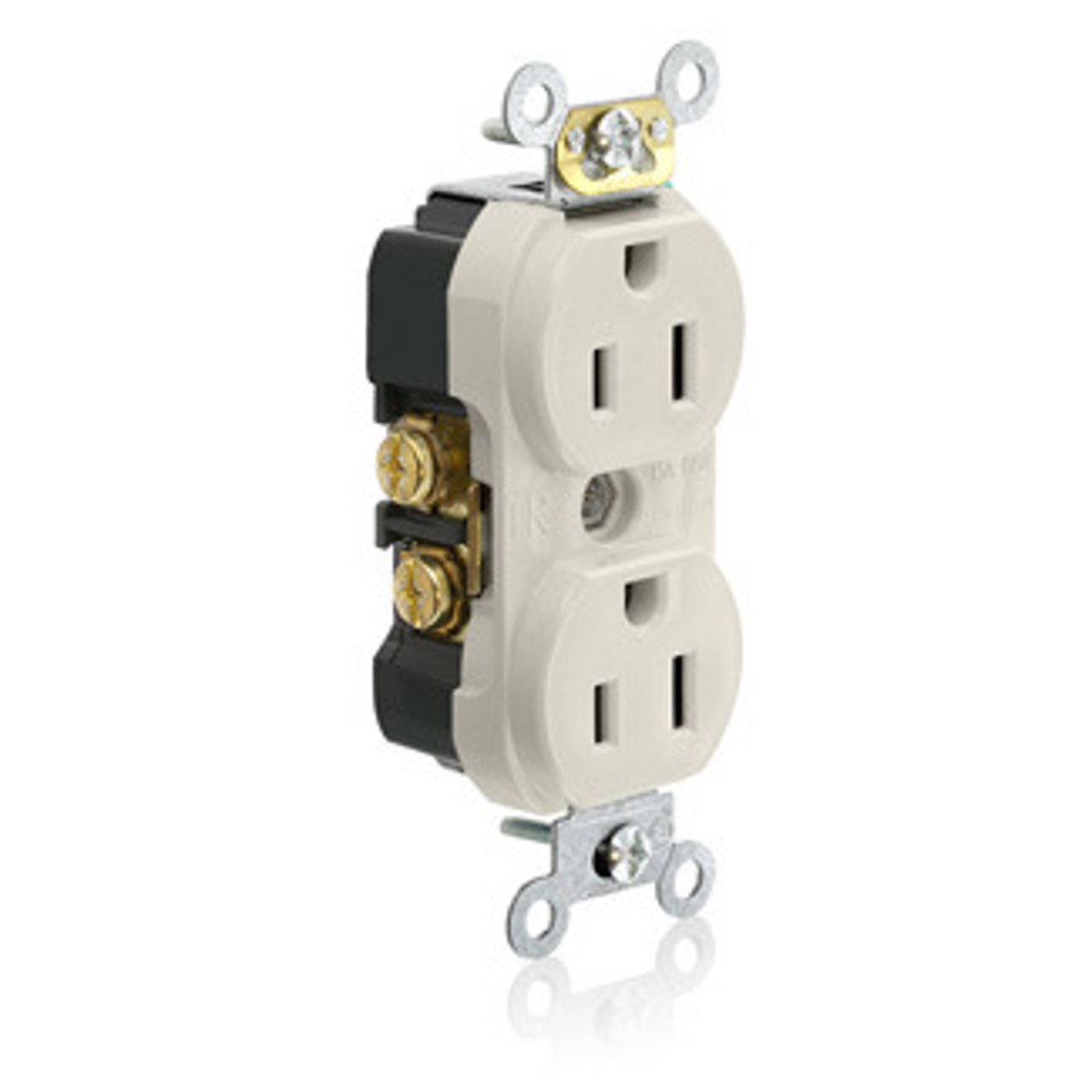

Leviton TBR15-T 15 Amp 125 Volt Narrow Body Duplex Receptacle Straight Blade NEMA 5-15R

Product Description

Leviton TBR15-T is a 15 amp and 125 volt narrow body duplex receptacle designed for commercial applications. This straight blade receptacle features a tamper-resistant design and self-grounding mechanism. The receptacle is suitable for installation in a variety of commercial settings.

• 15 amp and 125 volt rated
• Tamper-resistant and self-grounding
• Suitable for back and side wiring

Product Highlights

This receptacle meets NEMA 5-15R specifications, making it ideal for institutional and commercial use.

Product Information

Standard Information

• Catalog Number: TBR15-T
• Manufacturer: Leviton

Technical Specifications

• Country of Origin: Mexico
• Amperage Rating: 15 A
• Voltage Rating: 125 VAC
• Dimensions: 46 inches H x 1.56 inches W x 19 inches D
• Material: Nylon
• NEMA Rating: 5-15R
• Connection Type: Back and Side Wired
• Temperature Rating: -40 to 60 degrees Celsius
• Flammability Rating: Rated V-2 per UL94
• Number of Outlets: 2
• Number of Poles: 2
• Number of Wires: 3
• Standard Compliance: UL Listed, CSA Certified
