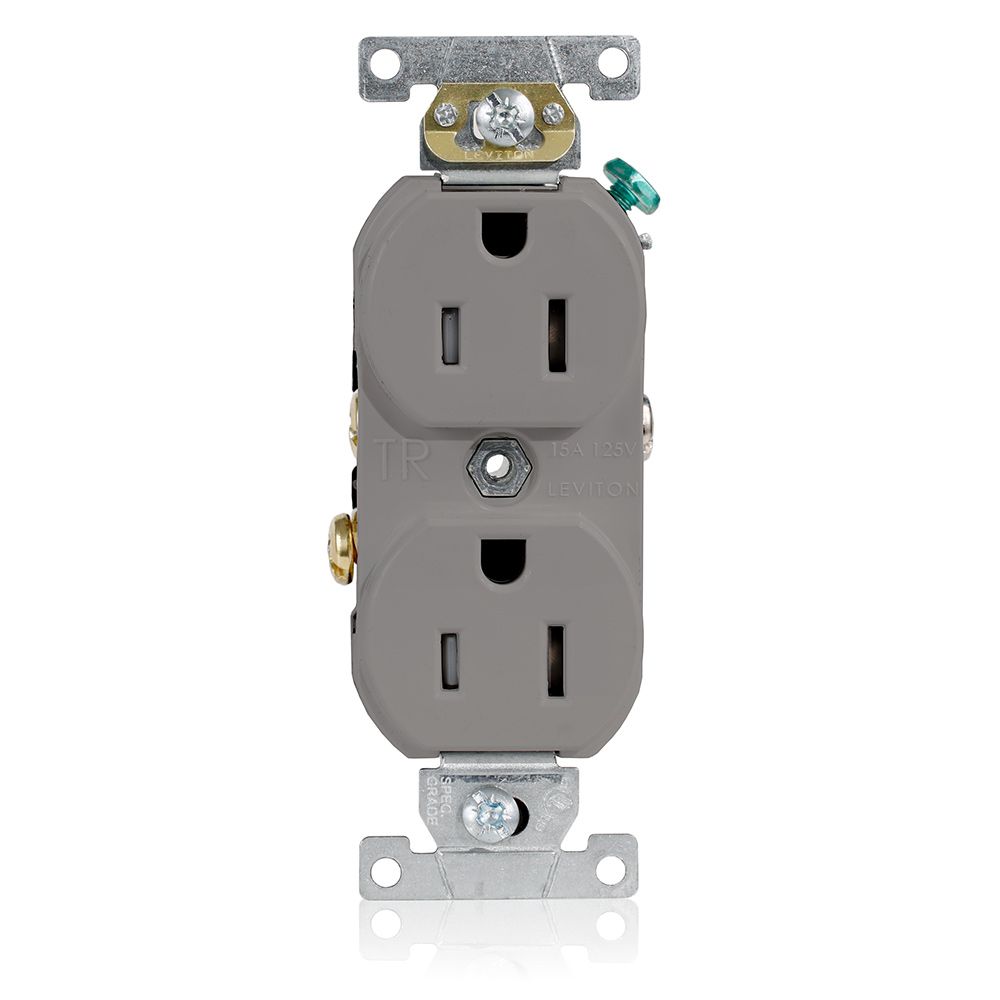

Leviton TBR15-GY Duplex Receptacle 15 Amp 125 Volt NEMA 5-15R

Product Description

The Leviton TBR15-GY is a duplex receptacle designed for commercial use. This receptacle has a rating of fifteen amps and operates at one hundred twenty-five volts. It features a tamper-resistant design, self-grounding, and can be wired from the back or side. The product meets NEMA 5-15R standards.

• Commercial specification grade receptacle
• 15 amp, 125 volt ratings
• Self-grounding and tamper-resistant

Product Highlights

This receptacle is ideal for various commercial applications, ensuring safety and reliability.

Product Information

Standard Information

• Brand: Leviton
• MPN: TBR15-GY

Technical Specifications

• Amperage Rating: 15 A
• Voltage Rating: 125 VAC
• NEMA Rating: 5-15R
• Number of Poles: 2
• Number of Wires: 3
• Temperature Rating: -40 to 60 degrees C
• Dimensions: 46 H x 1.56 W x 19 D inches
• Material: Nylon
• Connection Type: Back and Side Wired
• Country of Origin: Mexico
• Standard Compliance: NEMA, ANSI C-73, UL Listed
