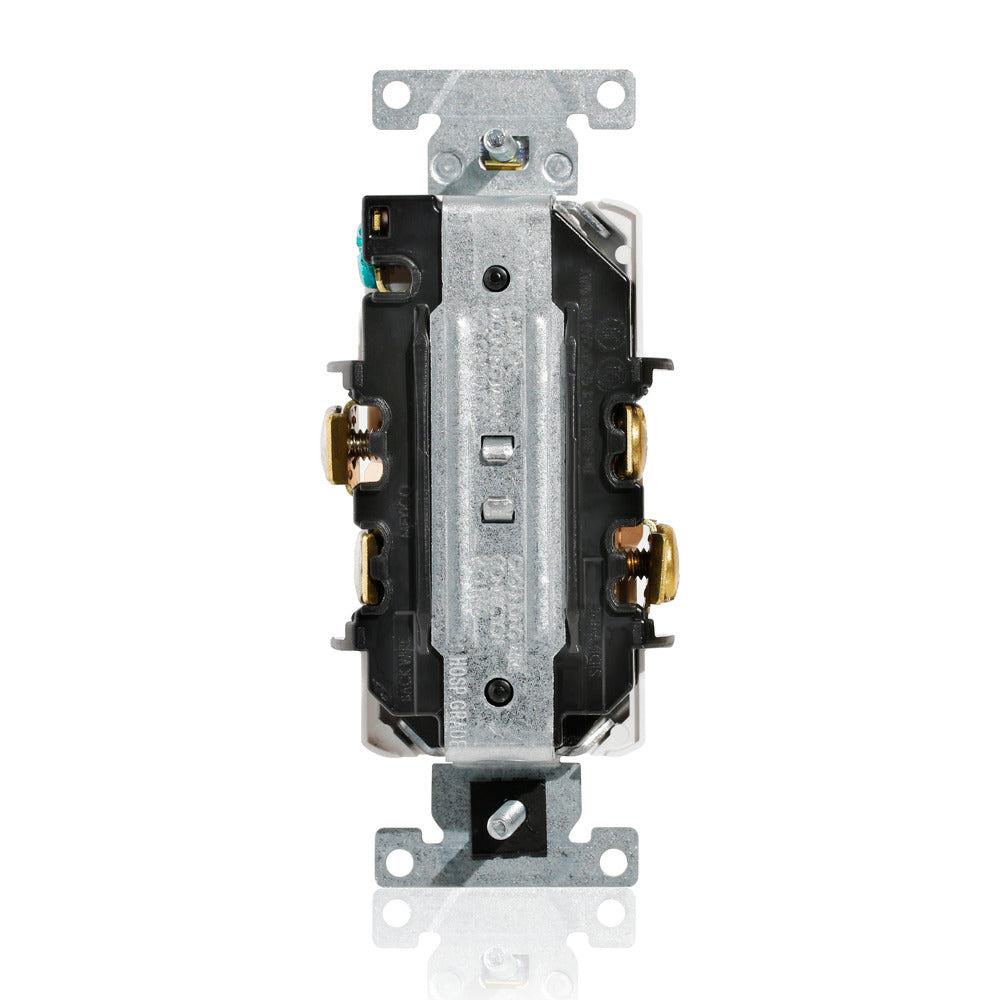

Leviton T8300-IGG Duplex Receptacle, Tamper-Resistant, Hospital Grade, 20A-125V

Product Description

The Leviton T8300-IGG is a tamper-resistant duplex receptacle designed for hospital-grade applications. This receptacle supports two poles and three wires and is rated for 20 amps at one hundred twenty-five volts. Its isolated ground feature makes it suitable for use in sensitive environments such as medical facilities.

• Hospital grade duplex receptacle with isolated ground
• Compliant with NEMA 5-20R standards
• Back and side wired for installation flexibility

Product Highlights

This receptacle is engineered for durability and safety in healthcare and educational settings, providing reliable power connections.

Product Information

Standard Information

• Brand: Leviton
• Type: Duplex receptacle

Technical Specifications

• Catalog Number: T8300-IGG
• Amperage Rating: 20 A
• Voltage Rating: 125 VAC
• Number of Poles: 2
• Number of Wires: 3
• Color: Gray
• Country of Origin: Mexico
• Temperature Rating: -40 to 75 degrees Celsius
• Material: PBT Polyester Blend
