Leviton T5832-B BR Combi Dup Rec/Usb Charger 20A125V

Product Description

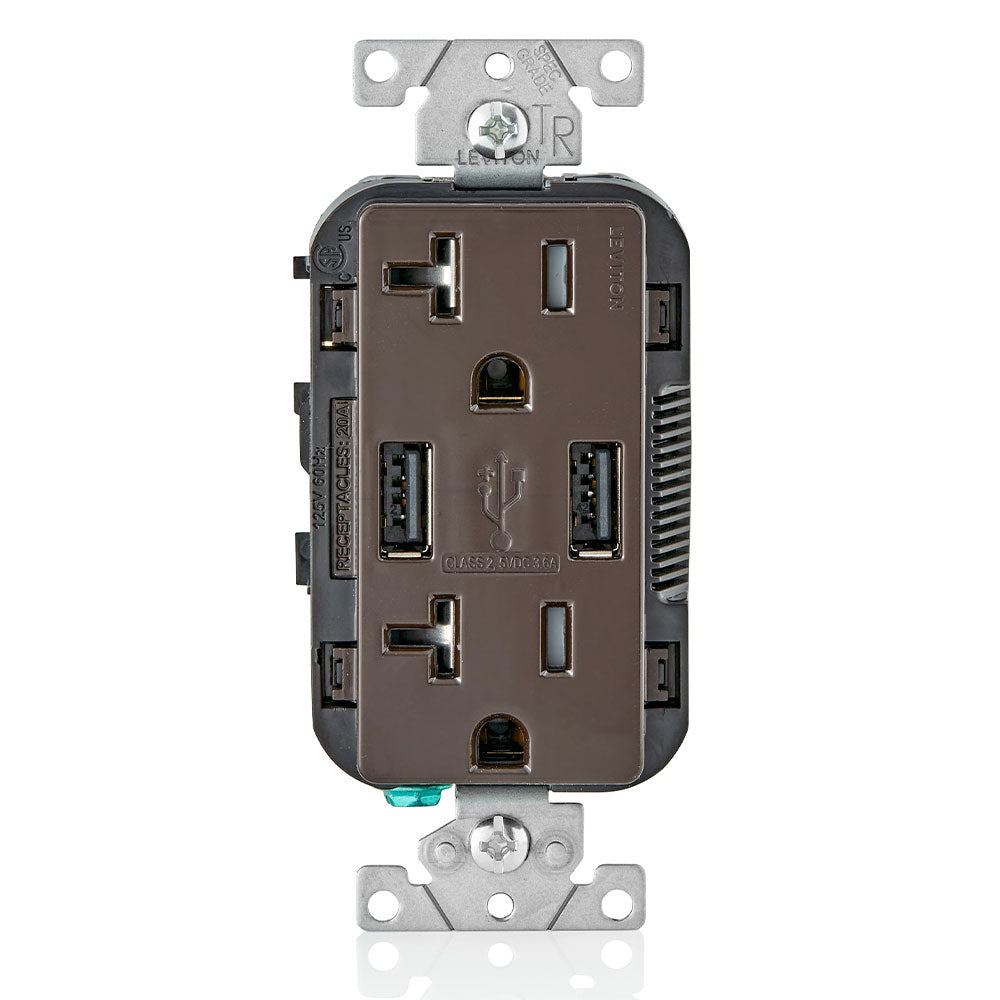

The Leviton T5832-B is a combination duplex receptacle/outlet and USB charger. This 20 amp, 125 volt Decora tamper-resistant receptacle/outlet features a NEMA 5-20R configuration and 3.6 amp, 5VDC, 2.0 Type A USB chargers. It is side wired and back wired.

• Built-in smart chip optimizes the charge for the individual device’s charging requirement.
• Two high-powered charging ports with 3.6A of charging power.
• Upgrade existing outlets to charge up to two USB powered electronics at once.

Product Highlights

This Leviton USB charger/tamper-resistant duplex receptacle simplifies charging electronic devices, eliminating the need for USB adapters and providing a centralized charging location.

Product Information

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: T5832-B
• Country of Origin: China

Technical Specifications

• Brand: LEVITON
• Model / MPN: T5832-B
• MPN: T5832-B
• UPC: 078477764367
• Nema: 5-20R
• Flammability: Rated V-0 per UL 94
• Grounding: Grounding
• Horsepower Rating: 20A-1 HP
• Operating Temperature: -10 C to 40 C
• Ratings: 20A-125V
• Body Material: Thermoplastic
• Cover Material: Thermoplastic
• Strap Material: Steel
• Product ID: Stamped on Strap
• Terminal Accom.: 14-12 AWG
• Terminal ID: Brass-Hot Black-Hot White-Neutral Green-Gnd
• Termination: Back & Side
• Torque Range: 14 – 18 in.-lbs
• Amperage: 20 A
• Grade: Residential/Commercial Specification Grade
• Voltage: 125 VAC
• Wallplate: Not Included
• FCC Part 15: Class B for Residential Compliance
• Listed: cCSAus
• NOM: 057
• UL 1310: Yes
• UL 498: Yes
• Type: Type A/A Duplex Receptacle
• Connector Type: USB
• Connectivity Technology: USB
• Total Power Outlets: 1
• USB Ports: Two USB 3.6A ports
• Plugs: Tamper resistant (TR) plugs
• Size: Decora size
• Terminals: Side stainless terminals
• Terminal Wire: 14 or 12 AWG
• Thickness: Only 1.68" thick
• Installation: Install using a licensed electrician
