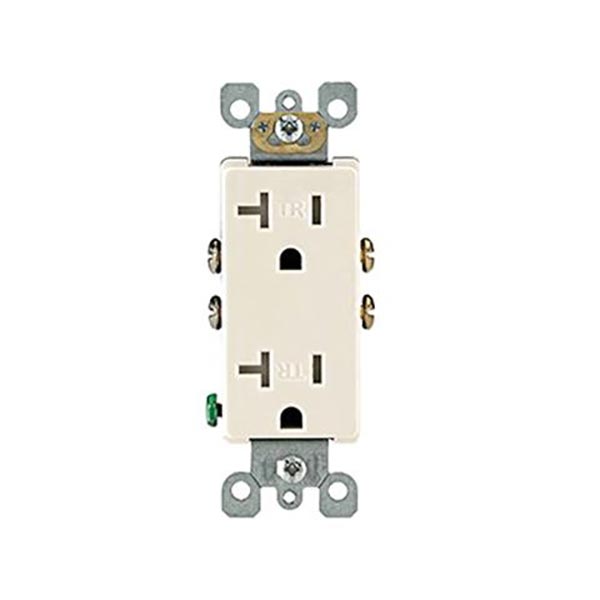

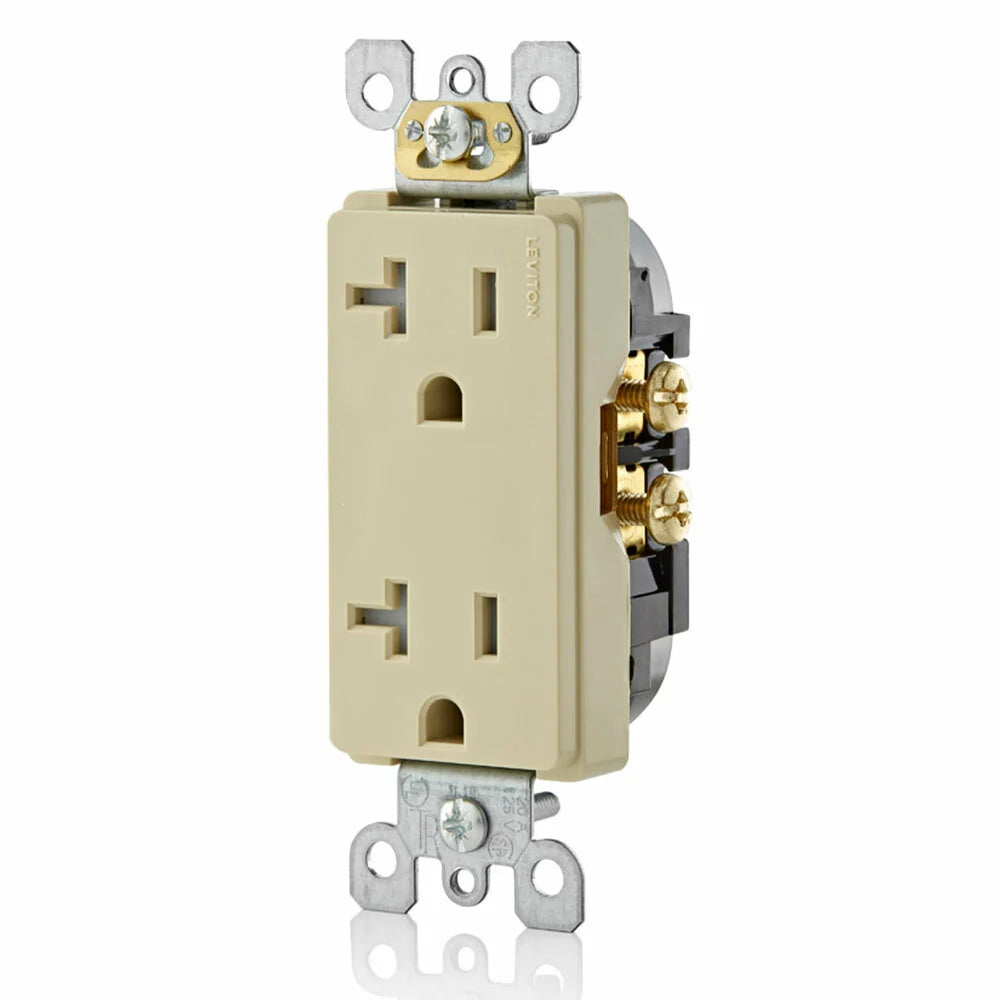

Leviton T5825-I Tamper-Resistant Duplex Receptacle 20 Amp 125 Volt NEMA 5-20R

Product Description

The Leviton T5825-I is a tamper-resistant duplex receptacle designed for residential use. It features a durable thermoplastic construction and offers a 20 Amp current rating with a voltage of 125 Volts. The receptacle's design promotes quick installation, making it suitable for homes, offices, schools, and more.

• Tamper-resistant design for added safety
• Compatible with 12 AWG copper or copper-clad wire
• Includes a shutter mechanism for locking out foreign objects

Product Highlights

Reliable and easy-to-install, this receptacle enhances safety and efficiency in any electrical setting.

Product Information

Standard Information

• Brand: Leviton
• MPN: T5825-I

Technical Specifications

• Amperage Rating: 20 Amps
• Voltage Rating: 125 Volts
• NEMA Configuration: 5-20R
• Material: Thermoplastic
• Dimensions: 4.2 inches H x 1.351 inches W x 1.184 inches D
• Number of Wires: 3
• Number of Poles: 2
• Country of Origin: China
• Standards/Certifications: UL Listed, CSA Certified, NOM Approved
• Temperature Rating: -40 to 60 degrees C
