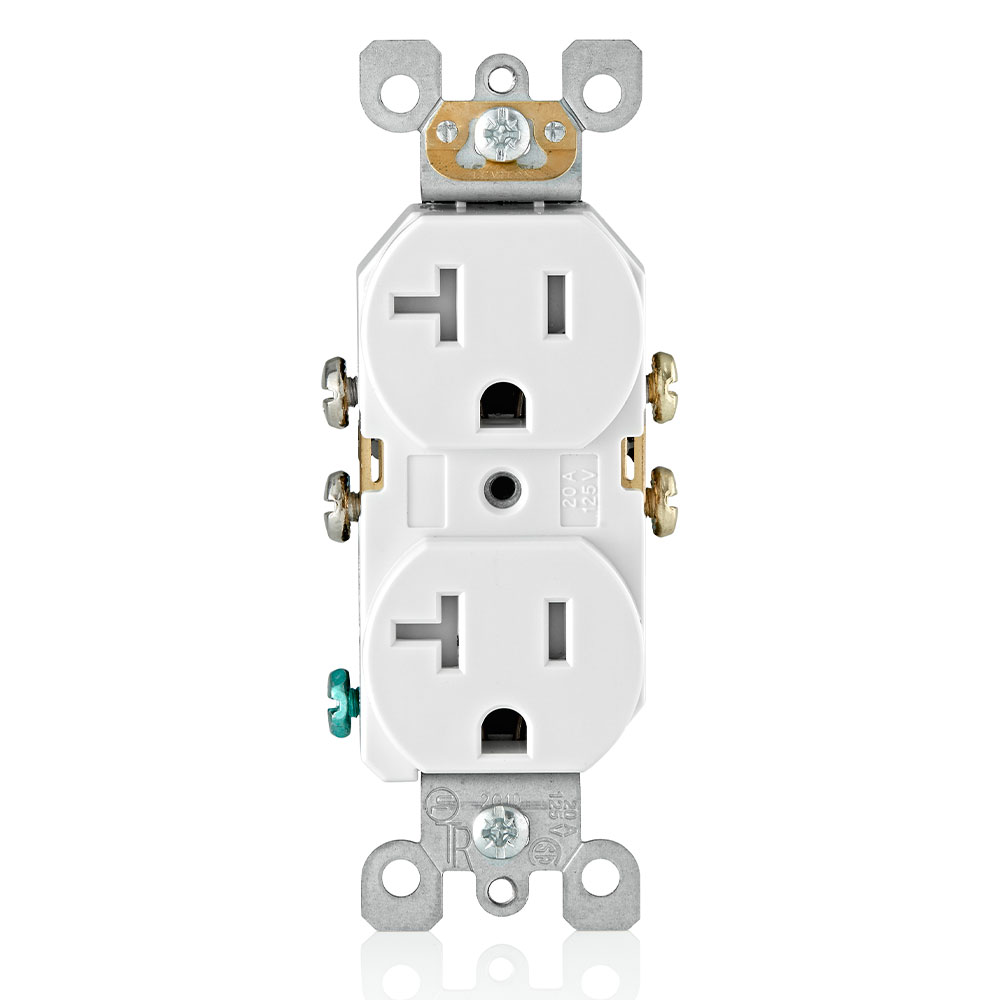

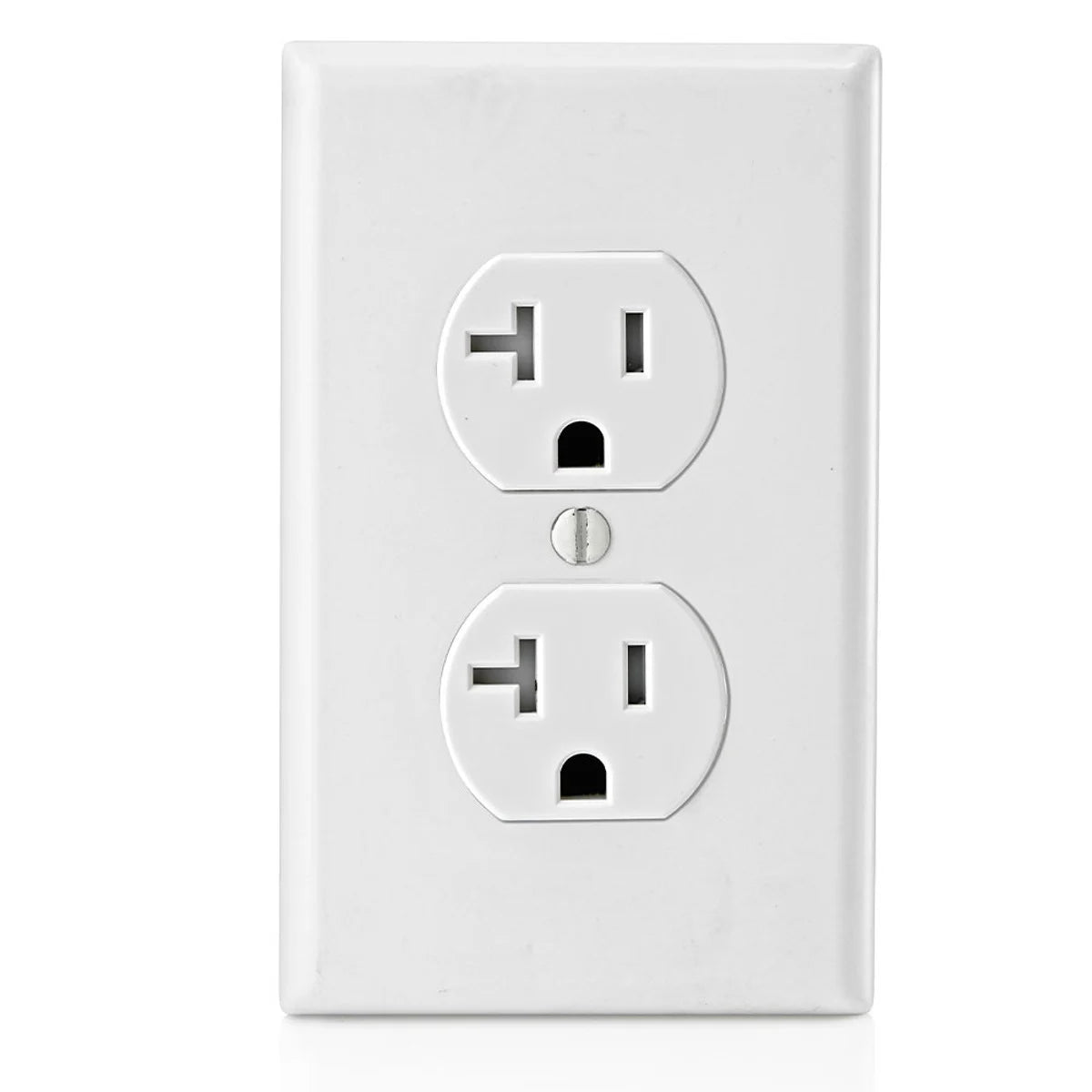

Leviton T5820-W Tamper-Resistant Duplex Receptacle 20A 125V NEMA 5-20R

Product Description

The Leviton T5820-W is a tamper-resistant duplex receptacle designed for residential use. It operates at twenty amperes and one hundred twenty-five volts, complying with NEMA 5-20R standards. This unit features a self-grounding mechanism and a side wired connection for easy installation.

• 20 Amp and 125 Volt ratings
• Self-grounding design
• Meets NEC standards with TR symbol for tamper resistance

Product Highlights

Ideal for residential applications, the receptacle includes a mechanical shutter mechanism that prevents access to contacts unless a two-pronged plug is used. This enhances safety by minimizing the risk of electrical shocks from foreign objects. The device is constructed from impact-resistant thermoplastic material, ensuring durability and longevity.

Product Information

Standard Information

• Brand: Leviton
• Catalog Number: T5820-W

Technical Specifications

• Amperage Rating: 20 Amp
• Voltage Rating: 125 Volt
• NEMA Configuration: 5-20R
• Material: Thermoplastic
• Dimensions: 1.351 in (Length) x 1.184 in (Width) x 4.2 in (Height)
• Grounding Type: Self-Grounding
• Number of Poles: 2
• Number of Wires: 3
