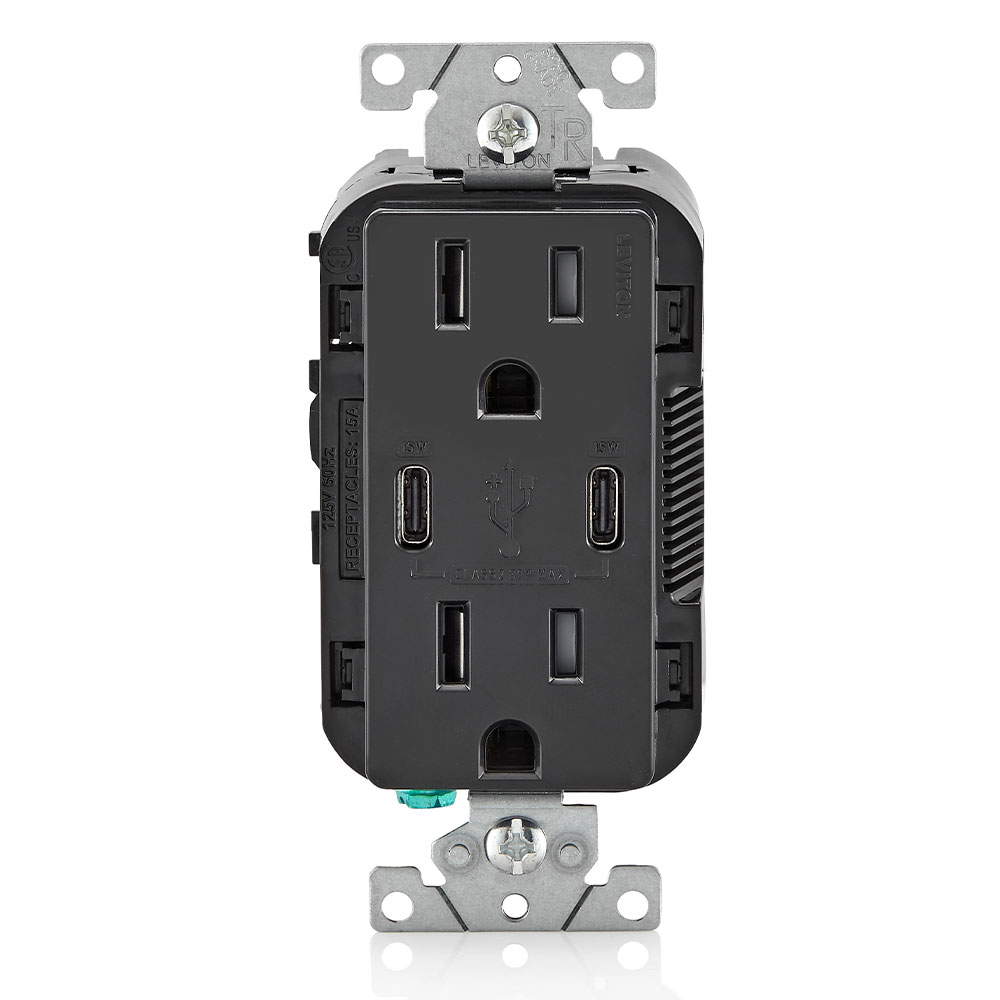

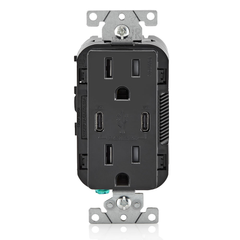

Leviton T5637-E Dual Usb-c Outlet 30W 15A Tr Charger Black

Product Description

The LEVITON T5637-E is a Decora-style tamper-resistant receptacle with integrated dual Type-C USB charging ports, rated at 30 watts (6 amps) combined USB output. The 15-amp, 125-volt NEMA 5-15R outlet provides standard AC power while both USB-C ports simultaneously deliver non-PD charging current to connected devices. The tamper-resistant shutter mechanism meets NEC requirements for residential installations. This unit is finished in black and supports both side-wired and back-wired termination, giving electricians flexibility during rough-in and trim-out. It is a direct replacement option in any standard single-gang or multi-gang Decora wallplate installation.

This receptacle is suited for residential and light commercial installations where USB device charging is needed at the outlet level without a separate charging block. Common install locations include bedrooms, home offices, kitchens, hotel guest rooms, and commercial break rooms. The dual Type-C ports handle simultaneous charging for phones, tablets, and other USB-C devices. The non-PD (non-Power Delivery) USB output is appropriate for standard charging loads rather than fast-charge protocols.

Key Features

• Dual Type-C USB charging ports with 30W (6A) combined output, non-PD
• 15A, 125V NEMA 5-15R tamper-resistant AC outlet
• Tamper-resistant shutters on AC receptacle meet NEC child-safety requirements
• Supports side-wired and back-wired installation
• Decora form factor — compatible with standard Decora wallplates
• Finish: Black

Compatibility

Designed as an OEM-style replacement or new-construction USB outlet for standard single-gang Decora receptacle installations requiring integrated Type-C USB charging capability.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the NEC and applicable local codes. Turn off the circuit breaker and verify the circuit is de-energized with a non-contact voltage tester before any wiring. Both side-wired and back-wired termination options are supported — use the method appropriate to the wire gauge and box fill calculation. Do not exceed the 15-amp circuit rating or connect to circuits wired for voltages above 125 volts.

Technical Specifications

• AC Outlet Rating: 15A, 125V
• NEMA Configuration: 5-15R
• USB Port Type: Dual Type-C
• USB Charging Output: 30W (6A) combined, non-PD
• Tamper-Resistant: Yes
• Wiring Method: Side-wired and back-wired
• Color/Finish: Black
• UPC: 078477000908

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: T5637-E
