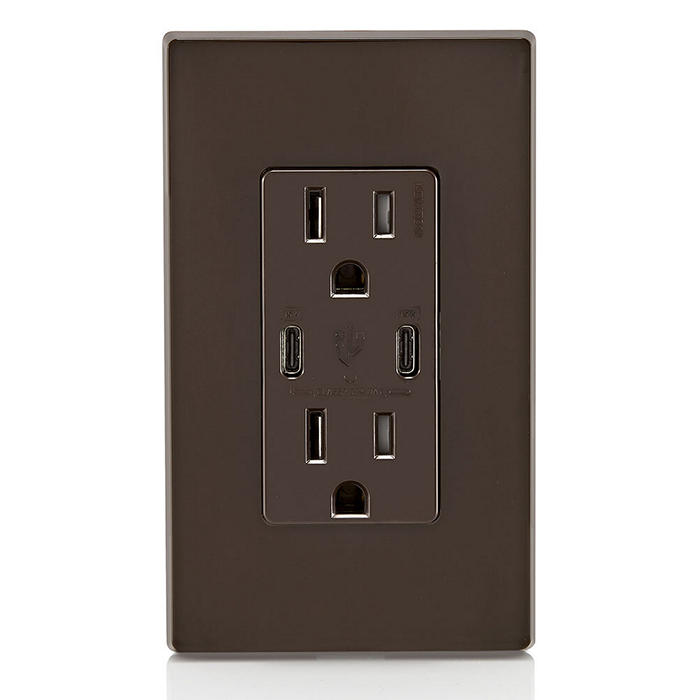

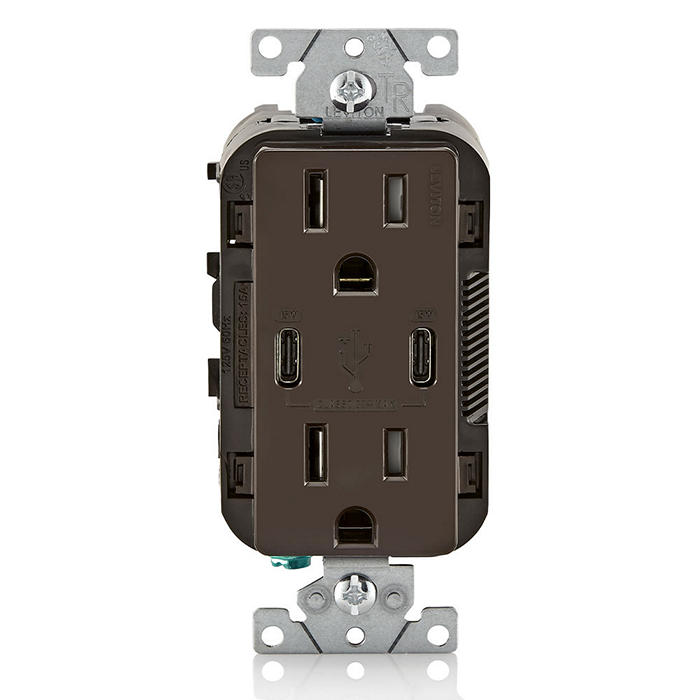

Leviton T5637-B Br 15A Tr Recpt Usb Type C Non-Pd Chrg

Product Description

The LEVITON T5637-B is a 15A tamper-resistant receptacle with a USB Type-C non-PD charging port. This Decora outlet features two high-powered charging ports that deliver a combined total of 6A charging current and 30 watts of power. Built-in protection helps prevent devices from overheating.

• Charges most Type-C devices as well as Type A devices (adapter required)
• Adapter-free charging of Type-C devices for a sleek and uncluttered appearance
• No data transfer capability

Product Highlights

Ideal for residential and commercial applications, this outlet provides convenient USB charging alongside standard electrical access.

Product Information

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: T5637-B
• Country of Origin: China

Technical Specifications

• Catalog Number: T5637-B
• Manufacturer: Leviton
• Brand: Leviton
• Country of Origin: China
• Made in USA: No
• UPC: 078477000915
• GTIN: 00078477000915
• Nema: 5-15R
• Amperage: 15 A
• Body Material: Thermoplastic
• Cover Material: Thermoplastic
• Grounding: Grounding
• Horsepower Rating: 15A-1/2 HP
• Ratings: 15A-125V
• Strap Material: Steel
• Voltage: 125 VAC
• Flammability: Rated V-0 per UL 94
• Operating Temperature: -10 C to 40 C
• Product ID: Stamped on Strap
• Terminal Accom.: 14-12 AWG
• Terminal ID: Brass-Hot Black-Hot White-Neutral Green-Gnd
• Termination: Back & Side
• Torque Range: 14 – 18 in.-lbs
• Grade: Residential/Commercial Specification Grade
• Product Type: Outlet/USB Combo
• Type: Type C/C with Duplex Receptacle
• Wallplate: Not Included
• FCC Part 15: Class B
• Listed: cCSAus
• NOM: 057
• UL 1310: Yes
• UL 498: Yes
• Compatible Devices: Smartphone, Tablet
• Power Plug Type: Type C
• Wattage: 30 watts
• Connectivity Technology: USB
• Total Power Outlets: 2
• Specification Met: UL
• Package Quantity: 1
• Series: Dual USB C Shared 30W (6A)
