Leviton T5635-W 15A TR Recpt USB Type C

Product Description

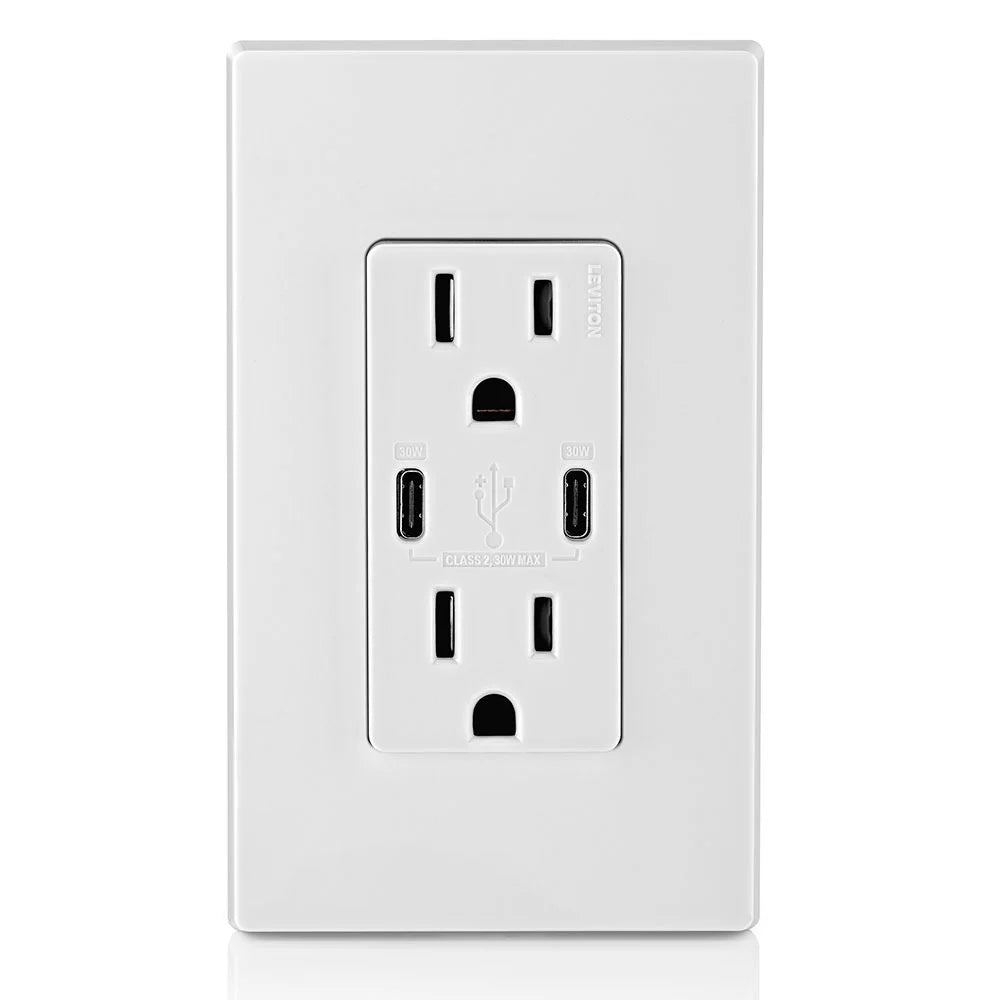

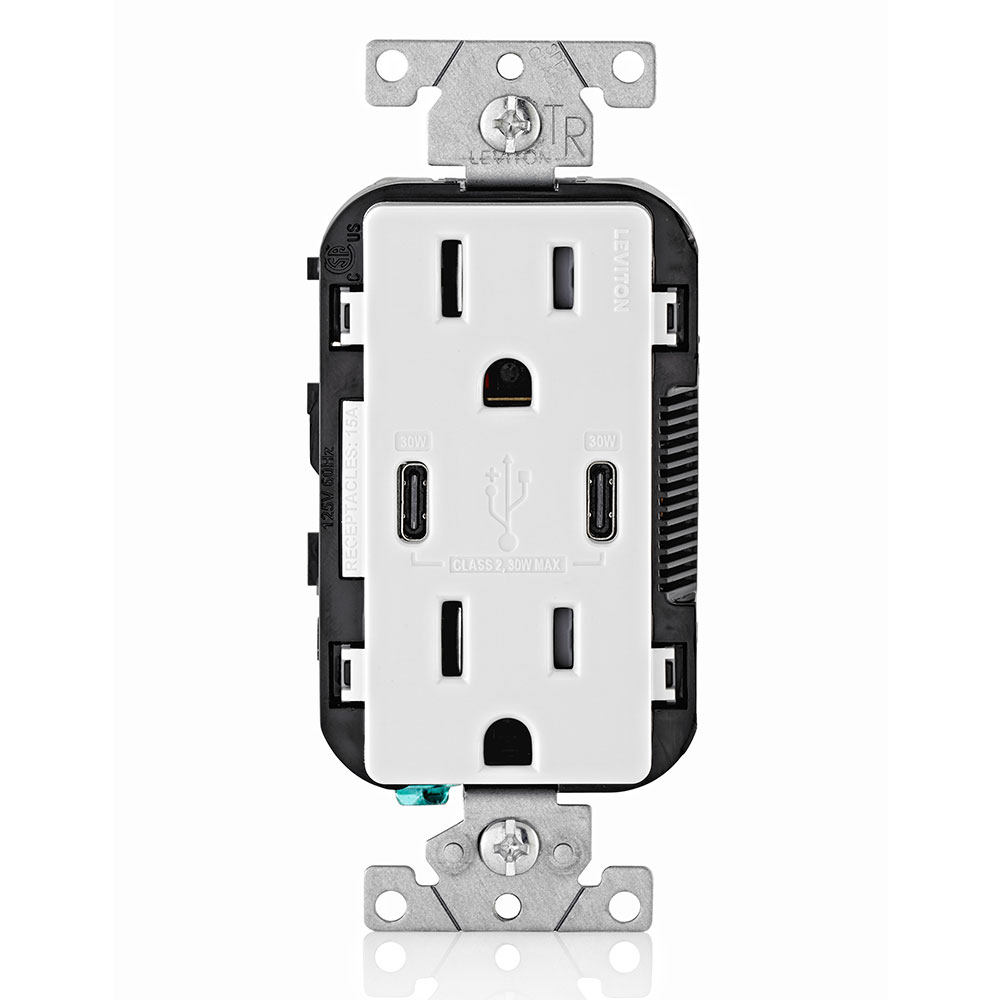

The Leviton T5635-W is a decora tamper-resistant outlet with a power delivery USB charger. It is rated at 15 Amps and 125 Volts. This product includes dual Type-C/C USB ports for device charging. The outlet accommodates side and back wire connections and is designed in white thermoplastic material.

• 15 Amp, 125 Volt, NEMA 5-15R rated.
• Dual Type-C USB ports with a total of 30 watts power output.
• Requires 14-12 gauge wire.

Product Highlights

This charging outlet is suitable for residential and commercial applications, including kitchens, offices, and dormitories.

Product Information

Standard Information

• Brand: Leviton
• MPN: T5635-W

Technical Specifications

• Catalog Number: T5635-W
• Voltage: 125 VAC
• Amperage: 15 Amp
• USB Output: 6 Amp
• USB Type: Type-C
• Material: Thermoplastic
• Connection Method: Back Wire, Side Wire
• Operating Temperature: -10 to 40 degrees C
• Measurements: 4.04 inches H x 1.73 inches W x 1.76 inches D
• Weight: 0.26 lbs
