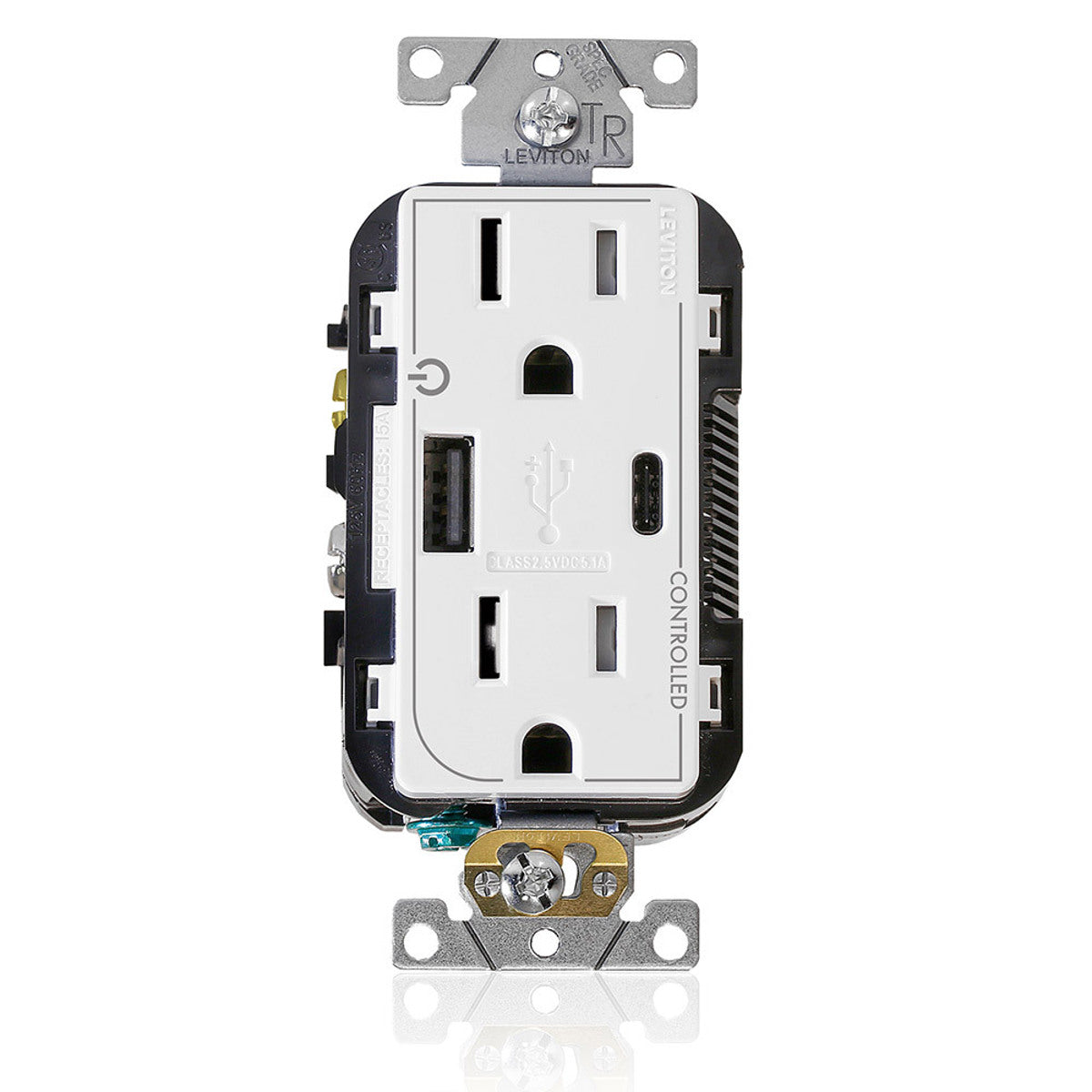

Leviton T5633-2W Marked Controlled USB AC Receptacle 15A

Product Description

The Leviton T5633-2W is a 15A marked controlled USB AC receptacle. Ideal for commercial applications including office buildings, airport lounges, restaurants, college dormitories, hotels, and cafes. It features two high-powered charging ports deliver a combined total of 5.1A charging current and 25+ watts of power.

• Ideal for new or retro-fit applications to comply with NEC Article 406.3(E), CA Title 24, ASHRAE Energy Efficiency Standard 90.1 and other energy codes
• Built-in smart chip recognizes the individual device’s charging requirement to optimize the charge
• Two high-powered charging ports deliver a combined total of 5.1A charging current and 25+ watts of power

Product Highlights

This receptacle is a controlled combination duplex Decora receptacle and USB charger. It is a powerful solution to help keep your devices charged with ease and style.

Product Information

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: T5633-2W
• Country of Origin: China

Technical Specifications

• Catalog Number: T5633-2W
• Manufacturer: Leviton
• Brand: Leviton
• Country of Origin: Unknown
• Made in USA: No
• UPC: 078477329726
• GTIN: 00078477329726
• Nema: 5-15R
• Amperage: 15 A
• Grounding: Self Grounding
• Pole: 2.0
• Voltage: 125 VAC
• Wire: 3.0
• Operating Temperature: -10C to 40C
• Horsepower Rating: 1/2 HP
• Strap Material: Galvanized Steel
• Product ID: Stamped on Strap
• Screw Terminal Torque: 14-18 in-lb
• Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
• Termination: Back & Side Wire
• Device Type: Duplex Receptacle Outlet
• Feature: Marked Controlled,USB
• Grade: Commercial Specification Grade
• Warranty: 2-Year Limited
• Series: T5633
• Size: 1.73 in W x 1.68 in D x 4.04 in H
• Type: Controlled Combination Duplex Dual Marked Grounding Tamper-Resistant
• USB Quantity: 2
• Wire Size: 14 to 12 AWG
• Wiring Method: Back/Side Wire
• Material: Thermoplastic
• Manufacturer Name: Leviton
• UNSPSC: 39121406
• Electrical Ratings: 125 V AC, 15 A, 25 W, 1/2 hp
• Environmental Conditions: -10 to 40 deg C Operating Temperature
• Number of Poles: 2
• Number of Wires: 3
• USB Connection Type: A; C
• Current Rating: 15 A
• Housing Color: White
• Market: Industrial
• Maximum Operating Temperature: 40 °C
• Minimum Operating Temperature: -10 °C
• NEMA Receptacle Configuration: 5-15R
• Number of Outlets: 2
• Resistance Properties: Tamper Resistant
• Standards: CSA; FULS Marking; UL
