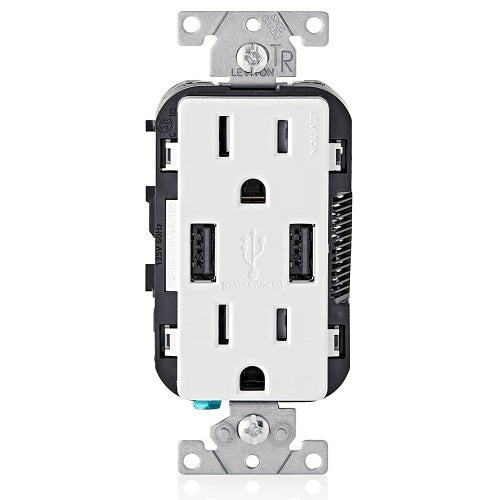

Leviton T5632-W Duplex Receptacle, USB, 15A/125V, Screw Terminal, Tamper

Product Description

The Leviton T5632-W is a duplex receptacle with USB charging capability. This device provides two USB ports that deliver three point six amps of charging power and two tamper-resistant receptacles rated for fifteen amps at one hundred twenty-five volts. It allows users to charge two USB powered devices while keeping two standard outlets available for additional electrical needs.

• Two USB ports for high-speed charging at 3.6A
• Standard NEMA 5-15R receptacles
• Tamper-resistant design for added safety

Product Highlights

This receptacle is ideal for residential applications such as kitchens, bedrooms, and home offices. It can also be used in commercial environments like hotels and cafes.

Product Information

Standard Information

• Brand: Leviton
• Manufacturer Part Number: T5632-W

Technical Specifications

• Electrical Rating: 15A, 125V
• USB Ports: 2
• USB Rating: 3.6A at 5VDC
• Receptacle Type: NEMA 5-15R
• Material: Thermoplastic
• Dimensions: 4.04 inches H x 1.73 inches W x 1.68 inches D
• Wiring Method: Back and Side Wired
• Environmental Conditions: -10 to 40 degrees Celsius
