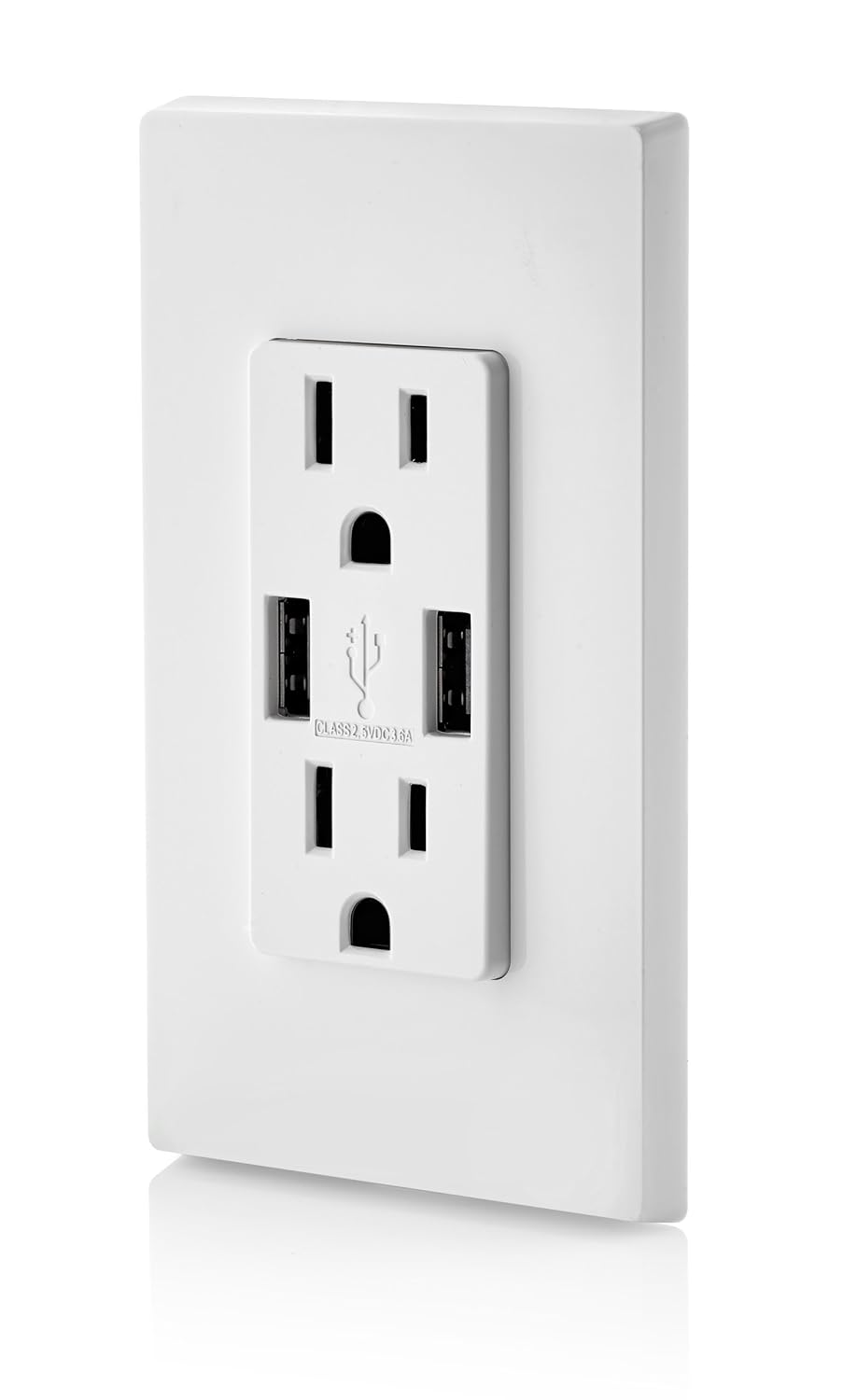

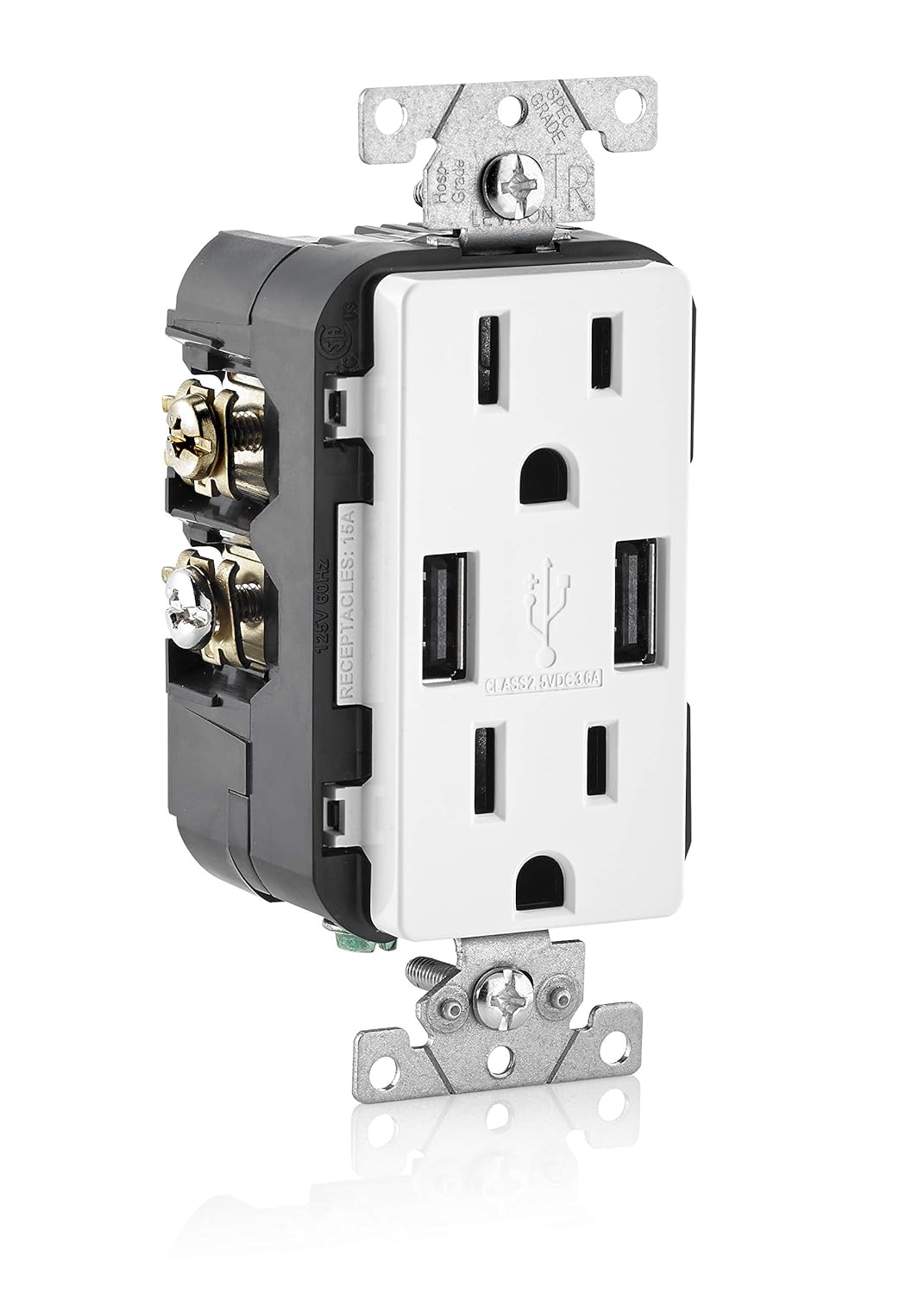

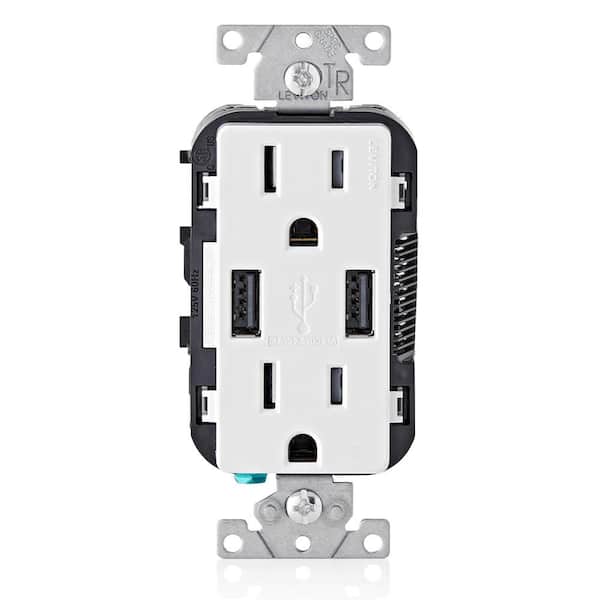

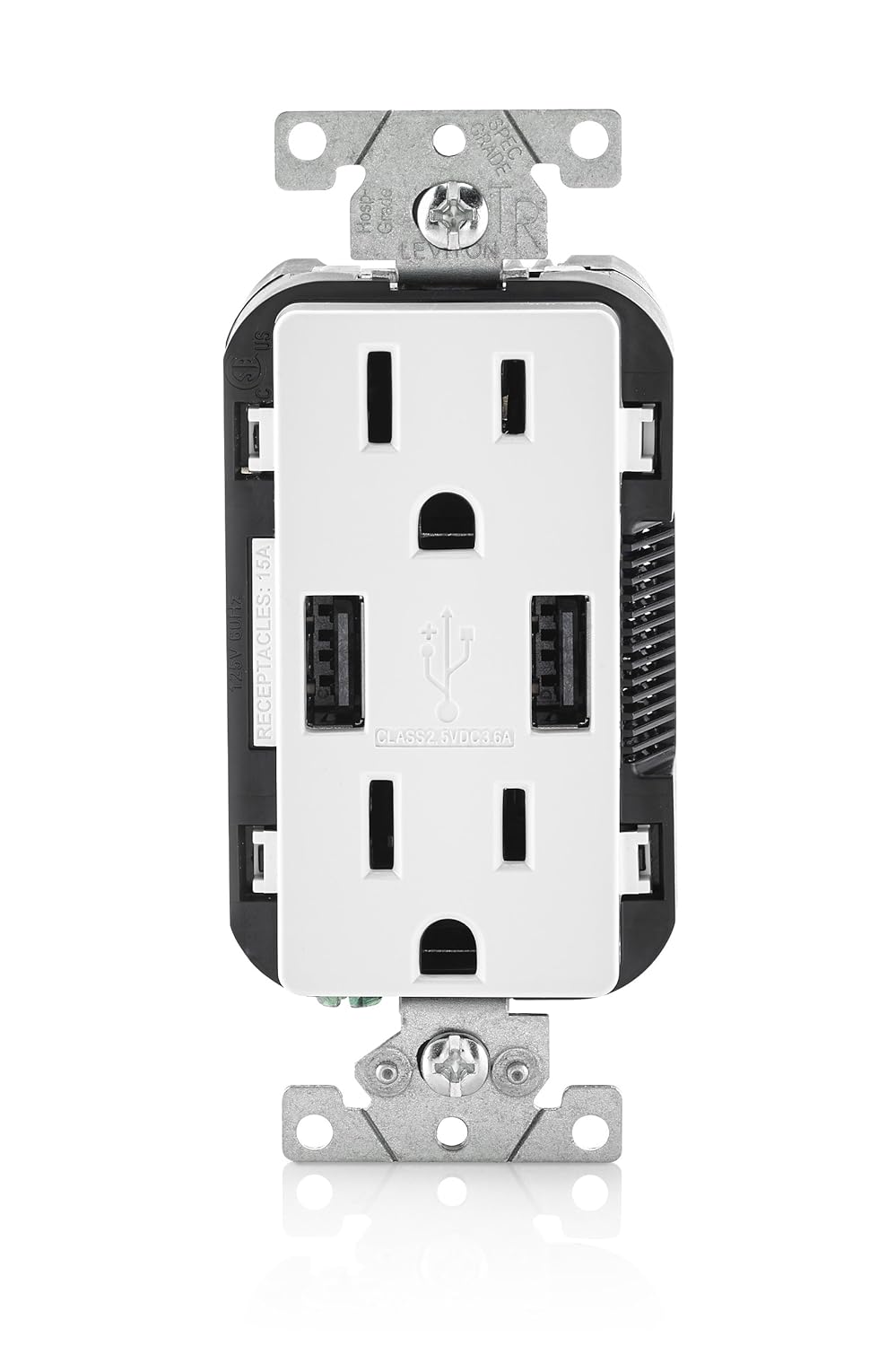

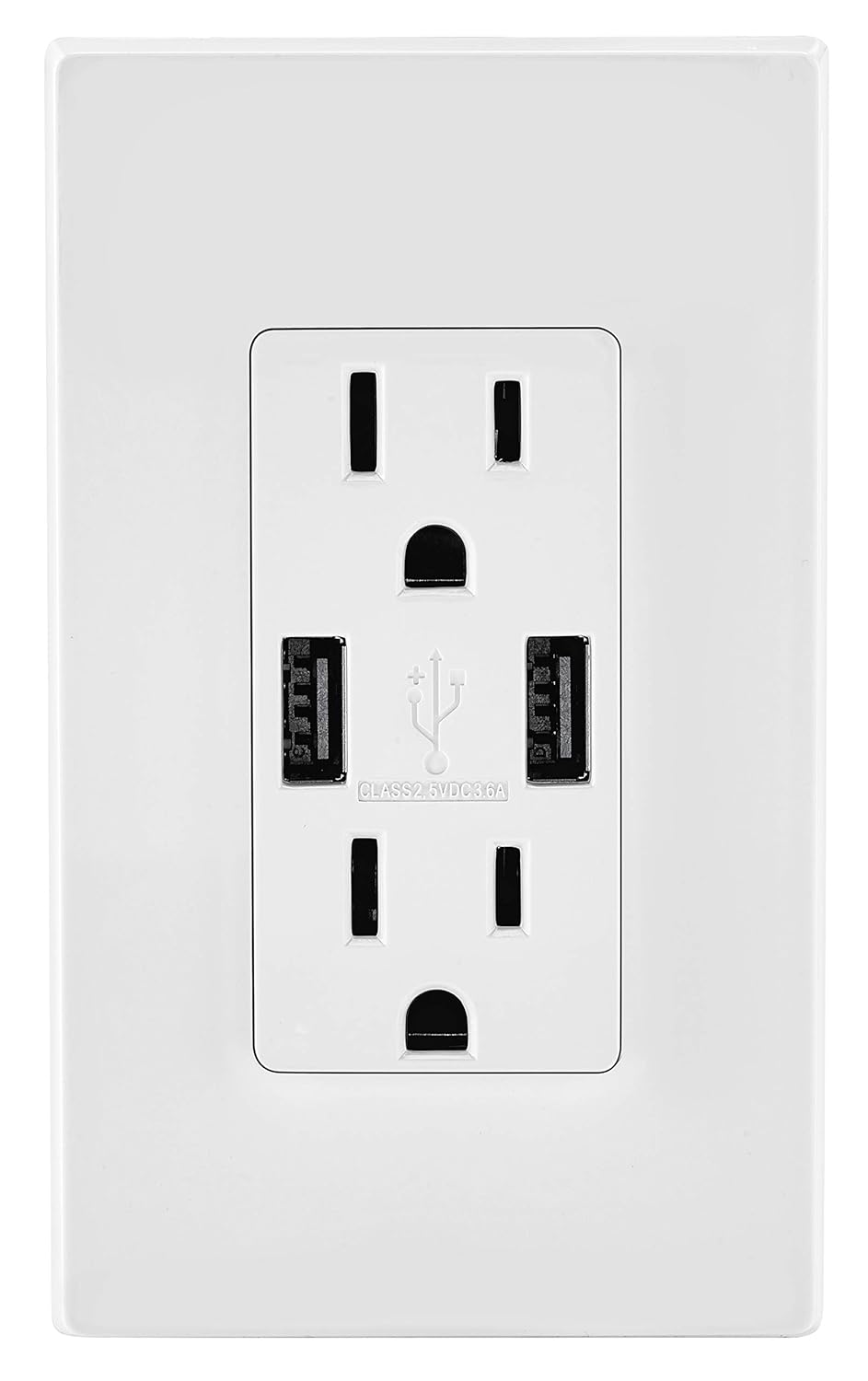

Leviton T5632-BW 2-Port Combination Duplex Receptacle with USB Charger 125 Vac, 15 A, 2 Pole, 3 Wire

Product Description

The Leviton T5632-BW is a 2-Port Combination Duplex Receptacle with USB Charger. This receptacle operates at 125 Vac and 15 A, and features a 2 pole, 3 wire configuration. It is designed for charging tablets and smartphones, and is UL Listed.

• 2-Port Combination Duplex Receptacle with USB Charger
• 125 Vac, 15 A
• Compatible with USB 3.1, 3.0, 2.0, 1.1 devices

Product Highlights

This combination receptacle and USB charger is perfect for residential and commercial applications. Built-in smart chip recognizes the individual device’s charging requirement to optimize the charge.

Product Information

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: T5632-BW
• Country of Origin: China

Technical Specifications

• Brand: Leviton
• Item Model Number: T5632-BW
• MPN: T5632-BW
• Amperage: 15 A
• Mounting Type: Pole
• Connector Type: Usb
• Specification Met: UL Listed
• Compatible Devices: Tablets, Smartphone
• Connectivity Technology: USB
• Nema: 5-15R
• Flammability: Rated V-0 per UL 94
• Grounding: Grounding
• Horsepower Rating: 15A-1/2 HP
• Operating Temperature: -10 0C to 40 0C
• Ratings: 15A-125V
• Body Material: Thermoplastic
• Cover Material: Thermoplastic
• Strap Material: Steel
• Product ID: Stamped on Strap
• Terminal Accom.: 14-12 AWG
• Terminal ID: Brass-Hot Black-Hot White-Neutral Green-Gnd
• Termination: Back & Side
• Torque Range: 14 – 18 in.-lbs
• Product Type: Outlet/USB Combo
• Type: Type A/A Duplex Receptacle
• Voltage: 121-140 V
• Wallplate: Not Included
• FCC Part 15: Class B
• Listed: cCSAus
• NOM: 057
• UL 1310: Yes
• UL 498: Yes
• Grade: Residential/Commercial Specification Grade
• Dimensions: H: 4.125 in
• Dimensions: W: 1.375 in
• Dimensions: D: 1.875 in
• Power Plug Type: Type A - 2 pin (North American)
• Total Power Outlets: 2
• Material Type: Thermoplastic
• Mounting Style: Wall
• Plug Type: A
• Current Rating: 11-15 A
• Plate Design: Duplex Outlet
• Orientation: Horizontal/Vertical
• Suitable For: Wall, Interior
• Port Type: USB Charging
• Operation Method: Outlet
• Current Type: AC
• Number of Ports: 2
• Outlet Style: USB, Combination
• Model: Leviton T5632-W
• Features: USB Port
• Outlet Configuration: Duplex
• Box Shape: Rectangular
• Resistance Properties: Tamper Resistant
• Application: Charging/Power
