Product Description

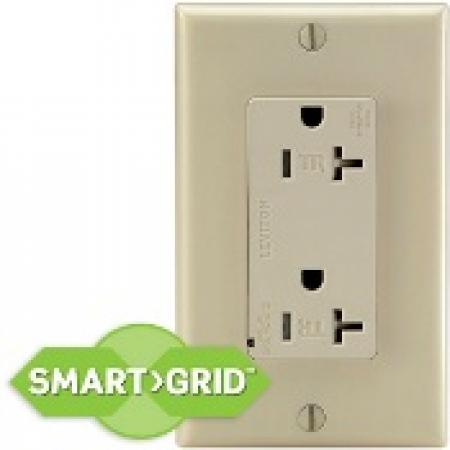

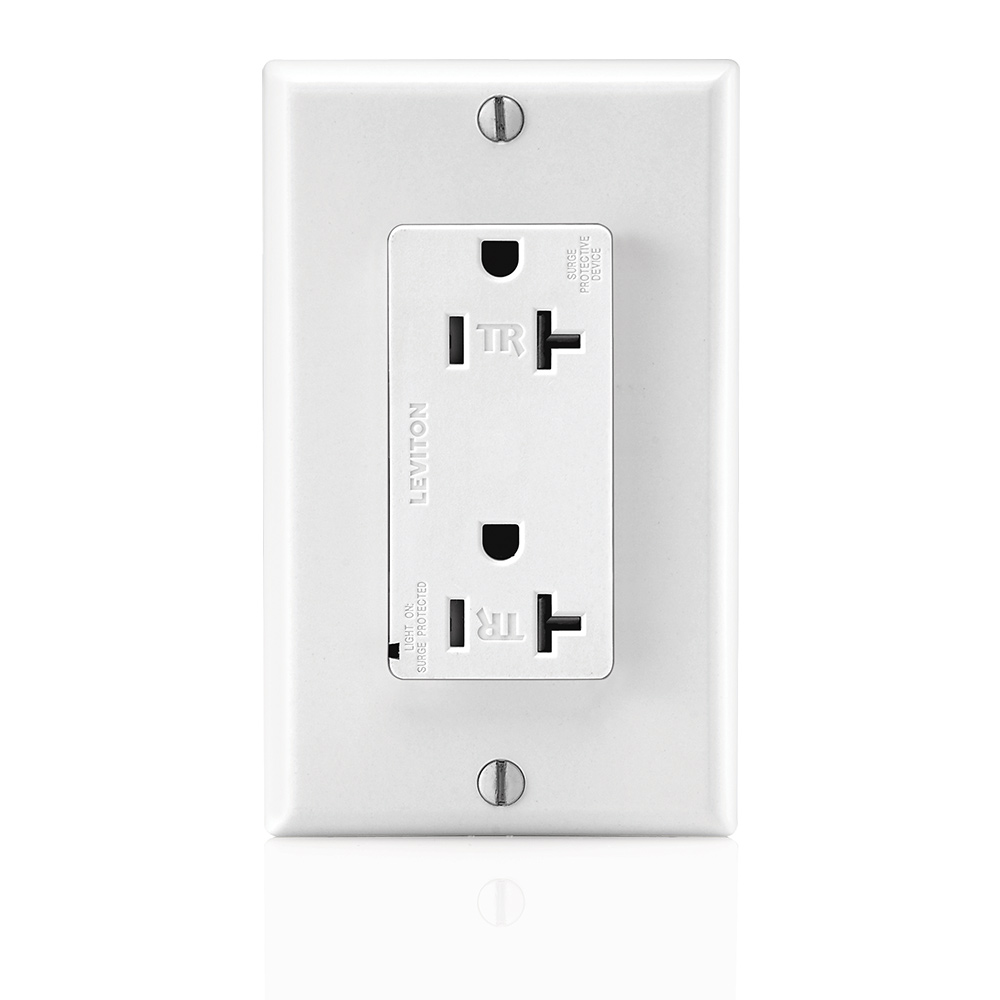

The Leviton T5380-W is a surge protective duplex receptacle designed for commercial applications. This device provides a reliable solution for protecting sensitive electronic equipment from voltage transients. The receptacle is tamper-resistant, rated for twenty amps, and operates at one hundred twenty-five volts.
- Surge protection compliant with UL 1449 standards
- Two-pole, three-wire configuration
- Compatible with back and side wiring
Product Highlights
This receptacle features a durable polycarbonate body and a nylon face. It includes an indicator light to show that protection is active. The self-grounding design facilitates safe and easy installation.
Product Information
Standard Information
-
Brand: Leviton
-
MPN: T5380-W
Technical Specifications
-
Catalog Number: T5380-W
-
Amperage Rating: 20 A
-
Voltage Rating: 125 Volt
-
Color: White
-
Dimensions: 4.21 H x 1.77 W x 1.56 D inches
-
Material: Polycarbonate
-
Connection Type: Back and Side Wired
-
Operating Temperature: -40 to +60 degrees Celsius
