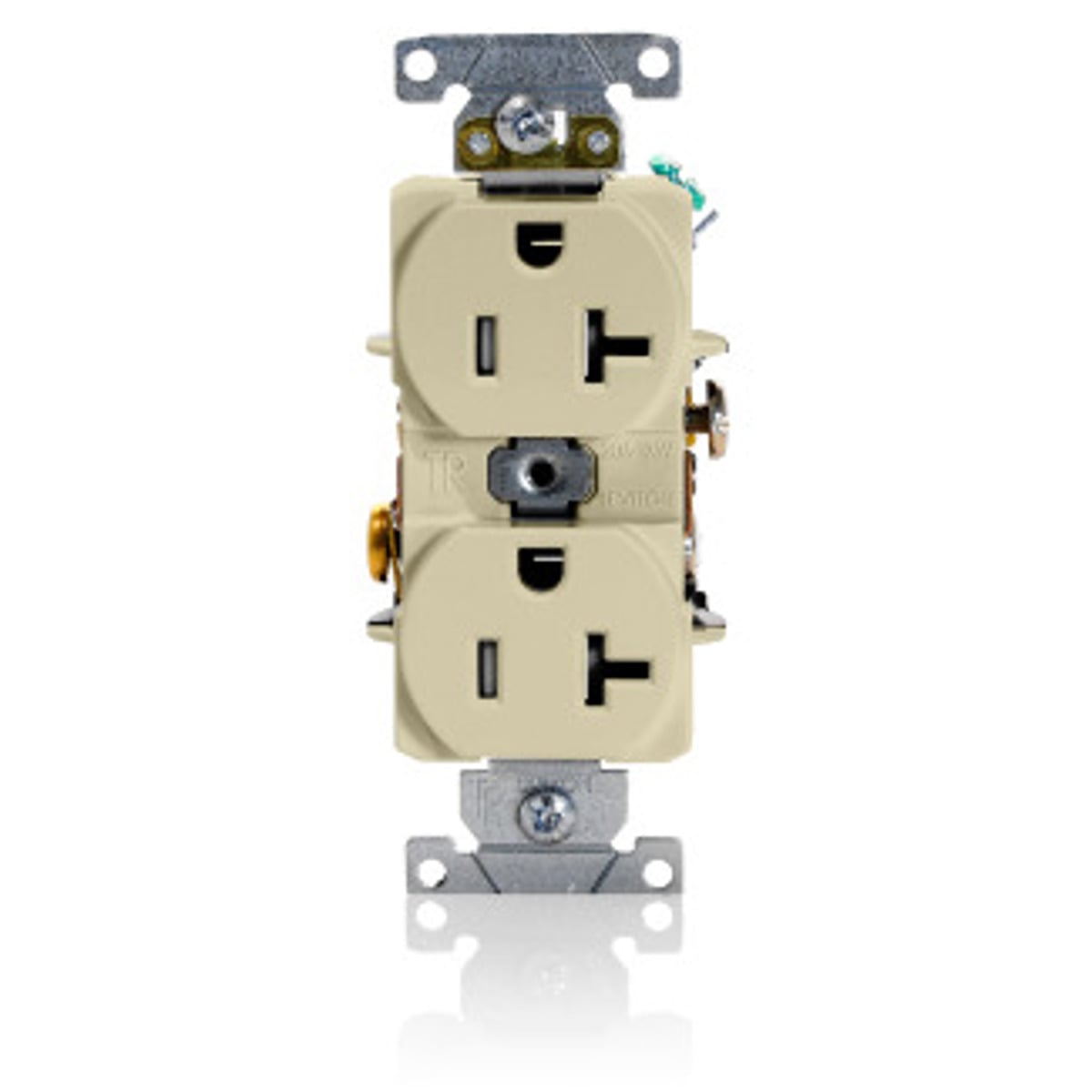

Leviton T5362-I Duplex Receptacle Tamper-Resistant 20A 125V (Duplex)

Product Description

Leviton T5362-I is a heavy-duty, industrial specification grade duplex receptacle rated 20 A and 125 V. It is a tamper-resistant, self-grounding NEMA 5-20R device with two outlets and back-or-side wiring for #14�#10 AWG conductors. Constructed of a PBT polyester blend with brass ground clip and phosphor bronze line contacts, it withstands a minimum 3000 V dielectric and operates from -40�C to 75�C.

• Tamper-resistant duplex receptacle, NEMA 5-20R, 20 A 125 V, self-grounding
• PBT polyester blend body and face with brass ground clip, phosphor bronze line contacts, and steel strap

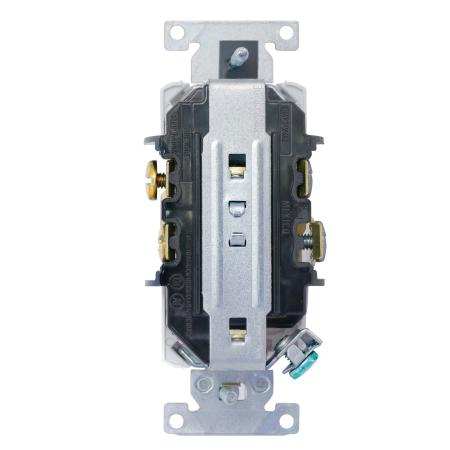

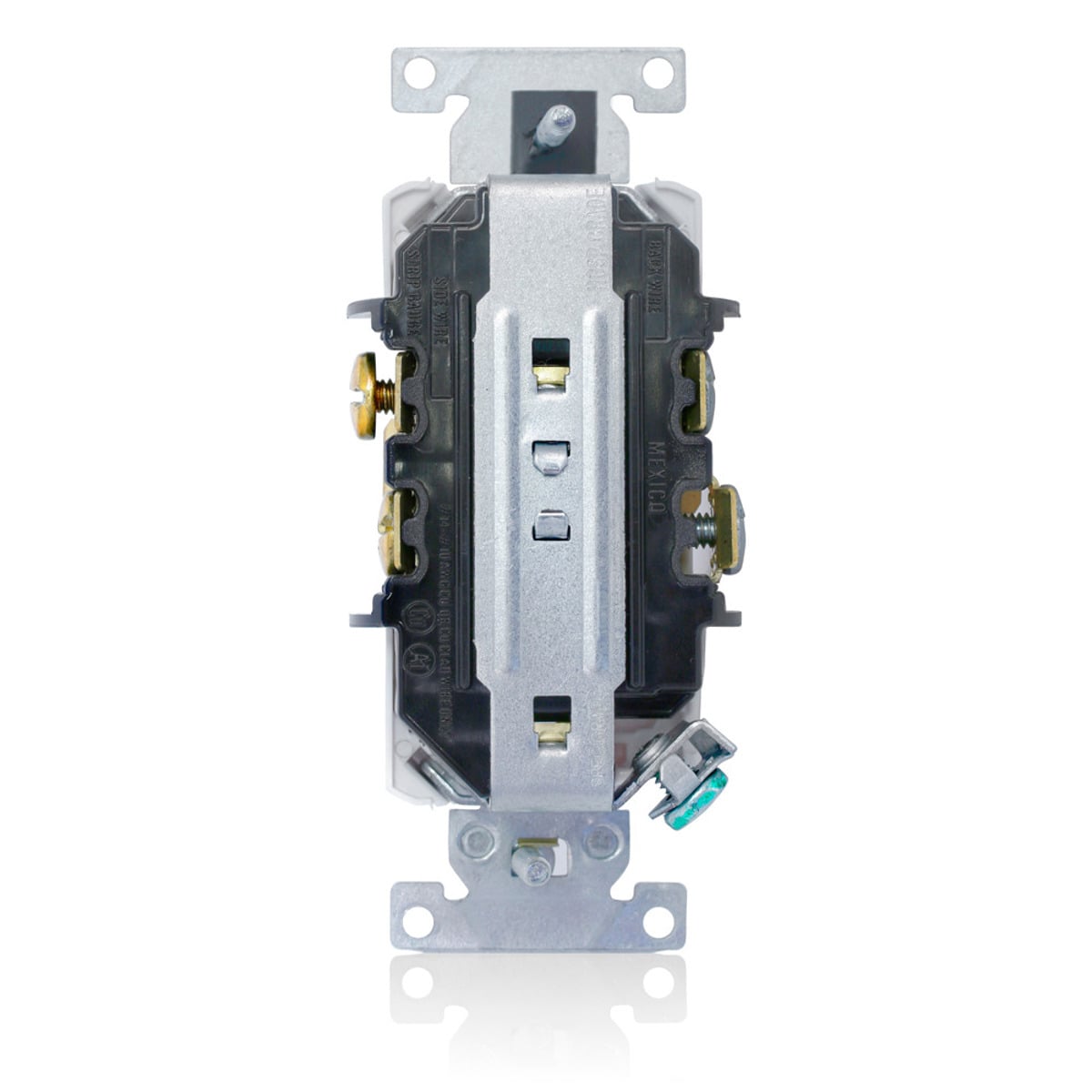

• Back or side wiring with external wiring clamps; terminal accommodation #14 AWG to #10 AWG; screw torque 14�18 in-lbs; operating temperature -40�C to 75�C

Product Highlights

Industrial-grade tamper-resistant duplex receptacle, NEMA 5-20R, self-grounding with back/side wiring and 3000 V dielectric rating

Product Information

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: T5362-I
• Country of Origin: Mexico

Technical Specifications

• Manufacturer Part Number: T5362-I
• Brand: Leviton
• Device Type: Duplex receptacle outlet
• Grade: Heavy-duty industrial specification grade
• Amperage Rating: 20 A
• Voltage Rating: 125 VAC
• NEMA Rating: NEMA 5-20R
• Number of Outlets: 2
• Number of Poles: 2
• Number of Wires: 3
• Feature: Tamper-Resistant
• Grounding: Self-grounding
• Material: PBT polyester blend
• Strap Material: Steel
• Body Material: PBT polyester blend
• Face Material: PBT polyester blend
• Line Contacts: 0.030" phosphor bronze
• Ground Clips: Brass
• Horsepower Rating: 1 hp
• Termination: Back or side wire (back/side wiring)
• Terminal Accommodation: #14 AWG - #10 AWG
• Screw Terminal Torque: 14-18 in-lbs
• Dielectric Strength: Withstands 3000 V minimum
• Operating Temperature: -40 �C to 75 �C
• Flammability Rating: V-0 per UL 94
• Standards: ANSI C-73; UL 498; Fed Spec W-C-596; CSA C22.2 No. 42
• Certifications: cULus, NOM-ANCE
• UPC: 078477895061
• Country of Origin: Unknown
