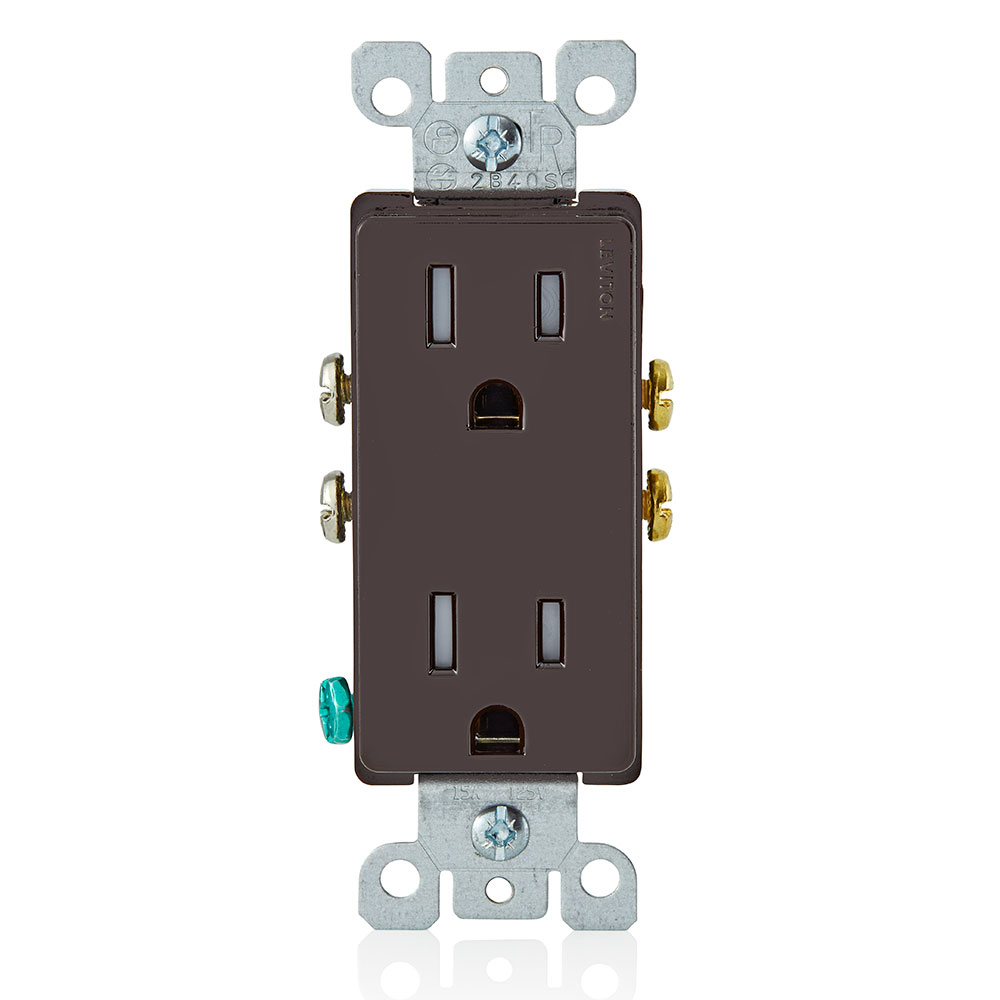

Leviton T5325 Tamper-resistant Duplex Receptacle 15A Brown

Product Description

The LEVITON T5325 is a 15 amp, 125 volt tamper-resistant duplex receptacle designed for residential and light commercial electrical installations. It carries a NEMA 5-15R configuration with a 2-pole, 3-wire grounding straight blade layout. The Decora-style faceplate profile fits standard Decora wallplates. Tamper-resistant shutters block foreign object insertion while still accepting standard 15 amp plugs, meeting NEC requirements for tamper protection in dwelling units. A licensed electrician installs this device during new construction, renovation, or outlet replacement work.

This receptacle is suited for general-purpose branch circuit use in bedrooms, living areas, hallways, and other interior spaces where NEC tamper-resistant requirements apply. The brown finish coordinates with matching Decora wallplate accessories. Quickwire push-in side wiring allows for faster termination during high-volume rough-in work, and the device also accepts traditional side-wired screw terminal connections for added flexibility on the job.

Key Features

• Tamper-resistant shutters meet NEC requirements for dwelling unit receptacle protection
• Decora-style form factor fits standard Decora and decorator-profile wallplates
• Quickwire push-in side terminals plus screw terminals for wiring flexibility
• NEMA 5-15R straight blade, 2-pole, 3-wire grounding configuration
• UL and CSA listed; 2-year limited warranty
• Brown finish for coordinated trim in matching decor schemes

Compatibility

Designed as an OEM-style replacement or new-installation duplex receptacle for standard 15 amp, 125 volt branch circuits wired with NEMA 5-15 straight blade devices.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the NEC and applicable local codes. De-energize the branch circuit at the panel and verify with a voltage tester before beginning any wiring work. The device supports both push-in and screw terminal wiring; follow NEC guidelines for conductor sizing and box fill calculations. Torque screw terminals to the value listed on the device body if marked.

Technical Specifications

• Amperage: 15 amps
• Voltage: 125 volts
• NEMA Configuration: 5-15R
• Poles: 2
• Wires: 3
• Wiring Method: Quickwire push-in side and screw terminal
• Blade Type: Straight blade
• Tamper-Resistant: Yes
• Style: Decora
• Color: Brown
• Certifications: UL, CSA
• Compliance: NEC compliant
• Warranty: 2-year limited
• UPC: 078477381595

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: T5325
