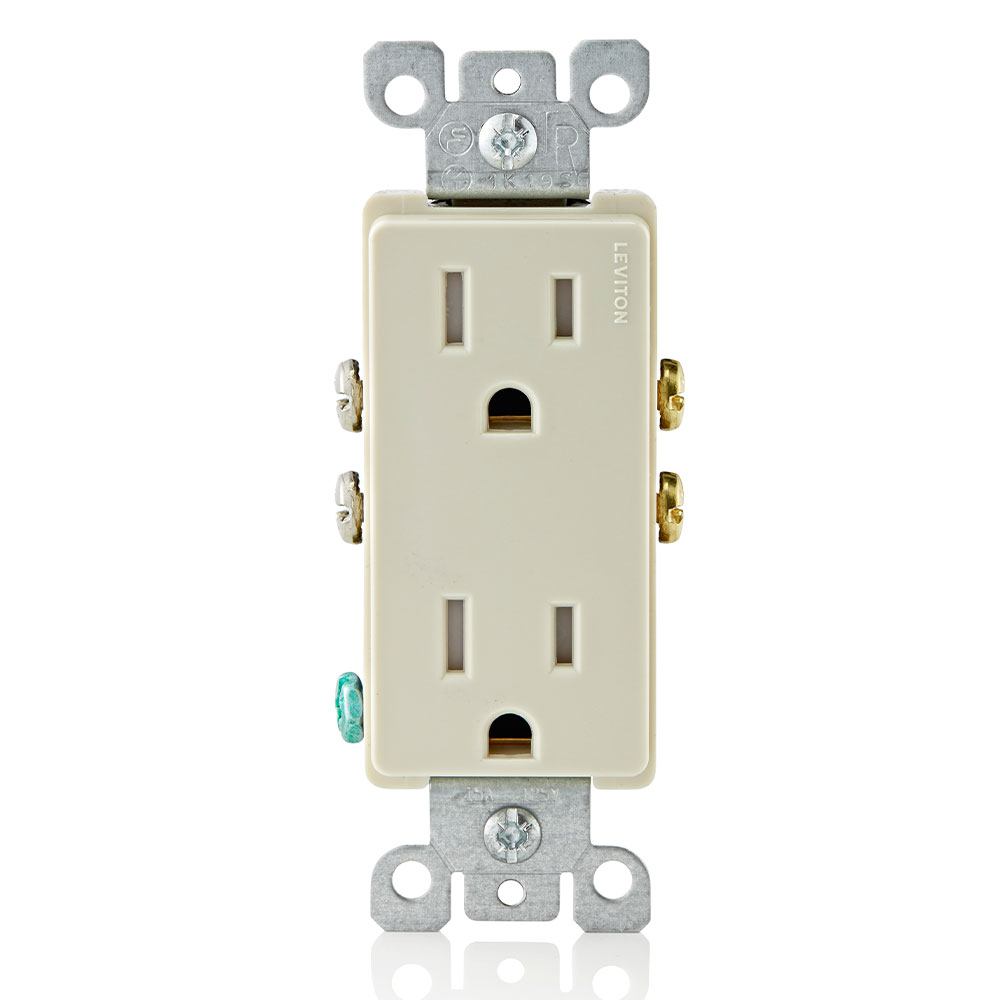

Leviton T5325-T 15A 125V Tr Decora Duplex Receptacle Light Almond

Product Description

The LEVITON T5325-T is a 15 amp, 125 volt tamper-resistant Decora duplex receptacle designed for residential and light commercial electrical installations. Rated NEMA 5-15R and wired in a 2-pole, 3-wire grounded configuration, this straight-blade outlet meets NEC requirements for tamper resistance in areas where child safety is a code concern. The Decora form factor integrates flush with standard Decora-style wall plates. Quickwire push-in side wiring simplifies installation, and the light almond finish blends with common interior color schemes. UL and CSA listed.

This receptacle is suited for new construction, remodels, and code-compliance upgrades in residential occupancies, schools, healthcare facilities, and other locations where tamper-resistant outlets are required by the NEC. Licensed electricians typically install this device in standard single-gang boxes during rough-in or device replacement work. The light almond color makes it appropriate for wall finishes where white would stand out.

Key Features

• Tamper-resistant shutters meet NEC requirements for child-safe outlet protection
• NEMA 5-15R rating: 15 amp, 125 volt, 2-pole, 3-wire grounded
• Decora style for compatibility with Decora-format wall plates
• Quickwire push-in side terminals for faster device wiring
• UL and CSA listed for code-compliant installations
• Light almond finish for neutral interior color matching

Compatibility

Designed as an OEM-style replacement or new-installation receptacle compatible with standard single-gang electrical boxes requiring a NEMA 5-15R tamper-resistant Decora duplex outlet.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the NEC and applicable local codes. Always de-energize the circuit at the breaker panel and verify with a non-contact voltage tester before handling any wiring. Quickwire push-in terminals accept solid copper conductors; confirm wire gauge compatibility before terminating. Secure the device to the box per standard gang-box mounting practices and install a matching Decora wall plate after device installation is complete.

Technical Specifications

• Amperage: 15 amps
• Voltage: 125 volts
• NEMA Configuration: 5-15R
• Poles: 2
• Wiring: 3-wire grounded
• Blade Type: Straight blade
• Tamper-Resistant: Yes
• Wiring Method: Quickwire push-in side
• Color: Light almond
• Certifications: UL, CSA
• NEC Compliant: Yes
• Warranty: 2-year limited

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: T5325-T
