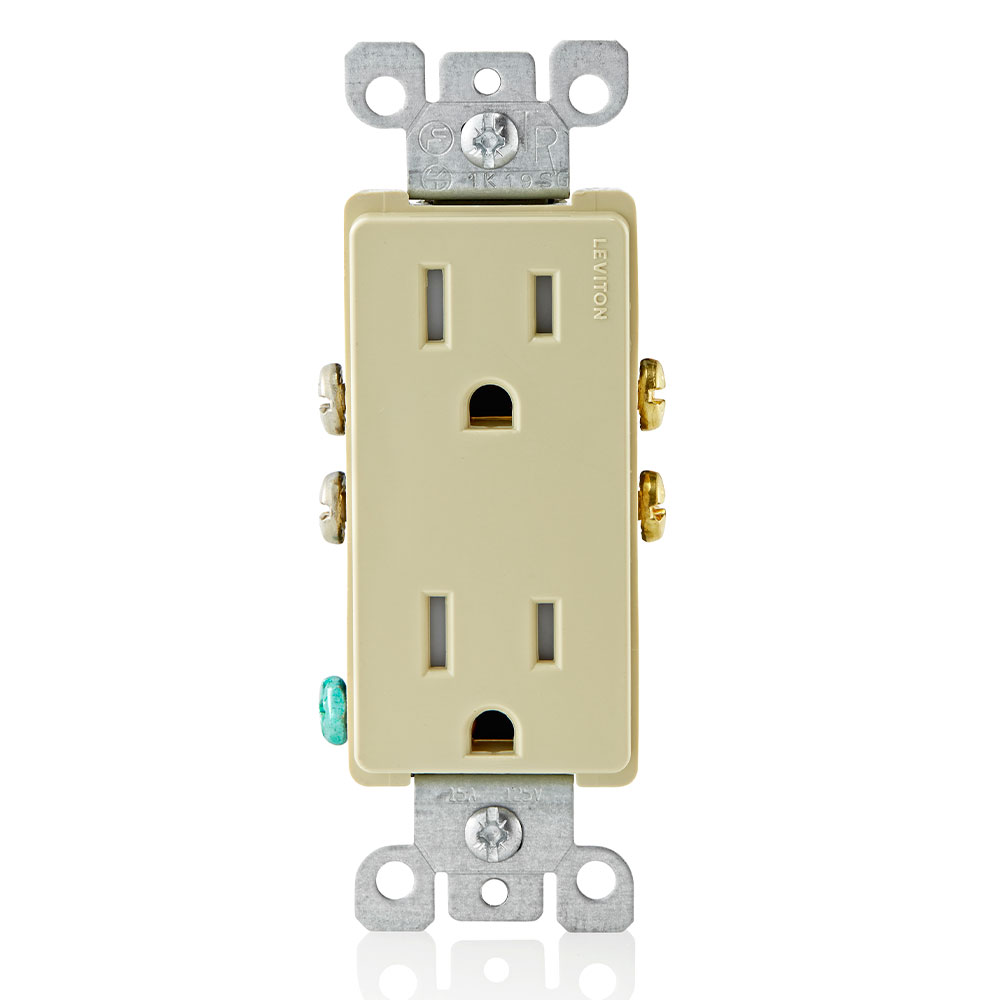

Leviton T5325-I 15A Tr Decora Duplex Receptacle Ivory

Product Description

The LEVITON T5325-I is a 15 amp, 125 volt tamper-resistant Decora duplex receptacle designed for residential and light commercial wiring installations. It carries a NEMA 5-15R configuration with a 2-pole, 3-wire grounding design and straight-blade contacts. The tamper-resistant shutter mechanism meets NEC requirements for receptacle protection in areas where children may be present. Quickwire push-in side terminals plus standard screw terminals give installers flexible wiring options. The low-profile Decora faceplate style integrates with standard Decora wallplates. UL and CSA listed, and backed by a 2-year limited warranty.

This receptacle is suited for new construction and retrofit applications in residential bedrooms, bathrooms, kitchens, hallways, and commercial spaces where NEC tamper-resistant requirements apply. The ivory finish coordinates with standard ivory Decora wallplates. Licensed electricians typically install this device as a direct replacement for standard duplex receptacles where code compliance upgrades are needed.

Key Features

• Tamper-resistant shutters meet NEC child-safety requirements for dwelling unit receptacles
• NEMA 5-15R, 15 amp, 125 volt rating for standard branch circuit use
• 2-pole, 3-wire grounding configuration with straight-blade contacts
• Quickwire push-in side terminals for faster installation alongside screw terminals
• Decora form factor compatible with standard Decora-style wallplates
• UL and CSA listed; NEC compliant; 2-year limited warranty

Compatibility

Designed as a direct-replacement tamper-resistant duplex receptacle for standard 15 amp, 125 volt NEMA 5-15R branch circuit applications in residential and light commercial installations where Decora-style devices are specified.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. Always shut off and lock out the branch circuit breaker before removing the existing device or making any wire connections. Verify correct grounding continuity after installation before restoring power. Do not exceed the 15 amp, 125 volt rated capacity of this receptacle.

Technical Specifications

• Amperage: 15 amps
• Voltage: 125 volts
• NEMA Configuration: 5-15R
• Poles: 2
• Wires: 3-wire
• Wiring Method: Quickwire push-in side and screw terminals
• Blade Type: Straight blade
• Tamper-Resistant: Yes
• Grounding: Yes
• Color: Ivory
• Certifications: UL, CSA, NEC compliant
• Warranty: 2-year limited
• UPC: 078477381762

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: T5325-I
