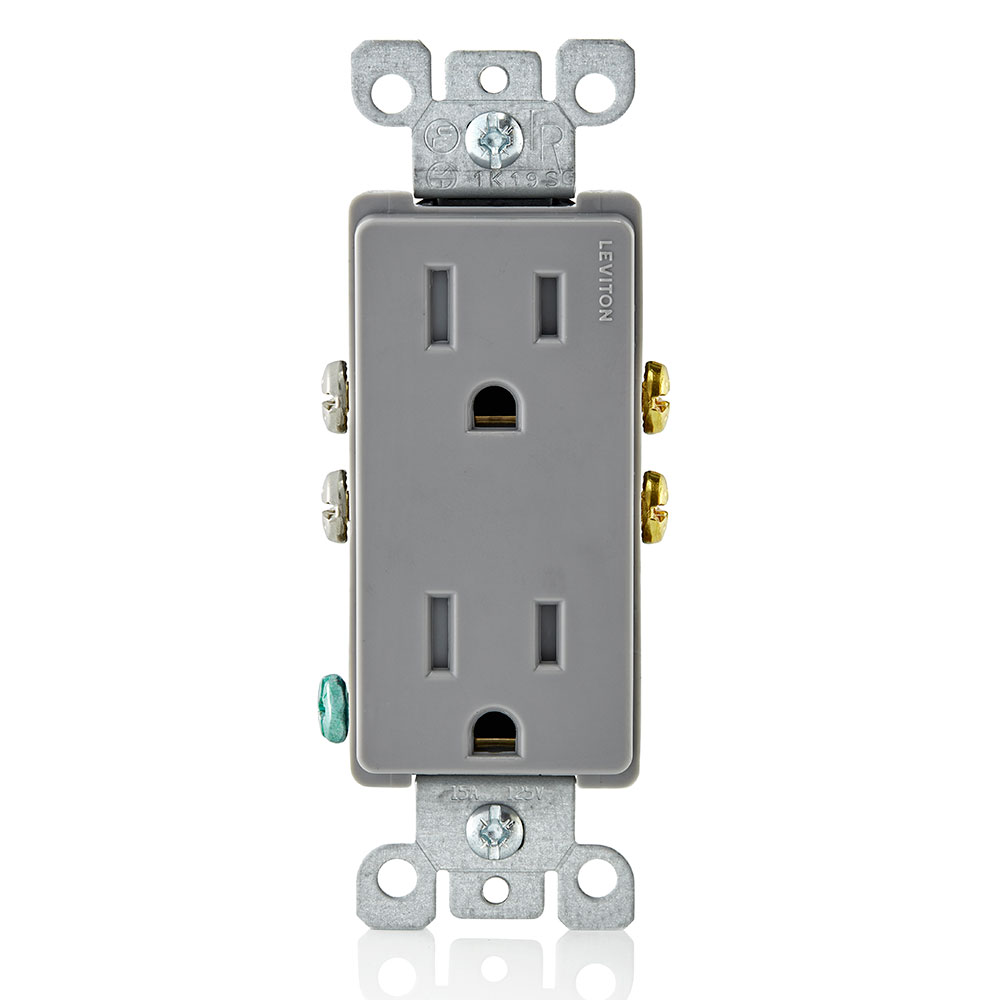

Leviton T5325-GY Tamper-resistant Decora Receptacle Gray

Product Description

The LEVITON T5325-GY is a 15 amp, 125 volt tamper-resistant Decora-style duplex receptacle rated NEMA 5-15R. It features a 2-pole, 3-wire grounding configuration with straight blade contacts. Built-in tamper-resistant shutters block foreign object insertion while allowing standard plug blades to seat normally. The Quickwire push-in side wiring option speeds installation alongside traditional screw terminals. This receptacle is UL and CSA listed and carries a 2-year limited warranty. Electricians install it in residential and light commercial applications where NEC tamper-resistant requirements apply, including kitchens, bathrooms, and any location within reach of children.

The T5325-GY fits standard single-gang boxes and accepts the Decora wallplate format, making it a direct swap in any existing Decora installation. The gray finish suits commercial and institutional settings where the standard white or light almond color is not specified. It is suited for use in dwelling units, schools, healthcare facilities, and any occupancy where the NEC mandates tamper-resistant receptacles at 15 amp branch circuit locations.

Key Features

• Tamper-resistant shutters comply with NEC requirements for child-safe receptacle locations
• 15 amp, 125 volt, NEMA 5-15R rating for standard 15 amp branch circuits
• 2-pole, 3-wire grounding with straight blade contacts
• Quickwire push-in side terminals plus traditional screw terminals for wiring flexibility
• UL and CSA listed; NEC compliant
• Decora form factor accepts standard Decora wallplates

Compatibility

Designed as an OEM-style replacement or new-installation receptacle for standard single-gang electrical boxes wired on 15 amp, 125 volt branch circuits requiring a NEMA 5-15R tamper-resistant Decora-style outlet.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the NEC and all applicable local codes. Always shut off the branch circuit breaker and verify the circuit is de-energized with a voltage tester before removing or installing any receptacle. Screw terminal torque and conductor preparation should follow NEC Article 110 workmanship requirements. Quickwire push-in terminals are for use with solid copper conductors only; consult the device markings before using push-in terminations with stranded wire.

Technical Specifications

• Amperage: 15 amps
• Voltage: 125 volts
• NEMA Configuration: 5-15R
• Poles: 2
• Wires: 3-wire
• Blade Type: Straight blade
• Tamper-Resistant: Yes
• Wiring Method: Quickwire push-in side and screw terminals
• Color: Gray
• Certifications: UL, CSA, NEC compliant
• Warranty: 2-year limited
• UPC: 078477438213

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: T5325-GY
