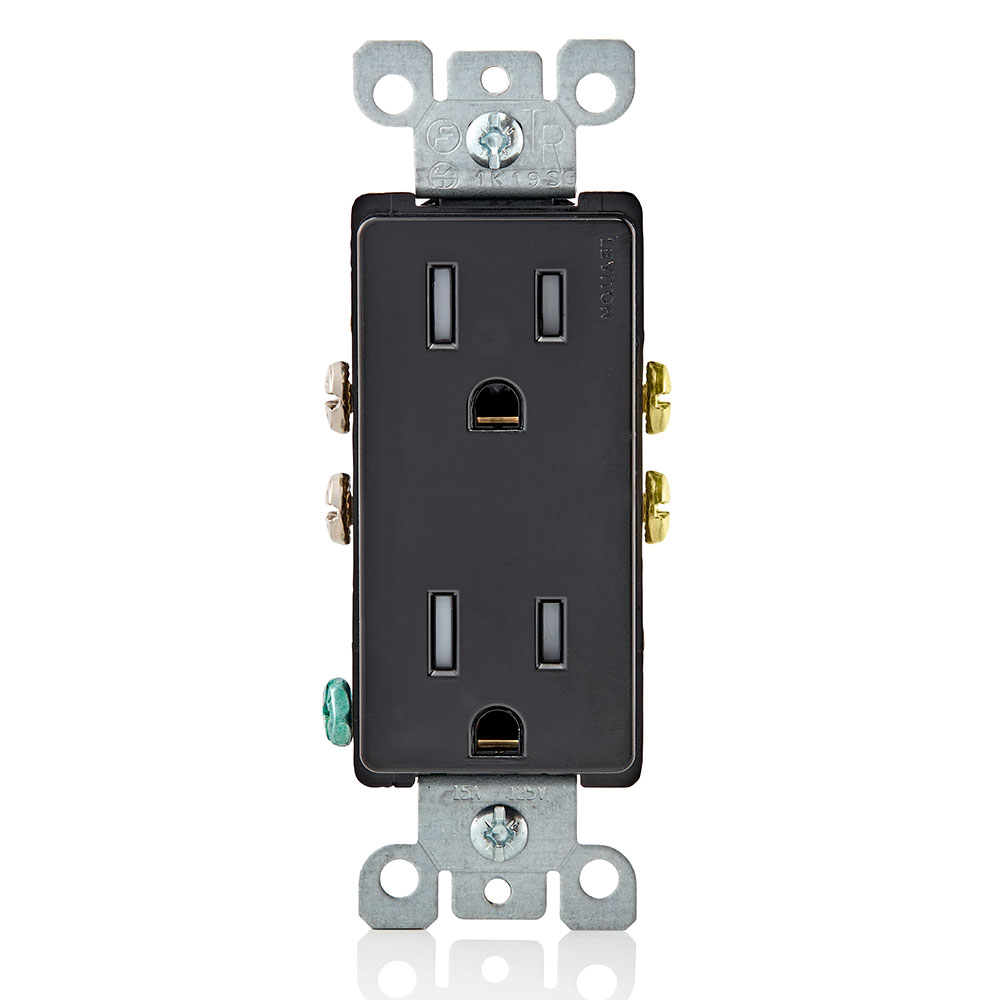

Leviton T5325-E Duplex Grounding Tamper-Resistant Straight Blade Receptacle 125VAC 15A 2 Poles 3 Wires NEMA 5-15R

Product Description

The Leviton T5325-E is a duplex grounding tamper-resistant straight blade receptacle. This receptacle is rated for 125 VAC and 15 A. It features two poles and three wires, designed for commercial applications such as homes, offices, and schools.

• Durability with an impact-resistant thermoplastic construction.
• Quick-wire push-in and side wire terminal for easy installation.
• Tamper-resistant design for safety in high-traffic areas.

Product Highlights

Compatible with NEMA 5-15R, the receptacle ensures reliable conductivity and long service life.

Product Information

Standard Information

• Brand: Leviton
• MPN: T5325-E

Technical Specifications

• Amperage Rating: 15 A
• Voltage Rating: 125 VAC
• Number of Poles: 2
• Number of Wires: 3
• NEMA Rating: 5-15R
• Dimensions: 4.2 in H x 1.33 in W x 0.76 in D
• Temperature Rating: -40 to +60 deg C
• Terminal Type: Quick-Wire® Push-In/Side Wire
• Material: Thermoplastic
