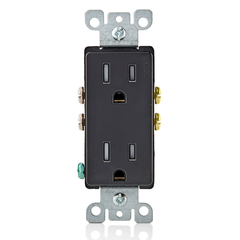

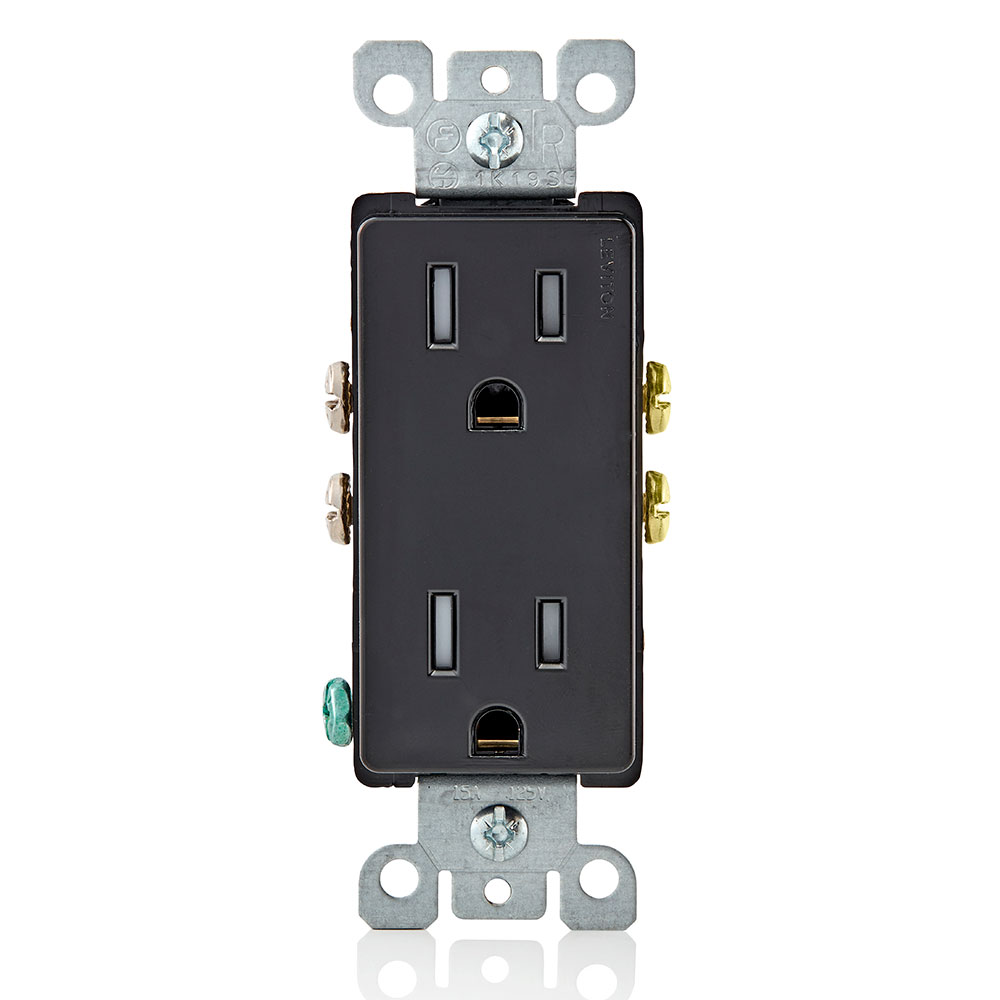

Leviton T5325-E 15A Tamper-resistant Decora Receptacle Black

Product Description

The LEVITON T5325-E is a 15 amp, 125 volt tamper-resistant Decora-style duplex receptacle designed for residential and light commercial electrical installations. It carries a NEMA 5-15R configuration with a 2-pole, 3-wire grounding design and straight blade contacts. The built-in tamper-resistant shutter mechanism prevents foreign object insertion, meeting NEC requirements for tamper protection in dwelling units. Quickwire push-in side wiring and standard screw terminals support fast, code-compliant termination. This outlet is listed to UL and CSA standards and backed by a 2-year limited warranty. Licensed electricians are the typical installer for new construction, renovation, and service work.

The T5325-E fits into standard single-gang boxes and is suited for bedroom, bathroom, hallway, and general-purpose branch circuit outlets where tamper-resistant receptacles are required by NEC code. Its Decora form factor is compatible with Decora-style wall plates and finish trim. The black color finish makes it a practical choice for installations where a darker outlet is specified by design or contract.

Key Features

• Tamper-resistant shutters meet NEC tamper-resistant receptacle requirements for dwelling units
• NEMA 5-15R, 15 amp, 125 volt rating for standard 15A branch circuits
• 2-pole, 3-wire grounding configuration with straight blade contacts
• Quickwire push-in side terminals plus screw terminals for wiring flexibility
• UL and CSA listed for code-compliant installation
• Decora form factor compatible with Decora-style wall plates

Compatibility

Designed as an OEM-style replacement or new-installation receptacle for standard residential and light commercial 15 amp, 125 volt branch circuits using NEMA 5-15R outlet positions.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. De-energize the circuit at the breaker panel and verify absence of voltage with a meter before beginning any wiring work. Secure the receptacle in a listed electrical box rated for the application. Do not exceed the 15 amp circuit rating of this device.

Technical Specifications

• Amperage: 15 amps
• Voltage: 125 volts
• NEMA Configuration: 5-15R
• Poles: 2
• Wires: 3
• Blade Type: Straight Blade
• Grounding: Yes
• Tamper-Resistant: Yes
• Wiring Method: Quickwire Push-In Side and Screw Terminal
• Color: Black
• Certifications: UL Listed, CSA Listed, NEC Compliant
• Warranty: 2-Year Limited
• UPC: 078477381755

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: T5325-E
