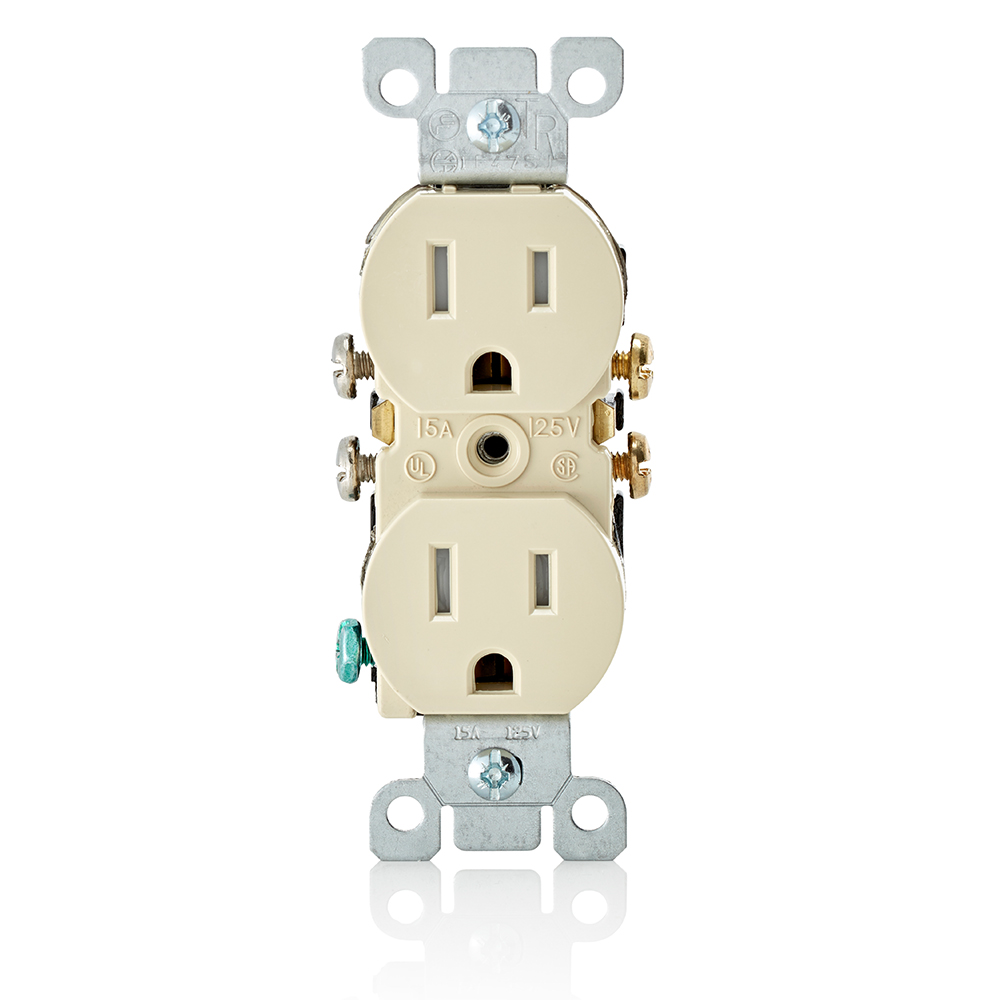

Leviton T5320-I 15A Tr Duplex Receptacle 125V Ivory

Product Description

The LEVITON T5320-I is a 15 amp, 125 volt tamper-resistant duplex receptacle rated NEMA 5-15R and finished in ivory. It is a 2-pole, 3-wire straight-blade grounding outlet designed for standard residential and light commercial branch circuit wiring. The tamper-resistant shutter mechanism requires simultaneous pressure on both slots to accept a plug, preventing foreign object insertion. Installation accepts both traditional side-wire termination and quickwire push-in connections for faster rough-in work. Licensed electricians install this receptacle as part of new construction or renovation wiring projects.

This receptacle is suited for 15-amp, 120-volt branch circuits in residential dwelling units, hotels, schools, and other occupancies where NEC code mandates tamper-resistant protection at receptacle locations. Its ivory finish coordinates with standard decor plates. The quickwire push-in side terminals support efficient installation in high-volume wiring situations, while the screw terminals provide a code-compliant mechanical connection where required by local jurisdiction.

Key Features

• Tamper-resistant shutters block foreign object insertion while accepting standard plugs normally
• NEMA 5-15R configuration: 2-pole, 3-wire, 15 amp, 125 volt straight blade
• Quickwire push-in side terminals plus traditional screw terminals for wiring flexibility
• Grounding design meets NEC grounding requirements for residential and commercial circuits
• UL and CSA listed; NEC compliant
• 2-year limited warranty

Compatibility

Designed as an OEM-style replacement or new-installation duplex receptacle for standard 15-amp, 125-volt branch circuits requiring NEMA 5-15R tamper-resistant outlets in residential and light commercial applications.

Installation Notes

Installation must be performed by a qualified electrician in accordance with NFPA 70 (NEC) and applicable local codes. Always de-energize the circuit at the breaker panel and verify absence of voltage with a meter before wiring. Screw-terminal connections are generally preferred over push-in terminals where local codes require a mechanically secured connection. Confirm compatibility with the existing wall plate before completing the installation.

Technical Specifications

• Amperage: 15 amps
• Voltage: 125 volts
• NEMA Configuration: 5-15R
• Poles: 2
• Wires: 3
• Blade Type: Straight Blade
• Grounding: Yes
• Tamper-Resistant: Yes
• Wiring Method: Quickwire Push-In Side and Screw Terminal
• Color: Ivory
• Certifications: UL, CSA, NEC Compliant
• Warranty: 2-Year Limited
• UPC: 078477381915

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: T5320-I
