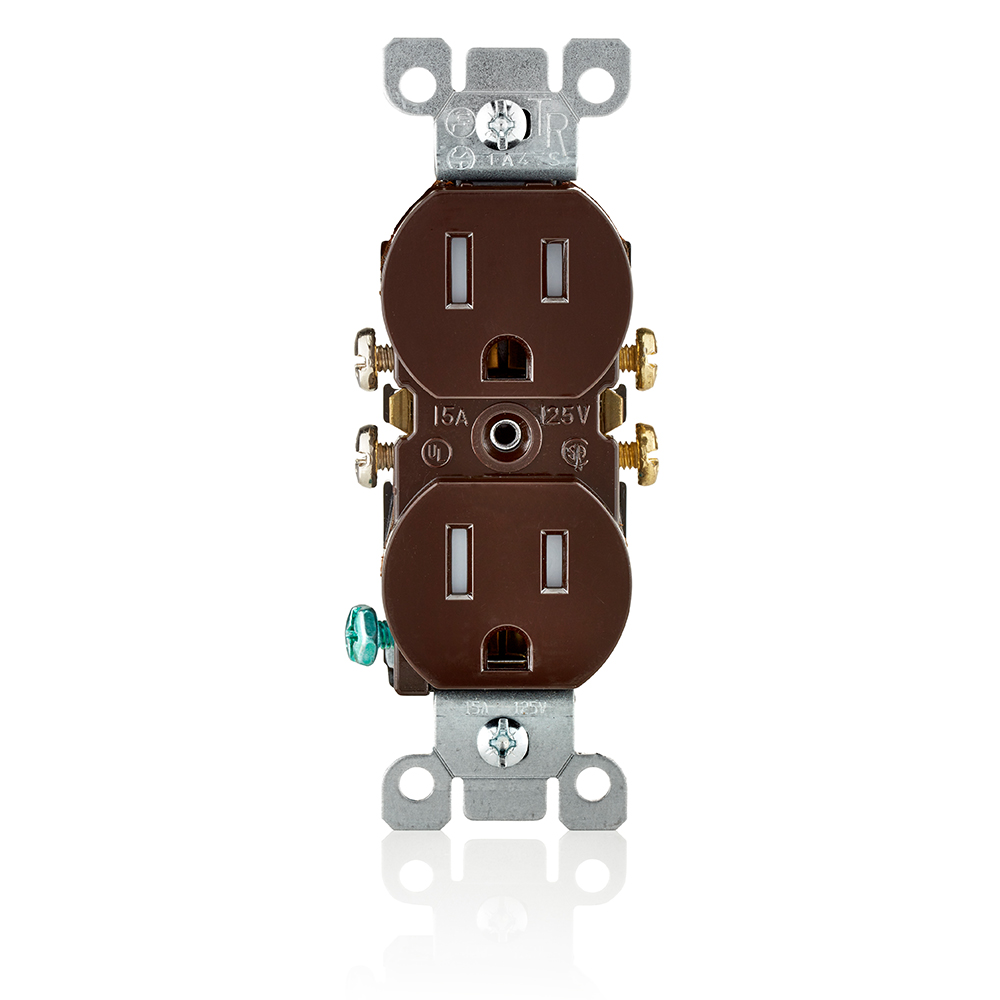

Leviton T5320 15A Tamper-resistant Duplex Receptacle Brown

Product Description

The LEVITON T5320 is a 15 amp, 125 volt tamper-resistant duplex receptacle designed for residential and light commercial electrical installations. Rated NEMA 5-15R with a 2-pole, 3-wire straight blade configuration, it provides grounded outlet protection in a brown finish. The built-in tamper-resistant shutters block foreign object insertion while still accepting standard plugs. Quickwire push-in side wiring simplifies rough-in and trim-out, reducing installation time on multi-outlet runs. UL and CSA listed and fully NEC compliant, this receptacle is suited for any application where tamper-resistant outlets are required by code.

The T5320 is used in residential new construction and renovation projects where the NEC mandates tamper-resistant receptacles, including all areas of a dwelling unit. The brown finish makes it appropriate for installations where matching outlet and cover plate color to darker wall finishes is required. Licensed electricians install this device as a direct replacement for standard duplex receptacles or as part of new rough-in work in single-family homes, apartments, hotels, and light commercial spaces subject to residential wiring codes.

Key Features

• Tamper-resistant shutters meet NEC requirements for receptacle protection in dwelling units
• Quickwire push-in side terminals speed installation on multi-outlet circuits
• NEMA 5-15R straight blade grounding configuration for compatibility with standard 15 amp plugs
• UL and CSA listed for North American installations
• Brown finish for coordination with darker wall plates and decor
• 2-year limited warranty

Compatibility

Designed as an OEM-style replacement for standard 15 amp duplex receptacles in residential and light commercial wiring applications using NEMA 5-15R straight blade grounding configurations.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the NEC and applicable local electrical codes. De-energize the circuit at the breaker panel and verify absence of voltage with a meter before wiring. The Quickwire push-in terminals accept solid or stranded conductors; follow the strip gauge marked on the device body. Secure the receptacle in a listed electrical box rated for the wall finish depth.

Technical Specifications

• Amperage: 15 amps
• Voltage: 125 volts
• NEMA Configuration: 5-15R
• Poles: 2
• Wires: 3
• Wiring Method: Quickwire Push-In Side
• Blade Type: Straight Blade
• Grounding: Yes
• Tamper-Resistant: Yes
• Color: Brown
• Certifications: UL, CSA, NEC Compliant
• Warranty: 2 Year Limited
• UPC: 078477381885

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: T5320
