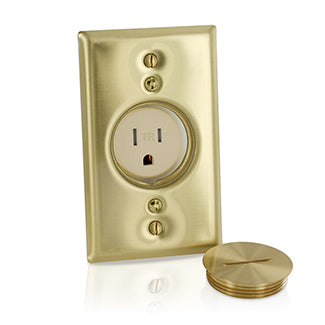

Leviton T5250-B Duplex Single Tamper Resistant Display Receptacle 125 VAC 15 A 2 Poles 3 Wires

Product Description

The Leviton T5250-B is a duplex single tamper-resistant display receptacle designed for use in commercial applications. This device operates at 125 VAC and supports a maximum of 15 A. It includes a brass wallplate and screw cap, enhancing both safety and usability. The receptacle is constructed to meet NEMA 5-15R standards and features back and side wire terminals for flexible installation.

• Includes brass triple wipe line contacts.
• Quick installation to a standard one-gang box.
• Tamper-resistant design for added security.

Product Highlights

This receptacle is ideal for applications requiring a dedicated circuit, such as display cases in educational institutions and commercial settings. The design ensures resistance to unauthorized access and physical damage.

Product Information

Standard Information

• Manufacturer: Leviton
• MPN: T5250-B

Technical Specifications

• Voltage Rating: 125 VAC
• Amperage Rating: 15 A
• Number of Poles: 2
• Number of Wires: 3
• Dimensions: 4.5 in H x 2.75 in W x 1.4 in D
• Temperature Rating: -40 to 75 deg C
• Material: Nylon
• NEMA Rating: NEMA 5-15R
