Leviton T5020-W 20-Amp 125-Volt NEMA 5-20R Single Receptacle

Brand: LEVITON
SKU: T5020-W
Availability: In Stock

Ships same day if ordered by 12 pm
$24.10
$24.10
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

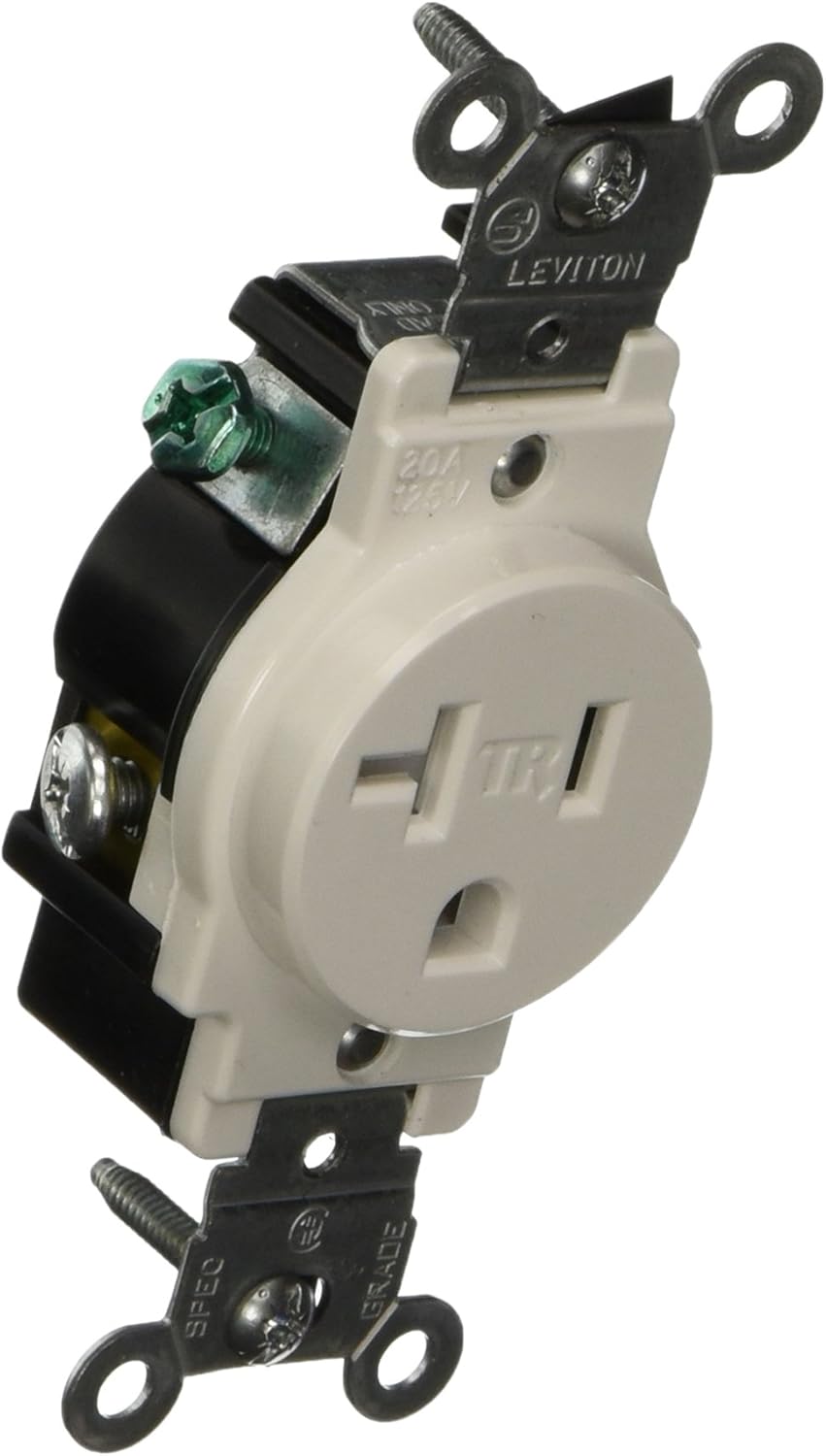

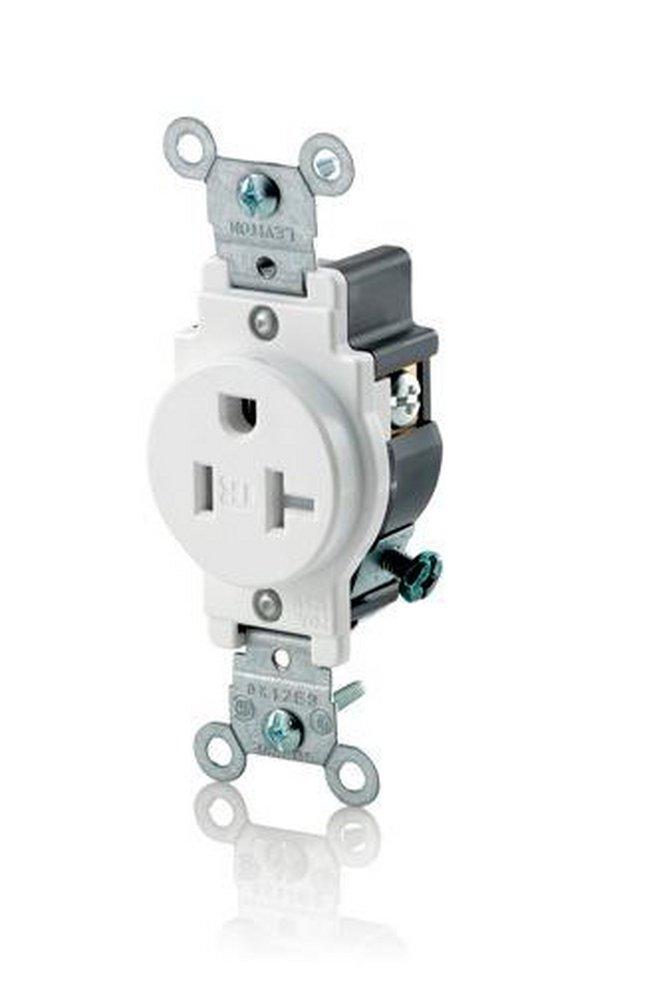

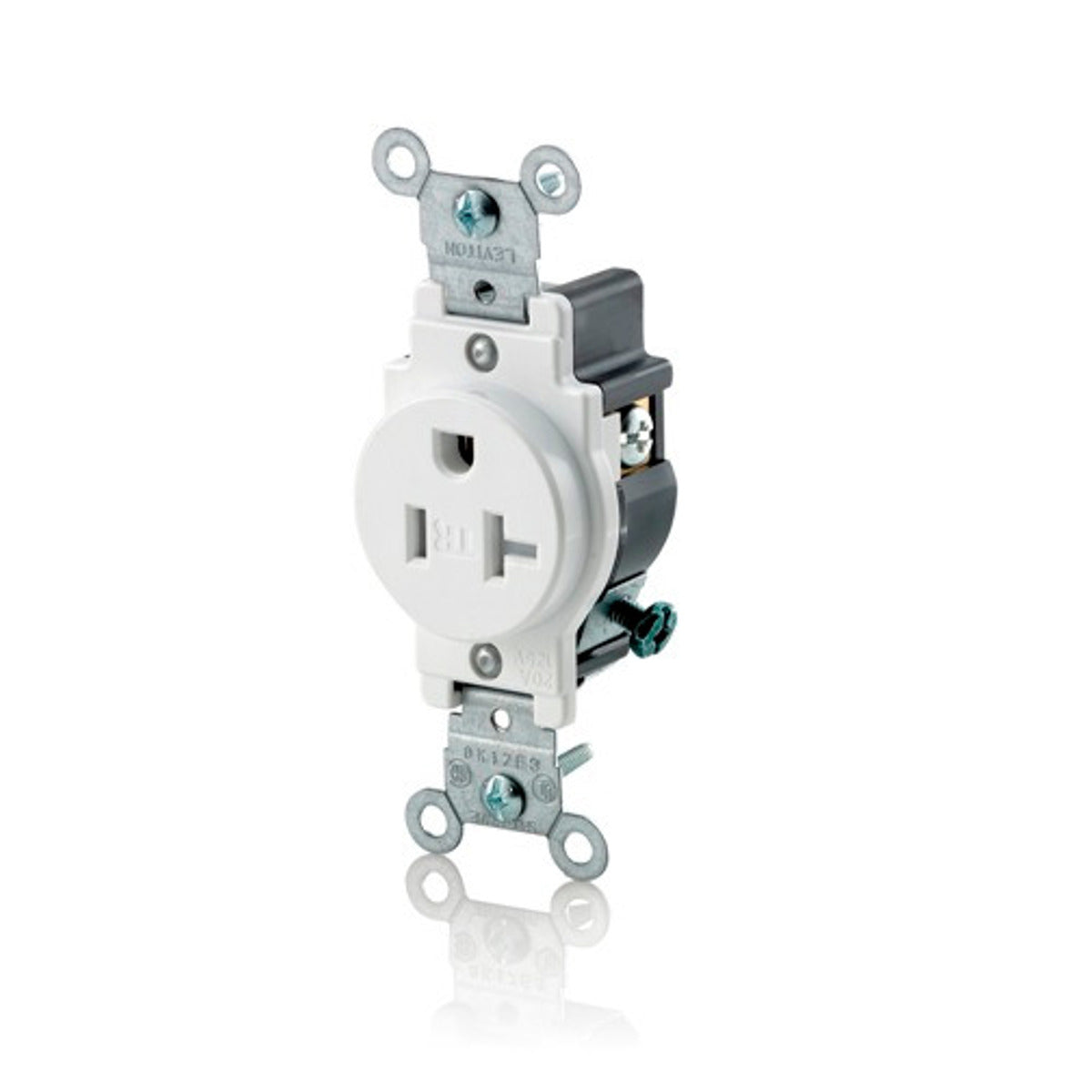

The Leviton T5020-W is a 20-Amp 125-Volt NEMA 5-20R single receptacle. This 2-pole, 3-wire receptacle features a narrow body. It is suitable for commercial and institutional applications. The receptacle is tamper-resistant and self-grounding. It offers a shallow design for maximum wiring room in the box.

  • Tamper-resistant
  • Self-grounding
  • Narrow body

Product Highlights

This receptacle is manufactured to withstand the demands of commercial and institutional applications.

Product Information

Standard Information

  • Brand: LEVITON
  • Manufacturer Part Number: T5020-W
  • Country of Origin: Mexico
Technical Specifications
Color
White
Finish
White
Voltage
125 VAC
Wattage
5020 watts
Material
Copper
Certification
NEMA
Amperage
20 A
Poles
2
Wires
3
Receptacle Type
Straight Blade
Grounding
Self-Grounding
Tamper Resistant
Yes
Configuration
NEMA 5-20R
Body Style
Narrow Body
Grade
Commercial
Horsepower
1 hp
Enclosure
NEMA WD-6
Temperature Rating
-40 to 60 deg C
Terminal Type
Back/Side Wire
Operating Temperature
-40 C to 60 C
Device Type
Single Receptacle Outlet
Termination
Back and Side Wire
Clamp Nuts
Zinc-Plated Steel
Ground Clips
Brass-Plated
Line Contacts
Brass Triple-Wipe
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
Strap Material
Zinc-Plated Steel
Grounding Screw
Brass 8-32
Terminal Screws
Brass 10-32
Terminal Accom.
14-10 AWG
Current Limiting
Full Rated Current
Temperature Rise
Max 30C after 250 cycles OL at 200 percent rated current
Dielectric Voltage
Withstands 2000V per UL498
Screw Terminal Torque
14-18 in-lbs
Number of Poles
2
Number of Wires
3
NEMA Rating
NEMA 5-20R
Face Material
Thermoplastic Nylon
Application
Commercial
Type
Duplex Self-Grounding Single Tamper Resistant
UNSPSC Code
39121400
Country of Origin
MX
Poles [Features]
2
Ground [Features]
Grounding
Voltage [Features]
125v
Amperage [Features]
20
Features [Features]
Tamper Resistant
NEMA Rating [Features]
5-20R
Terminations [Features]
Back, Side
Number Of Poles
2
Number Of Wires
3
Wire Count
3
Termination Type
Back Wire,Side Wire
NEMA
5-20R
At Rated Voltage
1 HP
ANSI
C-73
CSA C22.2 No. 42
File 152105
NOM
057
UL498
File E13399
Power Plug Type
Type A - 2 pin (North American)
Connector Type
Plug In
Smart Home Compatibility
Not Smart Home Compatible
Total Power Outlets
1
Specification Met
NEMA
Body Material
Thermoplastic Nylon
Feature
Tamper-Resistant|Smooth Face
Sub Brand
TAMPER RESISTANT COMMERCIAL R
Dielectric
2000 V
Wire
3
Product ID
Ratings are permanently marked on device
Mount Type
Flush
Housing Material
Thermoplastic Nylon
Receptacle Type [Specifications]
Single
Polarized
Yes
Standards
ANSI, CSA Certified, UL Listed
Cover Type
No Cover
Description
Smooth Face
Overall Depth
1.06 in
Wiring Method
Back, Side
Grounding Screw [Specifications]
Brass 8-32
Face Plate Width
1.31 in
Face Plate Height
2.38 in
Horsepower Rating
1 hp
Maximum Wire Size
10 AWG
Minimum Wire Size
14 AWG
Number of Outlets
1
NEMA Configuration
5-20
NEMA Enclosure Rating
Not Rated
Resistance Properties
Tamper Resistant
Wire Connection Type
Screw Terminals
Connection Orientation
Straight
Application Environment
Commercial
Number of Poles & Wires
2 Pole / 3 Wire
Key Resistance Properties
Tamper Resistant
Includes Mounting Hardware
Yes
Amps - Plugs and Receptacles
20 A
Item - Plugs and Receptacles
Single Receptacle Outlet
Color - Plugs and Receptacles
White
Maximum Operating Temperature
60 Degrees C
Minimum Operating Temperature
-40 Degrees C
NEMA Receptacle Configuration
5-20R
Primary Resistance Properties
Tamper Resistant - Tamper Resistant - 20 A
Voltage - Plugs and Receptacles
125VAC
Additional Electrical Protection
Standard Protection
Hazardous Location Specification
Not Applicable
Additional Electrical Protections
Standard Protection
Mount Hole Center-to-Center Height
3.28 in
Outlet Type - Plugs and Receptacles
Single
Wiring Method - Plugs and Receptacles
Back and Side
Manufacturer Item Status
Active
Manufacturer Name
Leviton
UPC
078477381809
GTIN
00078477381809
Alternative Part Number
9869876
Amperage Rating UOM
A
Country
USA|Canada
Horsepower UOM
hp
IDEA Index ID
9869876
Temperature Rating UOM
deg C
Voltage Rating UOM
VAC
Socket Type
3 Pin 20 A
Lamp Included
No
Commodity Code
5120
Stripped Catalog Number
T5020W
Catalog Description (MFR)
TO BE CHANGED - receptacle, tamper resistant, single, 2-pole 3-wire, n cof white, back and side wired. commercial speck grade triple-combination-head screws.
Invoice Description (MFR)
5-20R SINLGE RECEP TR WHITE
Safety Data Sheet (SDS) Flag
Y
Buy American Act (BAA) Compliant
C
American Recovery and Reinvestment Act (ARRA) Compliant
C
Item Type
Duplex Receptacle
Cross Reference Products
TR5351W
