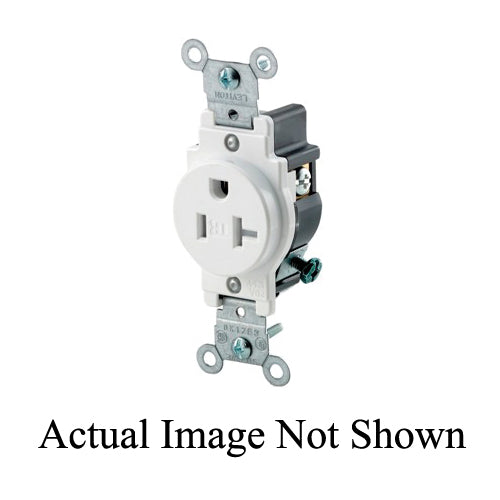

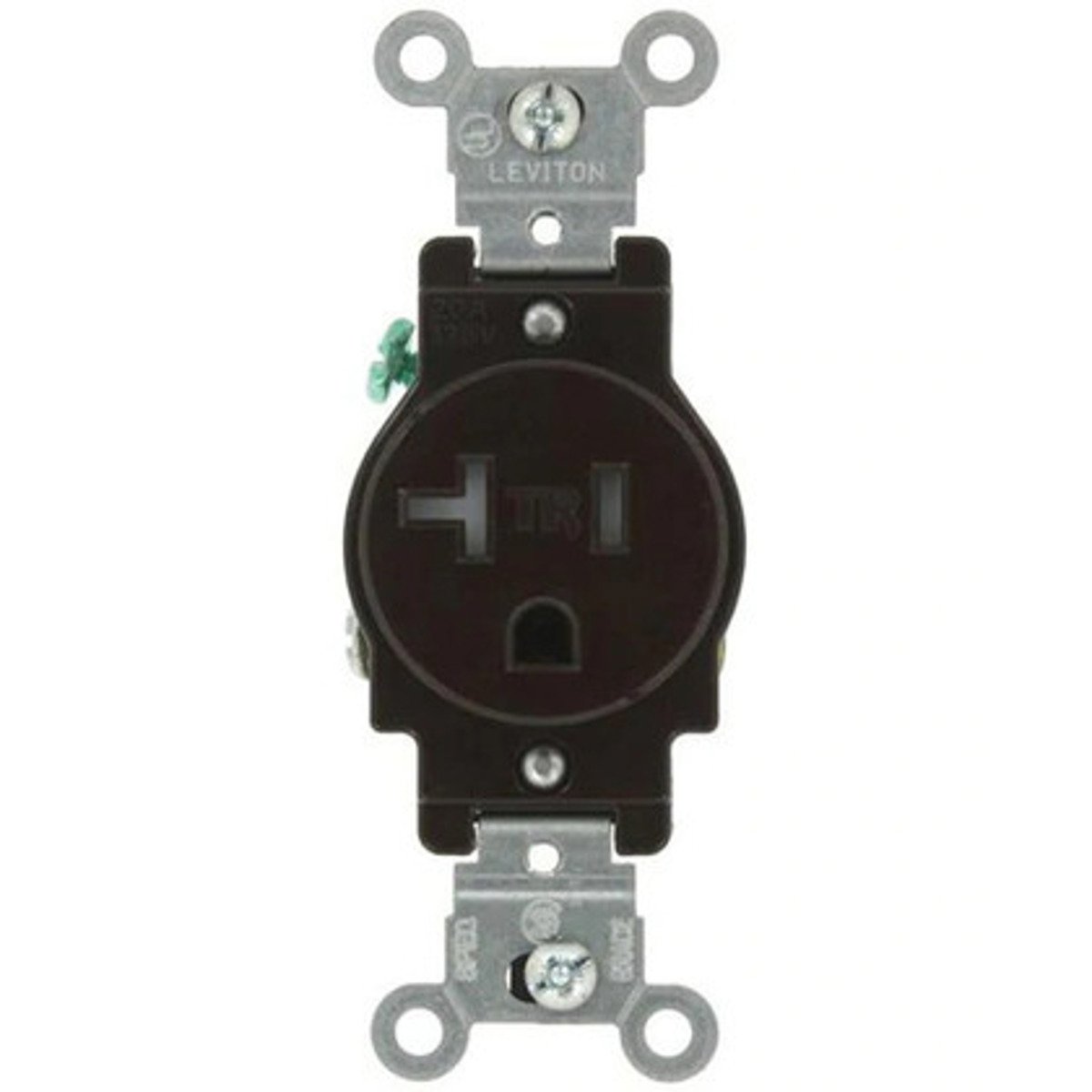

Leviton T5020-E 20 Amp 125 Volt NEMA 5-20R Narrow Body Receptacle

Product Description

Leviton T5020-E is a 20 amp, 125 volt receptacle designed for commercial use. This straight blade receptacle is narrow body and tamper-resistant. It ensures safety in environments like schools, offices, and medical facilities.

• Voltage Rating: 125 VAC
• Amperage Rating: 20 A
• Material: Thermoplastic Nylon

Product Highlights

This receptacle features back and side wiring for flexibility during installation and enhanced safety with tamper resistance. It's suitable for a variety of applications, including commercial and industrial settings.

Product Information

Standard Information

• Manufacturer: Leviton
• Catalog Number: T5020-E

Technical Specifications

• Voltage Rating: 125 VAC
• Amperage Rating: 20 A
• NEMA Rating: 5-20R
• Number of Poles: 2
• Number of Wires: 3
• Dimensions: 4.06 in H x 1.31 in W x 1.06 in D
• Temperature Rating: -40 to 60 degrees C
• Grade: Commercial
• Standards: UL 498, CSA C22.2 No. 42, NEMA WD-6
