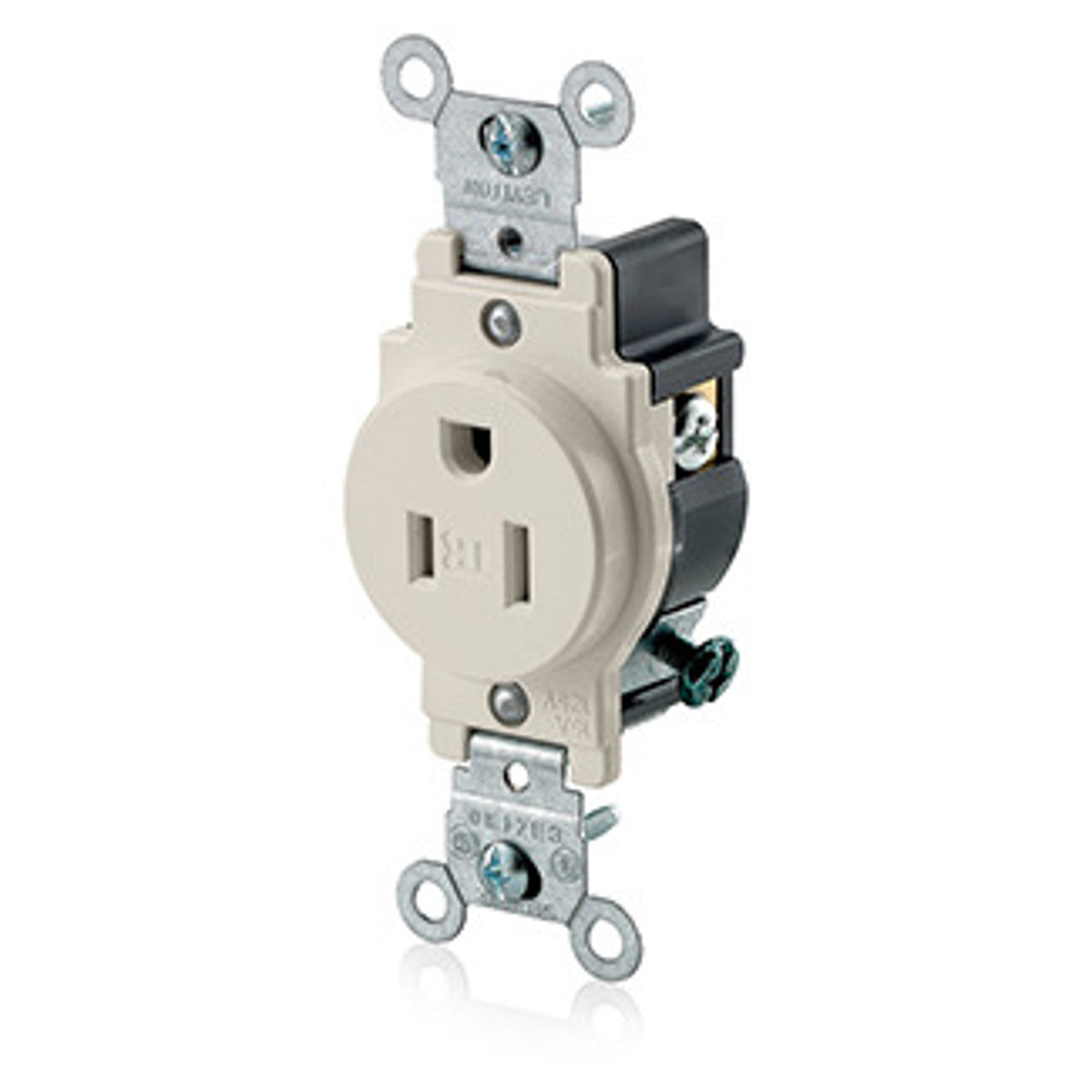

Leviton T5015-T RECEPTACLE BL STR 125VAC 15A 2 3 1/2HP

Product Description

The Leviton T5015-T is a single tamper-resistant straight blade receptacle. This device is designed for commercial applications and operates at 125 VAC with a capacity of 15 A. It includes two poles and three wires, making it ideal for a variety of electrical tasks.

• Manufactured for commercial and institutional use
• Features a thermoplastic nylon face for durability
• Includes #8-32 brass grounding screws

Product Highlights

This receptacle offers self-grounding capability and operates effectively in temperatures ranging from -40 to 60 degrees Celsius. Its narrow body design allows for greater wiring space in standard wall boxes.

Product Information

Standard Information

• Brand: Leviton
• Color: Light Almond

Technical Specifications

• Voltage Rating: 125 VAC
• Amperage Rating: 15 A
• Number of Poles: 2
• Number of Wires: 3
• Horsepower: 1/2 hp
• Temperature Rating: -40 to 60 degrees Celsius
• NEMA Rating: 5-15R
• Dimensions: 46 inches H x 1.31 inches W x 16 inches D
