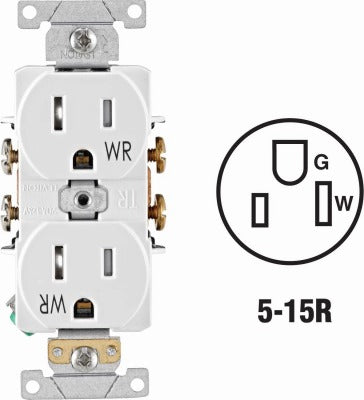

Leviton S12-TWR15-00W Wr Tamper Resistant Outlet 15A White

Product Description

The Leviton S12-TWR15-00W is a commercial-grade, tamper-resistant and weather-resistant nylon duplex receptacle rated at 15 amps. It is designed for use in damp and wet locations where NEC Section 406.8 requires weather-resistant protection. A built-in shutter mechanism blocks contact slots unless a two-prong plug is inserted simultaneously, preventing accidental insertion of foreign objects. The shallow-body design maximizes wiring room inside the box. Licensed electricians install this receptacle in commercial and residential applications wherever tamper and weather resistance are required by code.

This receptacle is suited for exterior walls, covered patios, pool equipment areas, kitchens, bathrooms, and any indoor or outdoor location subject to moisture exposure. The side-wired large-head terminal screws and back-wiring clamps accept up to No. 10 copper wire, making it compatible with standard branch circuit wiring. Break-off tabs allow fast two-circuit conversion. The package contains 10 units, making it practical for multi-outlet rough-in jobs or service van restocking.

Key Features

• Tamper-resistant shutter mechanism blocks contact access without a two-prong plug inserted
• Weather-resistant nylon body rated for damp and wet locations per NEC Section 406.8
• Shallow design maximizes wiring space inside standard electrical boxes
• Side-wired terminals and back-wiring clamps accept up to No. 10 copper wire
• Triple wire power contacts improve conductivity and plug retention
• Heavy-gauge rust-resistant steel mounting strap with captive mounting screws and break-off plaster ears for flush alignment

Compatibility

Designed as a commercial-grade tamper and weather-resistant duplex receptacle for standard 15-amp, 120-volt branch circuits. Per NEC Section 406.8, a listed weatherproof cover must be used when installed in damp or wet locations.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the National Electrical Code and applicable local codes. De-energize the circuit at the breaker panel and verify zero voltage with a meter before wiring. Use the captive mounting screws and break-off plaster ears to achieve flush alignment with the wall surface. When installing in wet or damp locations, a listed in-use weatherproof cover is required per NEC Section 406.8.
