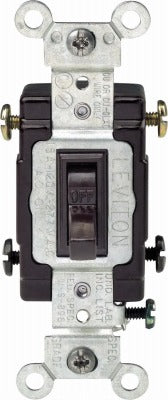

Leviton S09-CS220-02S 2-pole Toggle Switch 20A 120/277V

Product Description

The LEVITON MFG CO S09-CS220-02S is a commercial specification grade, 2-pole grounded toggle switch rated for 20 amps at 120/277 volts. It is built for demanding commercial and industrial electrical installations where long service life and reliable switching performance are required. The switch features large silver-cadmium oxide contacts engineered for extended cycle life. Captive mounting screws speed up installation, and large-head terminal screws are backed out and staked to simplify side wiring of up to No. 10 copper wire. Licensed electricians working on commercial branch circuits are the primary installers of this device.

This toggle switch is suited for commercial and light industrial applications where 20-amp, 120/277-volt switching capacity is needed. It carries a 1 HP rating at 120 volts and a 2 HP rating at 240 volts, making it appropriate for motor-load circuits in addition to standard lighting and general-purpose branch circuits. The heavy-gauge, rust-resistant steel mounting strap and break-off plaster ears allow for precise alignment in standard electrical boxes across a range of wall and ceiling box configurations. The package contains 6 units sold as a single package quantity.

Key Features

• Commercial specification grade construction for heavy-duty branch circuit use
• Large silver-cadmium oxide contacts for extended contact life and reliable switching
• Captive mounting screws for faster, more secure installation
• Large-head terminal screws backed out and staked for side wiring of up to No. 10 copper wire
• Heavy-gauge rust-resistant steel mounting strap with break-off plaster ears for accurate alignment
• UL listed; backed by a limited 10-year warranty

Compatibility

Designed as a commercial specification grade replacement or new-installation 2-pole grounded toggle switch for standard single-gang electrical boxes in 120/277-volt commercial branch circuit applications.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. De-energize the circuit at the panel and verify zero voltage with a meter before wiring. The switch accommodates side wiring of up to No. 10 copper wire using the large-head terminal screws. Do not exceed the rated amperage or voltage for the circuit being served.
