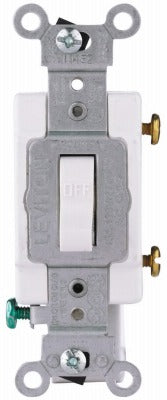

Leviton S08-CS120-2WS Single Pole Toggle Switch 6 Pack

Product Description

The LEVITON MFG CO S08-CS120-2WS is a single pole toggle switch built to commercial specification grade standards for controlling one lighting fixture from a single location. Designed for heavy-duty environments, it features large silver-cadmium oxide contacts for extended contact life and captive mounting screws that speed up installation. The heavy-gauge, rust-resistant steel mounting strap and break-off plaster ears allow precise alignment during rough-in. Large-head terminal screws are backed out and staked to accept up to No. 10 copper wire for fast side wiring. This package contains 6 switches. UL listed and backed by a limited 10-year warranty.

This switch is suited for commercial and institutional applications where long service life and reliable performance are required. Typical installations include municipal facilities, government buildings, hospitals, schools, office buildings, malls, and department stores. The specification grade construction meets the demands of high-use environments where standard residential-grade devices are not appropriate. Licensed electricians and facility maintenance professionals typically install this switch in standard single-gang wall boxes as part of branch circuit lighting control.

Key Features

• Commercial specification grade construction for high-use institutional and commercial environments
• Large silver-cadmium oxide contacts for extended switch life
• Captive mounting screws for faster installation and reduced hardware loss
• Large-head terminal screws backed out and staked for side wiring up to No. 10 copper wire
• Heavy-gauge rust-resistant steel mounting strap with break-off plaster ears for best alignment
• UL listed with a limited 10-year warranty

Compatibility

Designed as an OEM-style specification grade replacement or new-installation single pole toggle switch for standard single-gang commercial and institutional wiring applications.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. De-energize the circuit at the breaker panel and verify the circuit is dead with a non-contact voltage tester before beginning work. The switch is rated for side wiring with copper conductors up to No. 10. Do not use with aluminum wiring unless the device is specifically rated for that application.
