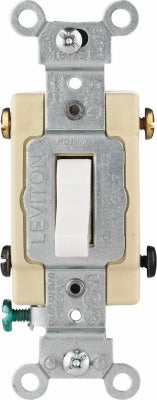

Leviton S02-CS415-2WS 4-way Toggle Switch 15A 120/277V

Product Description

The LEVITON MFG CO S02-CS415-2WS is a commercial specification grade 4-way toggle switch designed for long-service-life applications in professional electrical installations. Rated at 15 amps and 120/277 volts, it handles both standard residential voltage and the 277-volt single-phase circuits common in commercial lighting systems. Large silver-cadmium oxide contacts are engineered for durability across high-cycle environments. Captive mounting screws and large-head terminal screws that are backed out and staked from the factory speed up rough-in and trim-out for electricians working under time pressure. Sold in a package of 10 units.

This switch is suited for commercial and light industrial lighting circuits where a 4-way switching configuration is required, allowing a single light or lighting zone to be controlled from three or more locations. The 277-volt rating makes it appropriate for commercial fluorescent and LED lighting branch circuits. It is also rated at 1/2 HP at 120 volts and 2 HP at 240 volts, covering motor-load applications where code-compliant switching is needed. Licensed electricians performing commercial tenant improvement, new construction, or renovation work are the primary installers.

Key Features

• 15A/120/277V rating supports both residential and commercial lighting circuits
• Large silver-cadmium oxide contacts for extended contact life in high-cycle applications
• Captive mounting screws for fast, tool-efficient installation
• Large-head terminal screws backed out and staked at the factory for rapid side wiring of up to No. 10 copper wire
• Heavy-gauge rust-resistant steel mounting strap with break-off plaster ears for precise wall alignment
• Limited 10-year warranty; UL listed and CSA approved

Compatibility

Designed as a commercial specification grade 4-way toggle switch for use in standard single-gang wiring device applications on 120-volt or 277-volt branch circuits requiring multi-location switching control.

Installation Notes

Installation must be performed by a qualified, licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize the branch circuit at the panel and verify absence of voltage with a meter before making any connections. Side wiring accommodates up to No. 10 copper wire; back-wiring is not indicated for this device. Confirm all wiring connections are secure and the device is properly grounded before restoring power.
