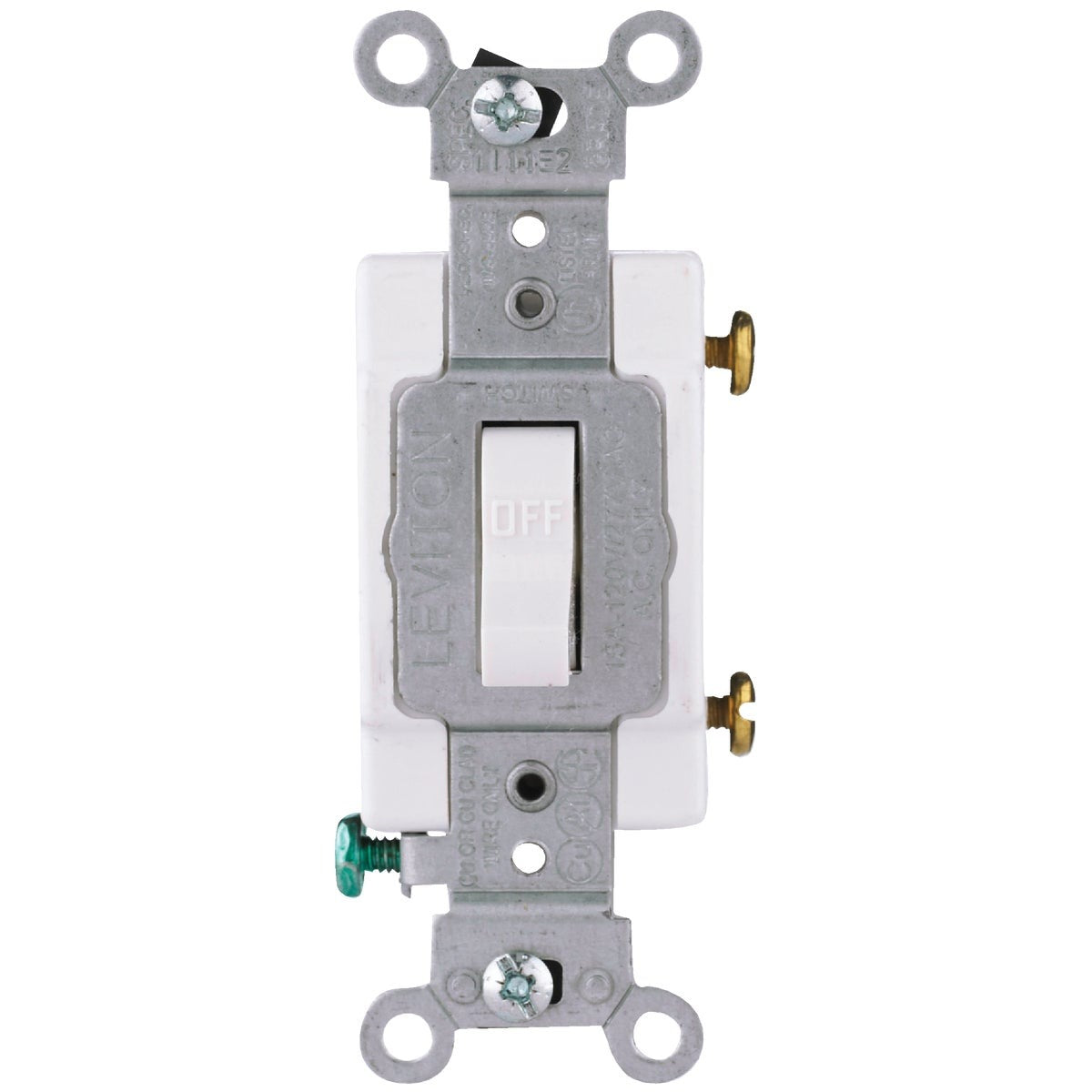

Leviton S02-CS115-2WS Single Pole Toggle Switch White

Product Description

The LEVITON S02-CS115-2WS is a single-pole, grounding toggle switch built to commercial specification grade standards. Designed for controlling one fixture from a single location, it features large silver-cadmium oxide contacts for extended contact life and heavy-gauge, rust-resistant steel mounting strap with break-off plaster ears for precise alignment in walls and panels. Captive mounting screws speed up installation, and large-head terminal screws are backed out and staked for fast side wiring with up to No. 10 copper wire. This switch is finished in white and carries a limited 10-year warranty along with UL listing.

This switch is suited for light-duty switching applications in commercial and institutional settings. Typical installations include municipal facilities, government buildings, shopping malls, department stores, hospitals, office buildings, and schools. It is also appropriate for standard residential single-location switching of lighting fixtures. Licensed electricians install this device as part of new construction or retrofit wiring projects where a reliable, long-life toggle switch is specified.

Key Features

• Commercial specification grade construction for demanding, high-use environments
• Silver-cadmium oxide contacts for extended service life
• Captive mounting screws for faster, cleaner installation
• Large-head terminal screws backed out and staked for side wiring up to No. 10 copper wire
• Heavy-gauge rust-resistant steel mounting strap with break-off plaster ears for best wall alignment
• UL listed and backed by a limited 10-year warranty

Compatibility

Designed as an OEM-style single-pole replacement or specification-grade toggle switch for standard single-gang switch boxes in commercial and residential wiring applications.

Installation Notes

Installation should be performed by a licensed electrician in accordance with NEC requirements and applicable local codes. Always shut off the circuit breaker and verify the circuit is de-energized with a non-contact voltage tester before removing the existing switch or making any wiring connections. The grounding terminal must be bonded to the equipment grounding conductor per NEC Article 404. Do not exceed the maximum conductor size rating at the terminal screws.
